RHT50 V2.1 04/12
4

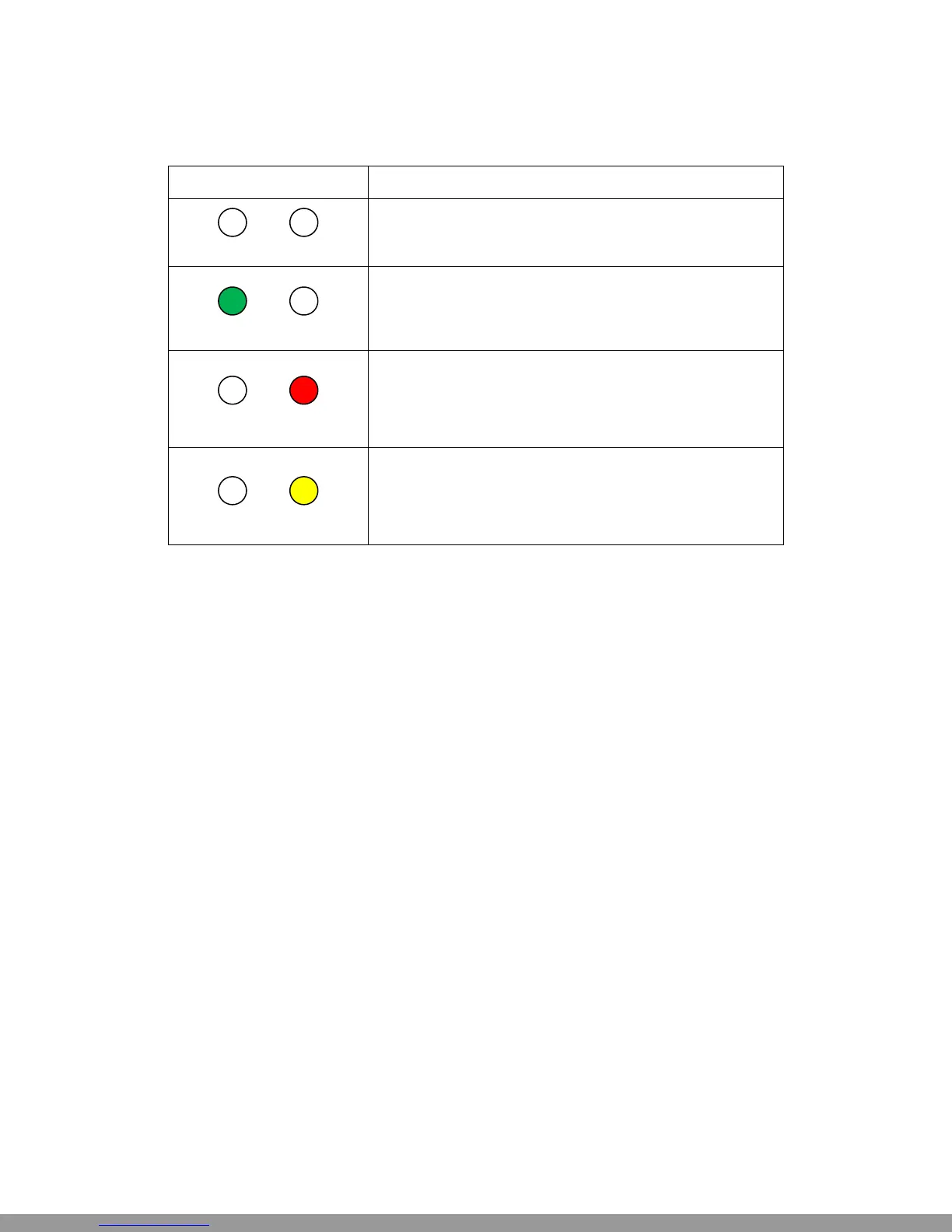

LED STATUS GUIDE
LEDs
Record Alarm
Meaning
No LED Logging not started
No LED Logging stopped *
No LED Battery discharged **
Green
Green flash (single): Logging indication *****
Green flashes (five) Reset
Green flashes (six) Start Logging
Red
Red double flash every 30 sec. Low battery ***
Red single flash Logging, alarm event ****
Red flashes (six) Stop logging *
Yellow
Yellow flash every 20 seconds Memory full *
• * Connect the datalogger to the PC and download data
• ** Replace the battery, data will not be lost
• *** Logging will stop, data will remain in memory
• **** Occurs if an alarm is exceeded
• ***** Flash cycle time is set from the software
