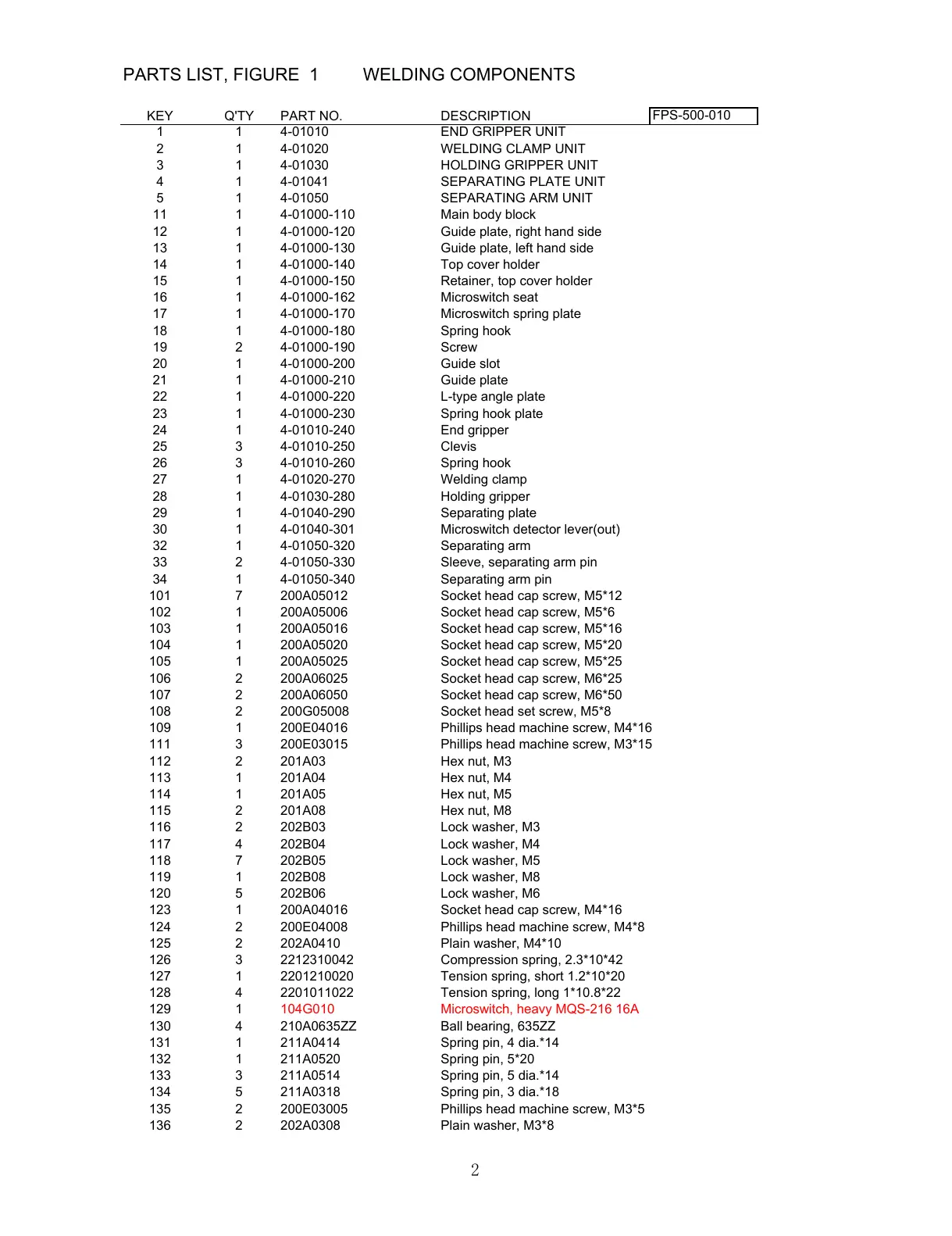

PARTS LIST, FIGURE 1 WELDING COMPONENTS
KEY Q'TY PART NO. DESCRIPTION
FPS-500-010
1 1 4-01010 END GRIPPER UNI
T
2 1 4-01020 WELDING CLAMP UNIT
3 1 4-01030 HOLDING GRIPPER UNI
T
4 1 4-01041 SEPARATING PLATE UNI
T
5 1 4-01050 SEPARATING ARM UNI
T
11 1 4-01000-110 Main body block
12 1 4-01000-120 Guide plate, right hand side
13 1 4-01000-130 Guide plate, left hand side
14 1 4-01000-140 Top cover holder
15 1 4-01000-150 Retainer, top cover holder
16 1 4-01000-162 Microswitch seat
17 1 4-01000-170 Microswitch spring plate
18 1 4-01000-180 Spring hook
19 2 4-01000-190 Screw
20 1 4-01000-200 Guide slot
21 1 4-01000-210 Guide plate
22 1 4-01000-220 L-type angle plate
23 1 4-01000-230 Spring hook plate
24 1 4-01010-240 End gripper
25 3 4-01010-250 Clevis
26 3 4-01010-260 Spring hook
27 1 4-01020-270 Welding clamp
28 1 4-01030-280 Holding gripper
29 1 4-01040-290 Separating plate
30 1 4-01040-301 Microswitch detector lever(out)
32 1 4-01050-320 Separating arm
33 2 4-01050-330 Sleeve, separating arm pin
34 1 4-01050-340 Separating arm pin
101 7 200A05012 Socket head cap screw, M5*12
102 1 200A05006 Socket head cap screw, M5*6
103 1 200A05016 Socket head cap screw, M5*16
104 1 200A05020 Socket head cap screw, M5*20
105 1 200A05025 Socket head cap screw, M5*25
106 2 200A06025 Socket head cap screw, M6*25
107 2 200A06050 Socket head cap screw, M6*50
108 2 200G05008 Socket head set screw, M5*8
109 1 200E04016 Phillips head machine screw, M4*16
111 3 200E03015 Phillips head machine screw, M3*15
112 2 201A03 Hex nut, M3
113 1 201A04 Hex nut, M4
114 1 201A05 Hex nut, M5
115 2 201A08 Hex nut, M8
116 2 202B03 Lock washer, M3
117 4 202B04 Lock washer, M4
118 7 202B05 Lock washer, M5
119 1 202B08 Lock washer, M8
120 5 202B06 Lock washer, M6
123 1 200A04016 Socket head cap screw, M4*16
124 2 200E04008 Phillips head machine screw, M4*8
125 2 202A0410 Plain washer, M4*10
126 3 2212310042 Compression spring, 2.3*10*42
127 1 2201210020 Tension spring, short 1.2*10*20
128 4 2201011022 Tension spring, long 1*10.8*22
129 1 104G010 Microswitch, heavy MQS-216 16A
130 4 210A0635ZZ Ball bearing, 635ZZ
131 1 211A0414 Spring pin, 4 dia.*14
132 1 211A0520 Spring pin, 5*20
133 3 211A0514 Spring pin, 5 dia.*14
134 5 211A0318 Spring pin, 3 dia.*18
135 2 200E03005 Phillips head machine screw, M3*5
136 2 202A0308 Plain washer, M3*8
2
