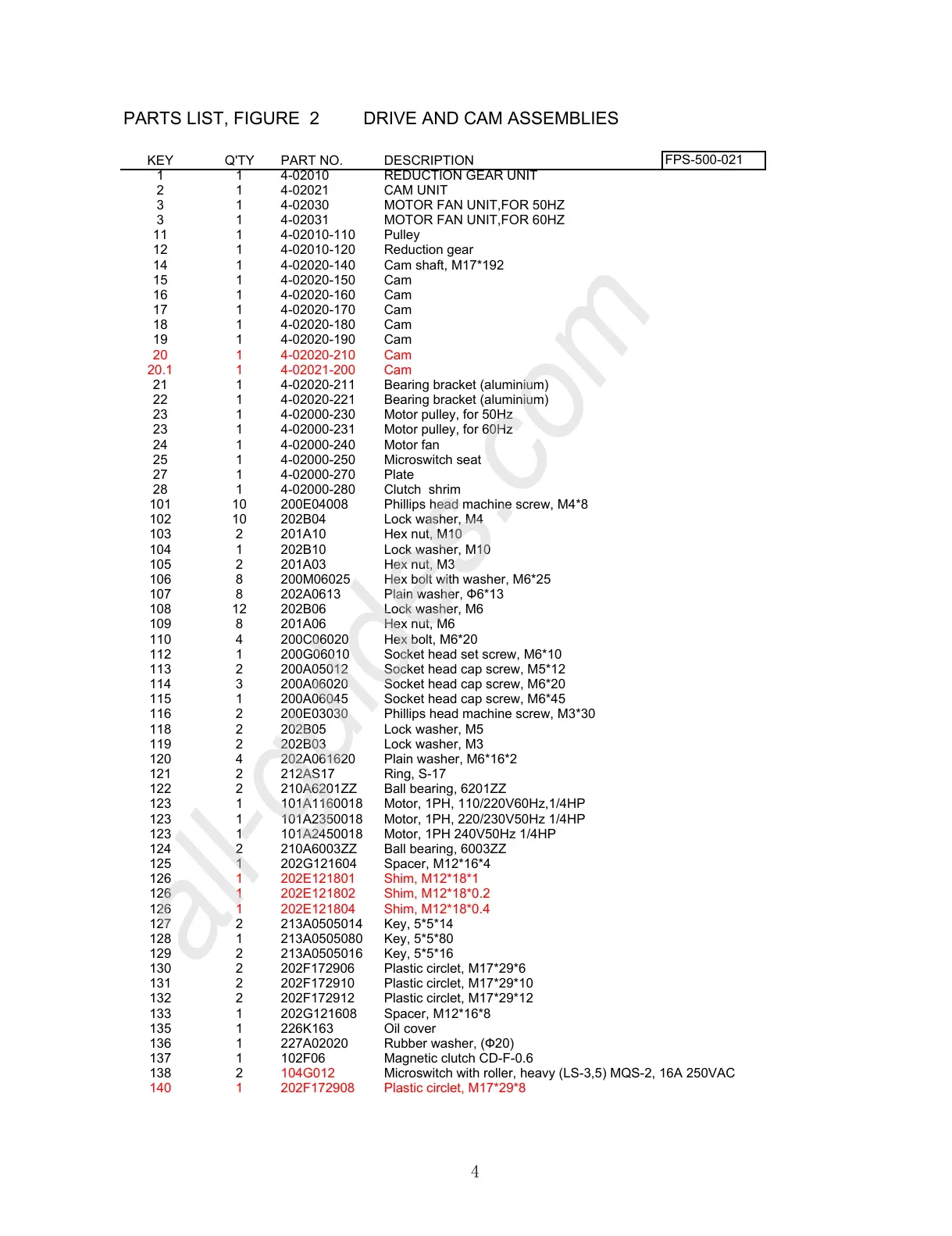

PARTS LIST, FIGURE 2 DRIVE AND CAM ASSEMBLIES
KEY Q'TY PART NO. DESCRIPTION
FPS-500-021
1 1 4-02010 REDUCTION GEAR UNI
T
2 1 4-02021 CAM UNI
T
3 1 4-02030 MOTOR FAN UNIT,FOR 50H
Z
3 1 4-02031 MOTOR FAN UNIT,FOR 60H
Z
11 1 4-02010-110 Pulley
12 1 4-02010-120 Reduction gear
14 1 4-02020-140 Cam shaft, M17*192
15 1 4-02020-150 Cam
16 1 4-02020-160 Cam
17 1 4-02020-170 Cam
18 1 4-02020-180 Cam
19 1 4-02020-190 Cam
20 1 4-02020-210 Cam
20.1 1 4-02021-200 Cam
21 1 4-02020-211 Bearing bracket (aluminium)
22 1 4-02020-221 Bearing bracket (aluminium)
23 1 4-02000-230 Motor pulley, for 50Hz
23 1 4-02000-231 Motor pulley, for 60Hz
24 1 4-02000-240 Motor fan
25 1 4-02000-250 Microswitch seat
27 1 4-02000-270 Plate
28 1 4-02000-280 Clutch shrim
101 10 200E04008 Phillips head machine screw, M4*8
102 10 202B04 Lock washer, M4
103 2 201A10 Hex nut, M10
104 1 202B10 Lock washer, M10
105 2 201A03 Hex nut, M3
106 8 200M06025 Hex bolt with washer, M6*25
107 8 202A0613 Plain washer, Ф6*13
108 12 202B06 Lock washer, M6
109 8 201A06 Hex nut, M6
110 4 200C06020 Hex bolt, M6*20
112 1 200G06010 Socket head set screw, M6*10
113 2 200A05012 Socket head cap screw, M5*12
114 3 200A06020 Socket head cap screw, M6*20
115 1 200A06045 Socket head cap screw, M6*45
116 2 200E03030 Phillips head machine screw, M3*30
118 2 202B05 Lock washer, M5
119 2 202B03 Lock washer, M3
120 4 202A061620 Plain washer, M6*16*2
121 2 212AS17 Ring, S-17
122 2 210A6201ZZ Ball bearing, 6201ZZ
123 1 101A1160018 Motor, 1PH, 110/220V60Hz,1/4HP
123 1 101A2350018 Motor, 1PH, 220/230V50Hz 1/4HP
123 1 101A2450018 Motor, 1PH 240V50Hz 1/4HP
124 2 210A6003ZZ Ball bearing, 6003ZZ
125 1 202G121604 Spacer, M12*16*4
126 1 202E121801 Shim, M12*18*1
126 1 202E121802 Shim, M12*18*0.2
126 1 202E121804 Shim, M12*18*0.4
127 2 213A0505014 Key, 5*5*14
128 1 213A0505080 Key, 5*5*80
129 2 213A0505016 Key, 5*5*16
130 2 202F172906 Plastic circlet, M17*29*6
131 2 202F172910 Plastic circlet, M17*29*10
132 2 202F172912 Plastic circlet, M17*29*12
133 1 202G121608 Spacer, M12*16*8
135 1 226K163 Oil cover
136 1 227A02020 Rubber washer, (Ф20)
137 1 102F06 Magnetic clutch CD-F-0.6
138 2 104G012 Microswitch with roller, heavy (LS-3,5) MQS-2, 16A 250VAC
140 1 202F172908 Plastic circlet, M17*29*8
4
