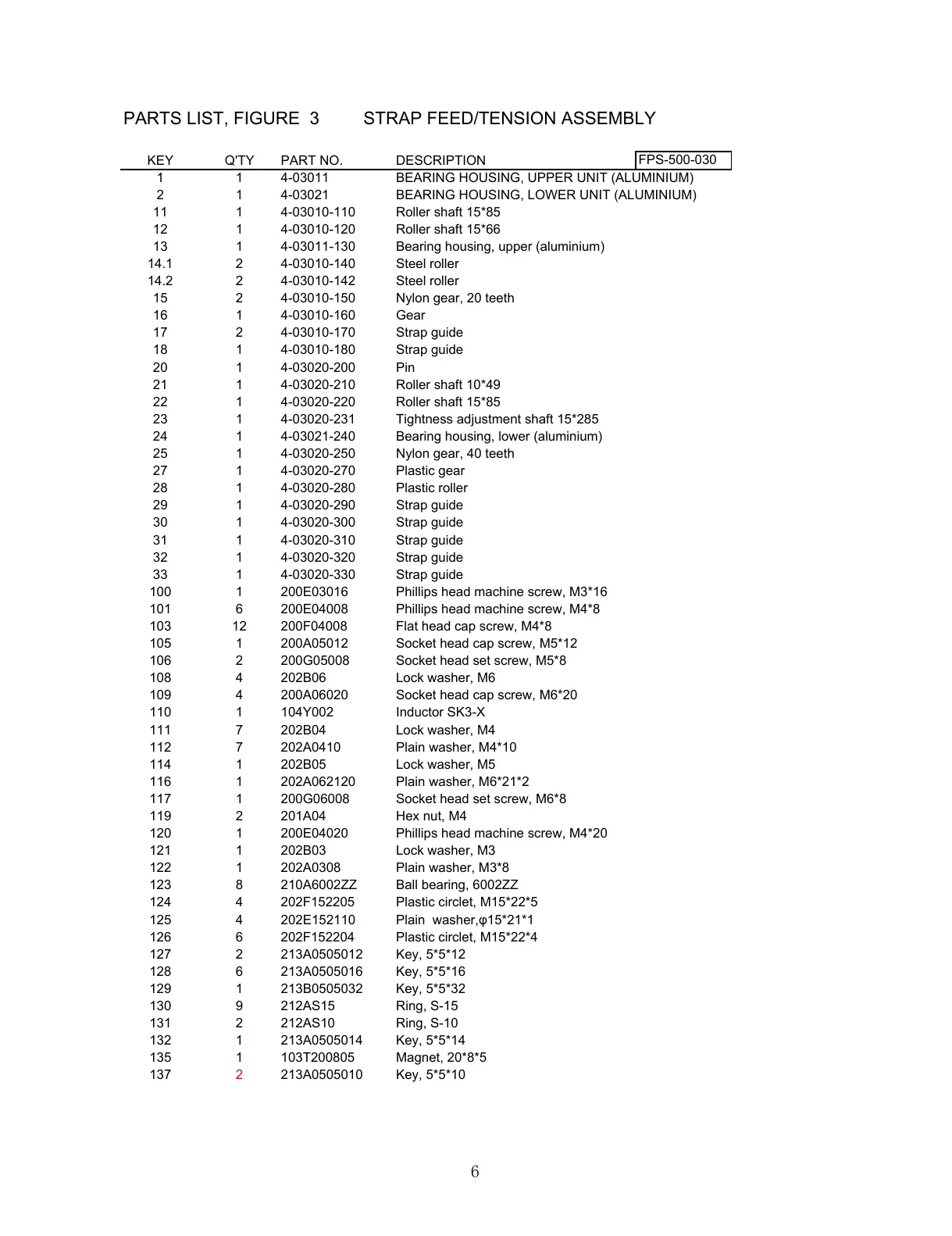

PARTS LIST, FIGURE 3 STRAP FEED/TENSION ASSEMBLY
KEY Q'TY PART NO. DESCRIPTION
FPS-500-030
1 1 4-03011 BEARING HOUSING, UPPER UNIT (ALUMINIUM)
2 1 4-03021 BEARING HOUSING, LOWER UNIT (ALUMINIUM)
11 1 4-03010-110 Roller shaft 15*85
12 1 4-03010-120 Roller shaft 15*66
13 1 4-03011-130 Bearing housing, upper (aluminium)
14.1 2 4-03010-140 Steel roller
14.2 2 4-03010-142 Steel roller
15 2 4-03010-150 Nylon gear, 20 teeth
16 1 4-03010-160 Gear
17 2 4-03010-170 Strap guide
18 1 4-03010-180 Strap guide
20 1 4-03020-200 Pin
21 1 4-03020-210 Roller shaft 10*49
22 1 4-03020-220 Roller shaft 15*85
23 1 4-03020-231 Tightness adjustment shaft 15*285
24 1 4-03021-240 Bearing housing, lower (aluminium)
25 1 4-03020-250 Nylon gear, 40 teeth
27 1 4-03020-270 Plastic gear
28 1 4-03020-280 Plastic roller
29 1 4-03020-290 Strap guide
30 1 4-03020-300 Strap guide
31 1 4-03020-310 Strap guide
32 1 4-03020-320 Strap guide
33 1 4-03020-330 Strap guide
100 1 200E03016 Phillips head machine screw, M3*16
101 6 200E04008 Phillips head machine screw, M4*8
103 12 200F04008 Flat head cap screw, M4*8
105 1 200A05012 Socket head cap screw, M5*12
106 2 200G05008 Socket head set screw, M5*8
108 4 202B06 Lock washer, M6
109 4 200A06020 Socket head cap screw, M6*20
110 1 104Y002 Inductor SK3-X
111 7 202B04 Lock washer, M4
112 7 202A0410 Plain washer, M4*10
114 1 202B05 Lock washer, M5
116 1 202A062120 Plain washer, M6*21*2
117 1 200G06008 Socket head set screw, M6*8
119 2 201A04 Hex nut, M4
120 1 200E04020 Phillips head machine screw, M4*20
121 1 202B03 Lock washer, M3
122 1 202A0308 Plain washer, M3*8
123 8 210A6002ZZ Ball bearing, 6002ZZ
124 4 202F152205 Plastic circlet, M15*22*5
125 4 202E152110 Plain washer,φ15*21*1
126 6 202F152204 Plastic circlet, M15*22*4
127 2 213A0505012 Key, 5*5*12
128 6 213A0505016 Key, 5*5*16
129 1 213B0505032 Key, 5*5*32
130 9 212AS15 Ring, S-15
131 2 212AS10 Ring, S-10
132 1 213A0505014 Key, 5*5*14
135 1 103T200805 Magnet, 20*8*5
137 2 213A0505010 Key, 5*5*10
6
