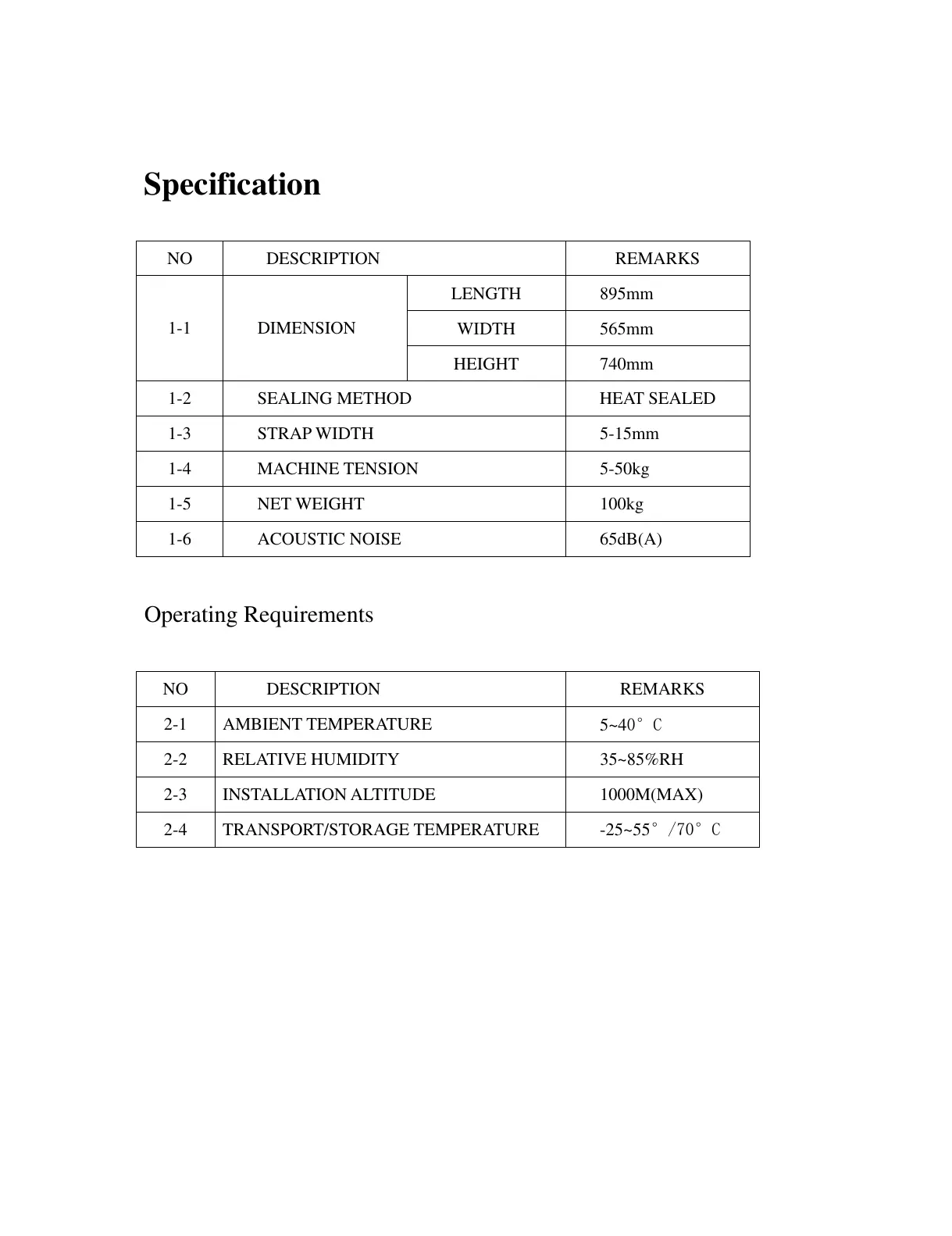

Specification
NO DESCRIPTION REMARKS
LENGTH 895mm
WIDTH 565mm
1-1 DIMENSION
HEIGHT 740mm
1-2 SEALING METHOD HEAT SEALED
1-3 STRAP WIDTH 5-15mm
1-4 MACHINE TENSION 5-50kg
1-5 NET WEIGHT 100kg
1-6 ACOUSTIC NOISE 65dB(A)
Operating Requirements
NO DESCRIPTION REMARKS
2-1 AMBIENT TEMPERATURE
5~40°C
2-2 RELATIVE HUMIDITY 35~85%RH
2-3 INSTALLATION ALTITUDE 1000M(MAX)
2-4 TRANSPORT/STORAGE TEMPERATURE
-25~55°/70°C
