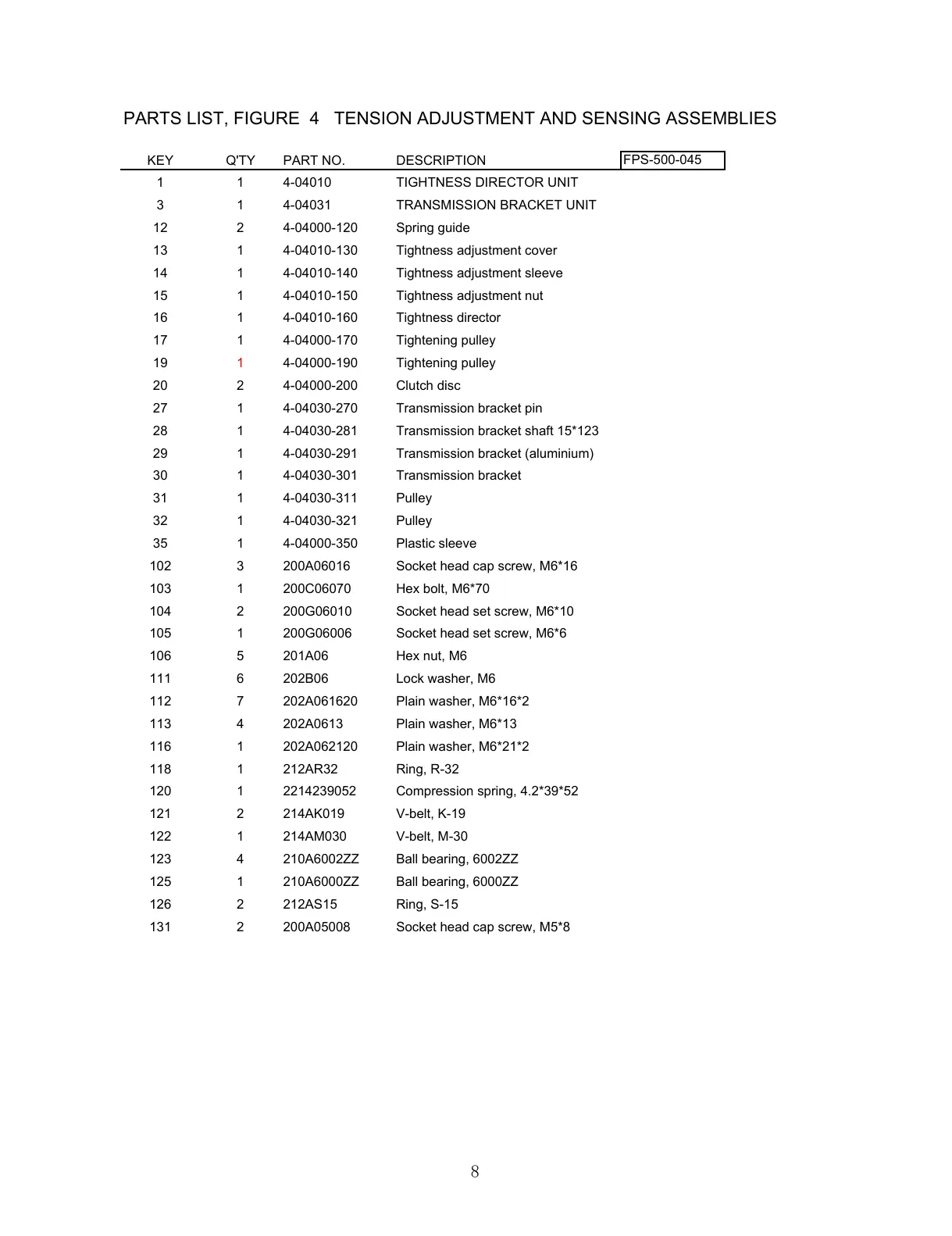

PARTS LIST, FIGURE 4 TENSION ADJUSTMENT AND SENSING ASSEMBLIES
KEY Q'TY PART NO. DESCRIPTION
FPS-500-045
1 1 4-04010 TIGHTNESS DIRECTOR UNIT
3 1 4-04031 TRANSMISSION BRACKET UNIT
12 2 4-04000-120 Spring guide
13 1 4-04010-130 Tightness adjustment cover
14 1 4-04010-140 Tightness adjustment sleeve
15 1 4-04010-150 Tightness adjustment nut
16 1 4-04010-160 Tightness director
17 1 4-04000-170 Tightening pulley
19 1 4-04000-190 Tightening pulley
20 2 4-04000-200 Clutch disc
27 1 4-04030-270 Transmission bracket pin
28 1 4-04030-281 Transmission bracket shaft 15*123
29 1 4-04030-291 Transmission bracket (aluminium)
30 1 4-04030-301 Transmission bracket
31 1 4-04030-311 Pulley
32 1 4-04030-321 Pulley
35 1 4-04000-350 Plastic sleeve
102 3 200A06016 Socket head cap screw, M6*16
103 1 200C06070 Hex bolt, M6*70
104 2 200G06010 Socket head set screw, M6*10
105 1 200G06006 Socket head set screw, M6*6
106 5 201A06 Hex nut, M6
111 6 202B06 Lock washer, M6
112 7 202A061620 Plain washer, M6*16*2
113 4 202A0613 Plain washer, M6*13
116 1 202A062120 Plain washer, M6*21*2
118 1 212AR32 Ring, R-32
120 1 2214239052 Compression spring, 4.2*39*52
121 2 214AK019 V-belt, K-19
122 1 214AM030 V-belt, M-30
123 4 210A6002ZZ Ball bearing, 6002ZZ
125 1 210A6000ZZ Ball bearing, 6000ZZ
126 2 212AS15 Ring, S-15
131 2 200A05008 Socket head cap screw, M5*8
8
