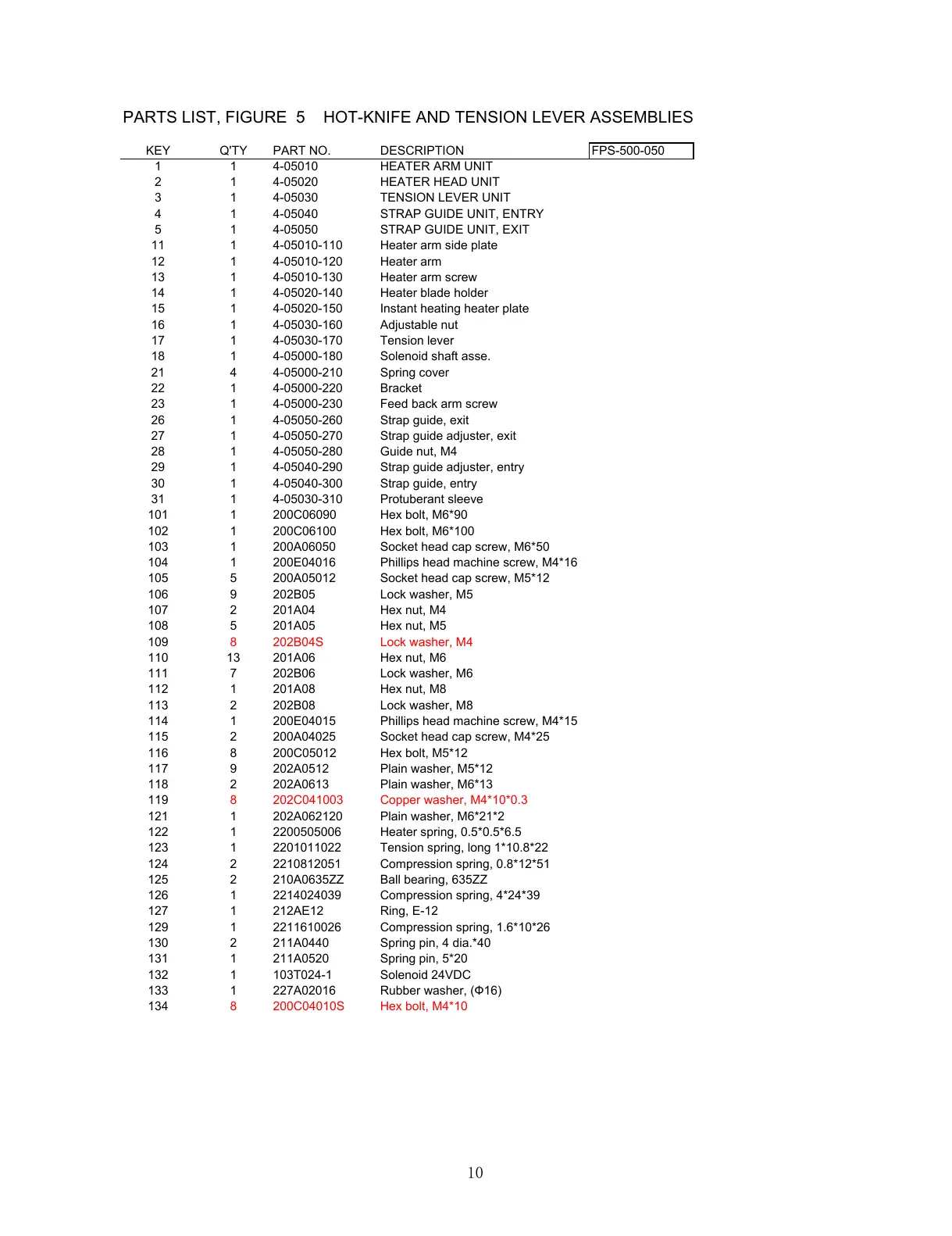

PARTS LIST, FIGURE 5 HOT-KNIFE AND TENSION LEVER ASSEMBLIES
KEY Q'TY PART NO. DESCRIPTION
FPS-500-050
1 1 4-05010 HEATER ARM UNIT
2 1 4-05020 HEATER HEAD UNIT
3 1 4-05030 TENSION LEVER UNIT
4 1 4-05040 STRAP GUIDE UNIT, ENTRY
5 1 4-05050 STRAP GUIDE UNIT, EXIT
11 1 4-05010-110 Heater arm side plate
12 1 4-05010-120 Heater arm
13 1 4-05010-130 Heater arm screw
14 1 4-05020-140 Heater blade holder
15 1 4-05020-150 Instant heating heater plate
16 1 4-05030-160 Adjustable nut
17 1 4-05030-170 Tension lever
18 1 4-05000-180 Solenoid shaft asse.
21 4 4-05000-210 Spring cover
22 1 4-05000-220 Bracket
23 1 4-05000-230 Feed back arm screw
26 1 4-05050-260 Strap guide, exit
27 1 4-05050-270 Strap guide adjuster, exit
28 1 4-05050-280 Guide nut, M4
29 1 4-05040-290 Strap guide adjuster, entry
30 1 4-05040-300 Strap guide, entry
31 1 4-05030-310 Protuberant sleeve
101 1 200C06090 Hex bolt, M6*90
102 1 200C06100 Hex bolt, M6*100
103 1 200A06050 Socket head cap screw, M6*50
104 1 200E04016 Phillips head machine screw, M4*16
105 5 200A05012 Socket head cap screw, M5*12
106 9 202B05 Lock washer, M5
107 2 201A04 Hex nut, M4
108 5 201A05 Hex nut, M5
109 8 202B04S Lock washer, M4
110 13 201A06 Hex nut, M6
111 7 202B06 Lock washer, M6
112 1 201A08 Hex nut, M8
113 2 202B08 Lock washer, M8
114 1 200E04015 Phillips head machine screw, M4*15
115 2 200A04025 Socket head cap screw, M4*25
116 8 200C05012 Hex bolt, M5*12
117 9 202A0512 Plain washer, M5*12
118 2 202A0613 Plain washer, M6*13
119 8 202C041003 Copper washer, M4*10*0.3
121 1 202A062120 Plain washer, M6*21*2
122 1 2200505006 Heater spring, 0.5*0.5*6.5
123 1 2201011022 Tension spring, long 1*10.8*22
124 2 2210812051 Compression spring, 0.8*12*51
125 2 210A0635ZZ Ball bearing, 635ZZ
126 1 2214024039 Compression spring, 4*24*39
127 1 212AE12 Ring, E-12
129 1 2211610026 Compression spring, 1.6*10*26
130 2 211A0440 Spring pin, 4 dia.*40
131 1 211A0520 Spring pin, 5*20
132 1 103T024-1 Solenoid 24VDC
133 1 227A02016 Rubber washer, (Ф16)
134 8 200C04010S Hex bolt, M4*10
10
