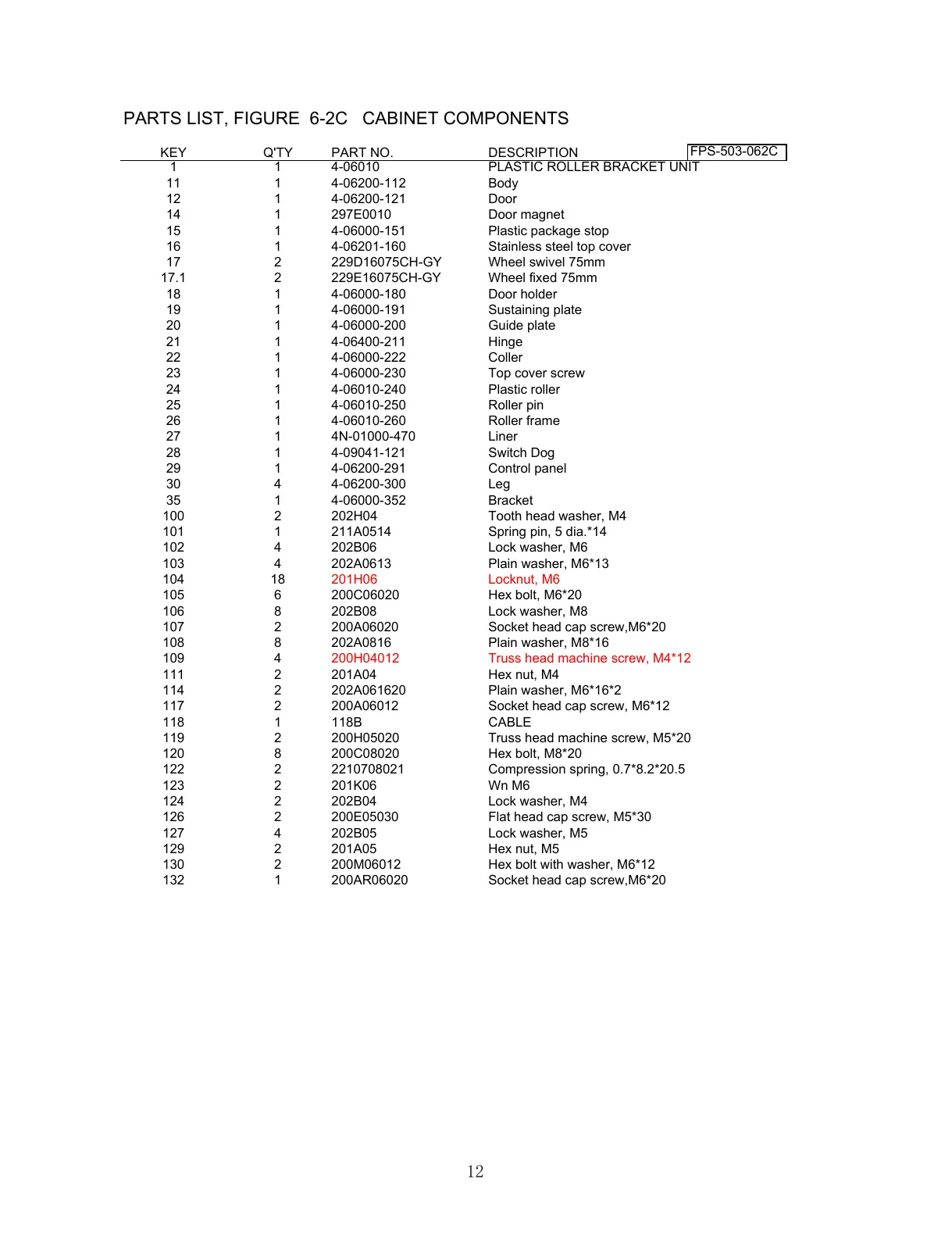

PARTS LIST, FIGURE 6-2C CABINET COMPONENTS
KE
Y
Q'T
Y
PART NO. DESCRIPTION
FPS-503-062C
1 1 4-06010 PLASTIC ROLLER BRACKET UNI
T
11 1 4-06200-112 Body
12 1 4-06200-121 Door
14 1 297E0010 Door magnet
15 1 4-06000-151 Plastic package stop
16 1 4-06201-160 Stainless steel top cover
17 2 229D16075CH-GY Wheel swivel 75mm
17.1 2 229E16075CH-GY Wheel fixed 75mm
18 1 4-06000-180 Door holder
19 1 4-06000-191 Sustaining plate
20 1 4-06000-200 Guide plate
21 1 4-06400-211 Hinge
22 1 4-06000-222 Coller
23 1 4-06000-230 Top cover screw
24 1 4-06010-240 Plastic roller
25 1 4-06010-250 Roller pin
26 1 4-06010-260 Roller frame
27 1 4N-01000-470 Liner
28 1 4-09041-121 Switch Dog
29 1 4-06200-291 Control panel
30 4 4-06200-300 Leg
35 1 4-06000-352 Bracket
100 2 202H04 Tooth head washer, M4
101 1 211A0514 Spring pin, 5 dia.*14
102 4 202B06 Lock washer, M6
103 4 202A0613 Plain washer, M6*13
104 18 201H06 Locknut, M6
105 6 200C06020 Hex bolt, M6*20
106 8 202B08 Lock washer, M8
107 2 200A06020 Socket head cap screw,M6*20
108 8 202A0816 Plain washer, M8*16
109 4 200H04012 Truss head machine screw, M4*12
111 2 201A04 Hex nut, M4
114 2 202A061620 Plain washer, M6*16*2
117 2 200A06012 Socket head cap screw, M6*12
118 1 118B CABLE
119 2 200H05020 Truss head machine screw, M5*20
120 8 200C08020 Hex bolt, M8*20
122 2 2210708021 Compression spring, 0.7*8.2*20.5
123 2 201K06 Wn M6
124 2 202B04 Lock washer, M4
126 2 200E05030 Flat head cap screw, M5*30
127 4 202B05 Lock washer, M5
129 2 201A05 Hex nut, M5
130 2 200M06012 Hex bolt with washer, M6*12
132 1 200AR06020 Socket head cap screw,M6*20
12
