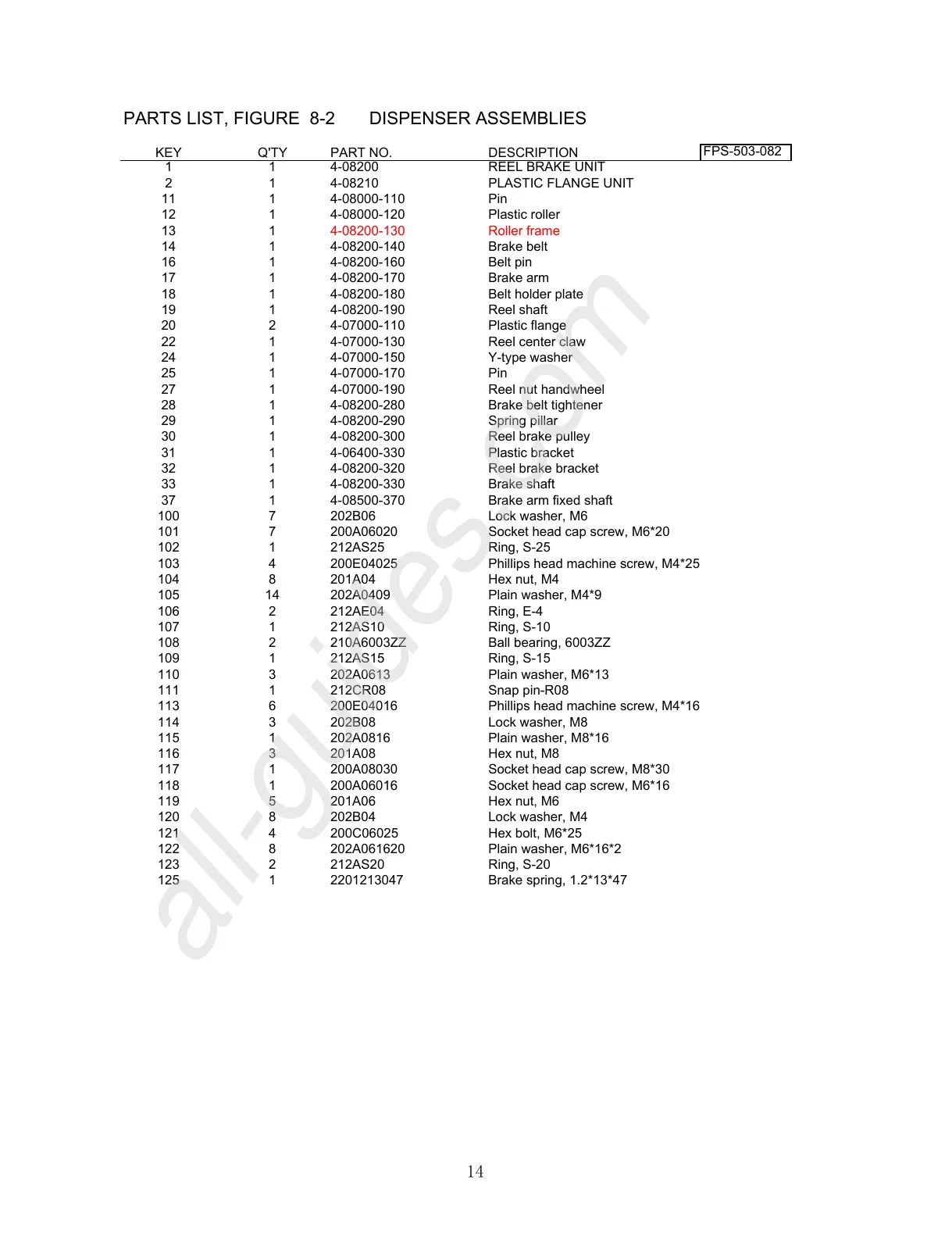

PART NO. DESCRIPTION
FPS-503-082
1 1 4-08200 REEL BRAKE UNIT
2 1 4-08210 PLASTIC FLANGE UNIT
11 1 4-08000-110 Pin
12 1 4-08000-120 Plastic roller
13 1 4-08200-130 Roller frame
14 1 4-08200-140 Brake belt
16 1 4-08200-160 Belt pin
17 1 4-08200-170 Brake arm
18 1 4-08200-180 Belt holder plate
19 1 4-08200-190 Reel shaft
20 2 4-07000-110 Plastic flange
22 1 4-07000-130 Reel center claw
24 1 4-07000-150 Y-type washe
25 1 4-07000-170 Pin
27 1 4-07000-190 Reel nut handwheel
28 1 4-08200-280 Brake belt tightener
29 1 4-08200-290 Spring pillar
30 1 4-08200-300 Reel brake pulley
31 1 4-06400-330 Plastic bracket
32 1 4-08200-320 Reel brake bracket
33 1 4-08200-330 Brake shaft
37 1 4-08500-370 Brake arm fixed shaft
100 7 202B06 Lock washer, M6
101 7 200A06020 Socket head cap screw, M6*20
102 1 212AS25 Ring, S-25
103 4 200E04025 Phillips head machine screw, M4*25
104 8 201A04 Hex nut, M4
105 14 202A0409 Plain washer, M4*9
106 2 212AE04 Ring, E-4
107 1 212AS10 Ring, S-10
108 2 210A6003ZZ Ball bearing, 6003ZZ
109 1 212AS15 Ring, S-15
110 3 202A0613 Plain washer, M6*13
111 1 212CR08 Snap pin-R08
113 6 200E04016 Phillips head machine screw, M4*16
114 3 202B08 Lock washer, M8
115 1 202A0816 Plain washer, M8*16
116 3 201A08 Hex nut, M8
117 1 200A08030 Socket head cap screw, M8*30
118 1 200A06016 Socket head cap screw, M6*16
119 5 201A06 Hex nut, M6
120 8 202B04 Lock washer, M4
121 4 200C06025 Hex bolt, M6*25
122 8 202A061620 Plain washer, M6*16*2
123 2 212AS20 Ring, S-20
125 1 2201213047 Brake spring, 1.2*13*47
