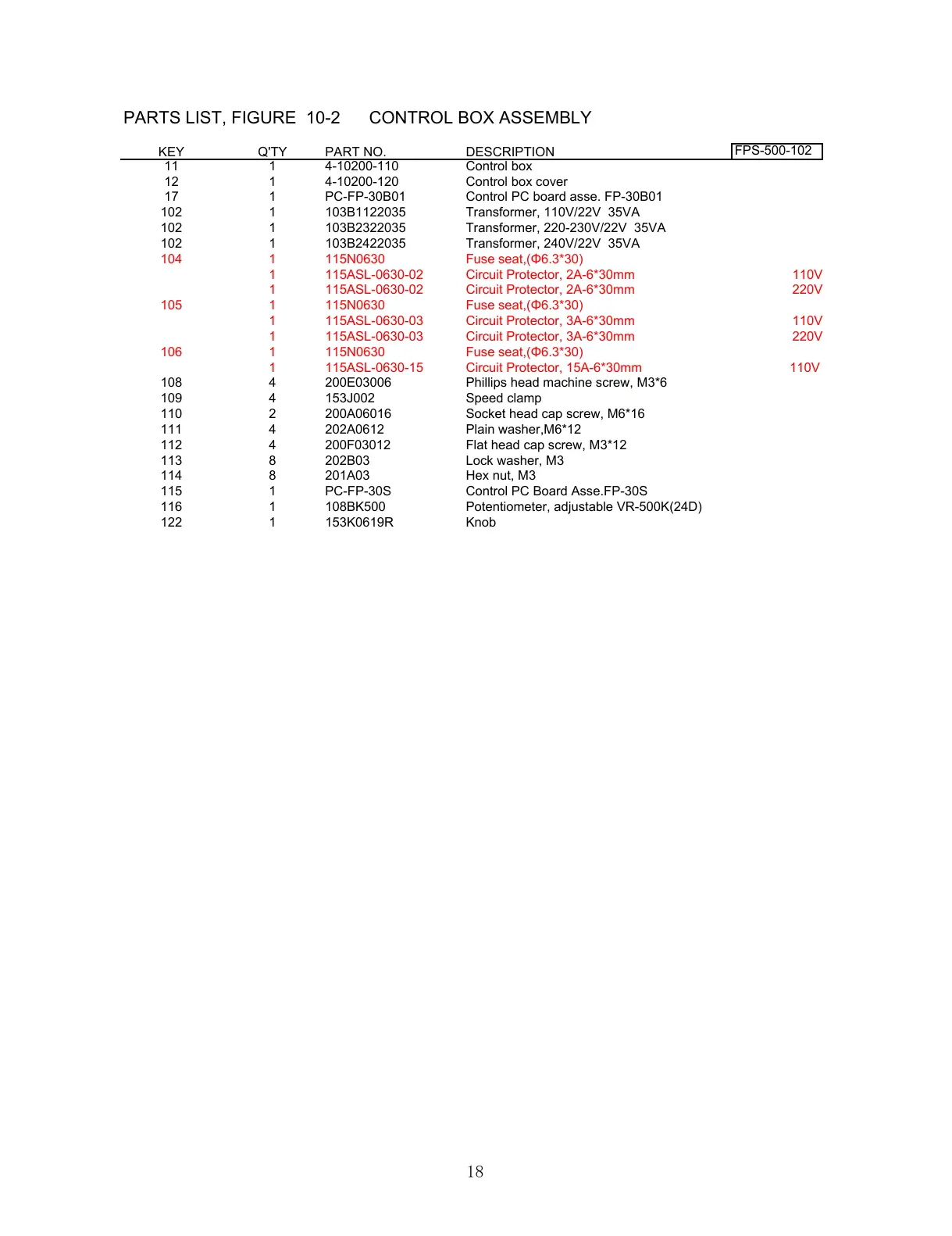

PARTS LIST, FIGURE 10-2 CONTROL BOX ASSEMBLY
KE
Y
Q'TY PART NO. DESCRIPTION
FPS-500-102
11 1 4-10200-110 Control bo
x
12 1 4-10200-120 Control box cove
r
17 1 PC-FP-30B01 Control PC board asse. FP-30B01
102 1 103B1122035 Transformer, 110V/22V 35VA
102 1 103B2322035 Transformer, 220-230V/22V 35VA
102 1 103B2422035 Transformer, 240V/22V 35VA
104 1 115N0630 Fuse seat,(Φ6.3*30)
1 115ASL-0630-02 Circuit Protector, 2A-6*30mm 110V
1 115ASL-0630-02 Circuit Protector, 2A-6*30mm 220V
105 1 115N0630 Fuse seat,(Φ6.3*30)
1 115ASL-0630-03 Circuit Protector, 3A-6*30mm 110V
1 115ASL-0630-03 Circuit Protector, 3A-6*30mm 220V
106 1 115N0630 Fuse seat,(Φ6.3*30)
1 115ASL-0630-15 Circuit Protector, 15A-6*30mm 110
V
108 4 200E03006 Phillips head machine screw, M3*6
109 4 153J002 Speed clamp
110 2 200A06016 Socket head cap screw, M6*16
111 4 202A0612 Plain washer,M6*12
112 4 200F03012 Flat head cap screw, M3*12
113 8 202B03 Lock washer, M3
114 8 201A03 Hex nut, M3
115 1 PC-FP-30S Control PC Board Asse.FP-30S
116 1 108BK500 Potentiometer, adjustable VR-500K(24D)
122 1 153K0619
R
Knob
18
