Extracting the insert
The Comfort insert has to be extracted to carry out
routine maintenance (cleaning the ash pipe at the
end of the year) or special servicing (replacing
mechanical parts in the event of damage).
N.B. These operations must be carried out by
an authorized technician, with the stove
switched off and the plug disconnected.

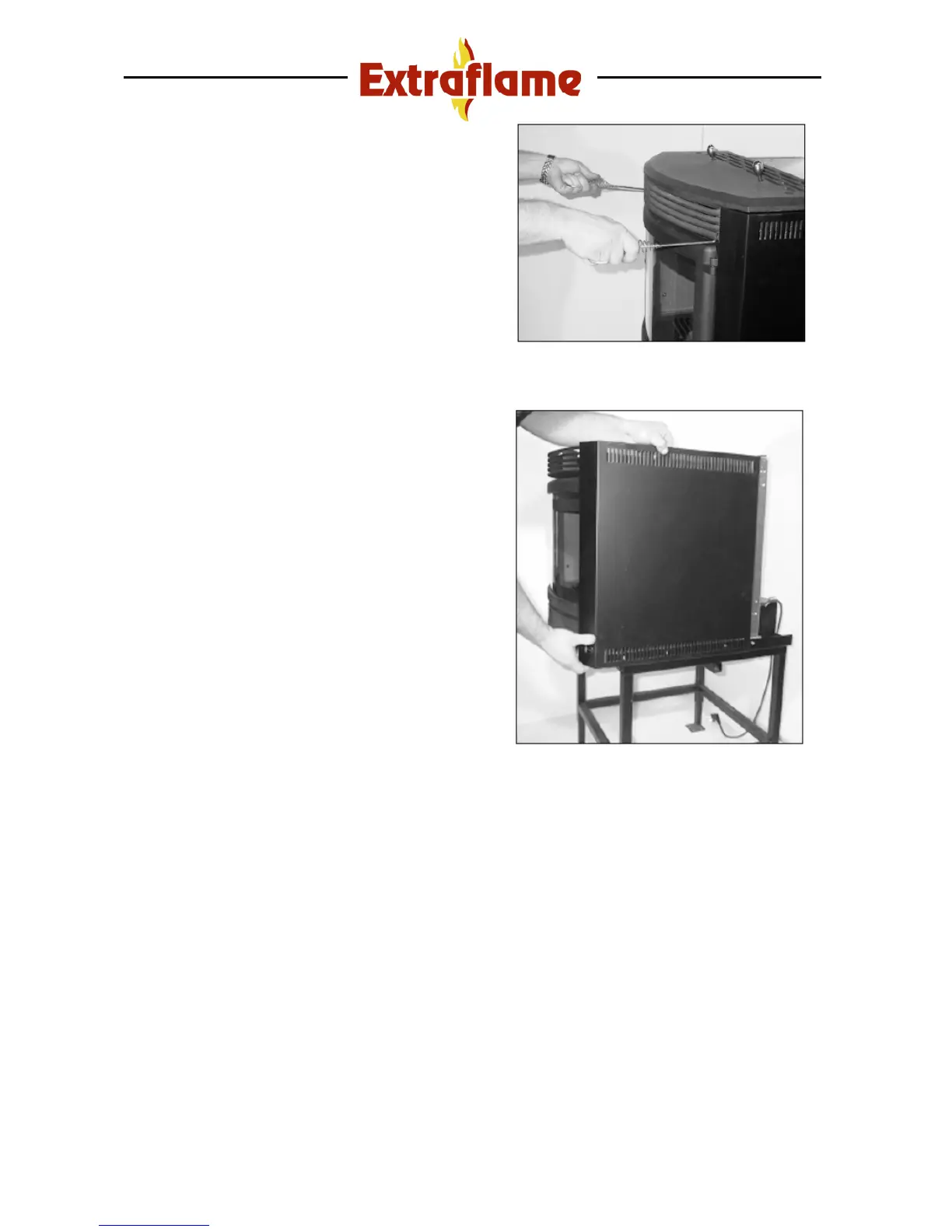

To extract the insert, proceed as follows:
1. Insert the socket wrench provided on the
screw at bottom right.
2. Turn the wrench clockwise.
3. Using the pokers provided, pull the insert
towards you until it blocks automatically.
Fitting the frames
• Front frame
• Side frames
Attach the front frame to the two side frames.
Fix the frames to the Comfort insert using self-
tapping screws.
N.B. Any wooden beams situated above the
insert must be protected using fireproofing
material.
Frame assembly is important, as it allows
correct air circulation in the insert and
consequently the most efficient stove
operation.
Fig. 7
Fig. 8
