Tools required Tools are the rst step to proper assembly,
you will need a
Allen / Hex key metric set
Philips head screwdriver
Open-end at wrenches metric
measurements 6mm - 17mm
Seat post Insert into the seat tube of the bicycle frame
and align. Tighten clamps and ensure seat is rmly fastened.
You could raise the seat a maximum of about 4” or 100 mm from
the lowest position
Tigtening torque 16 Nm
Do not adjust the seat post beyond its maximum extension
mark.
Assembly
6

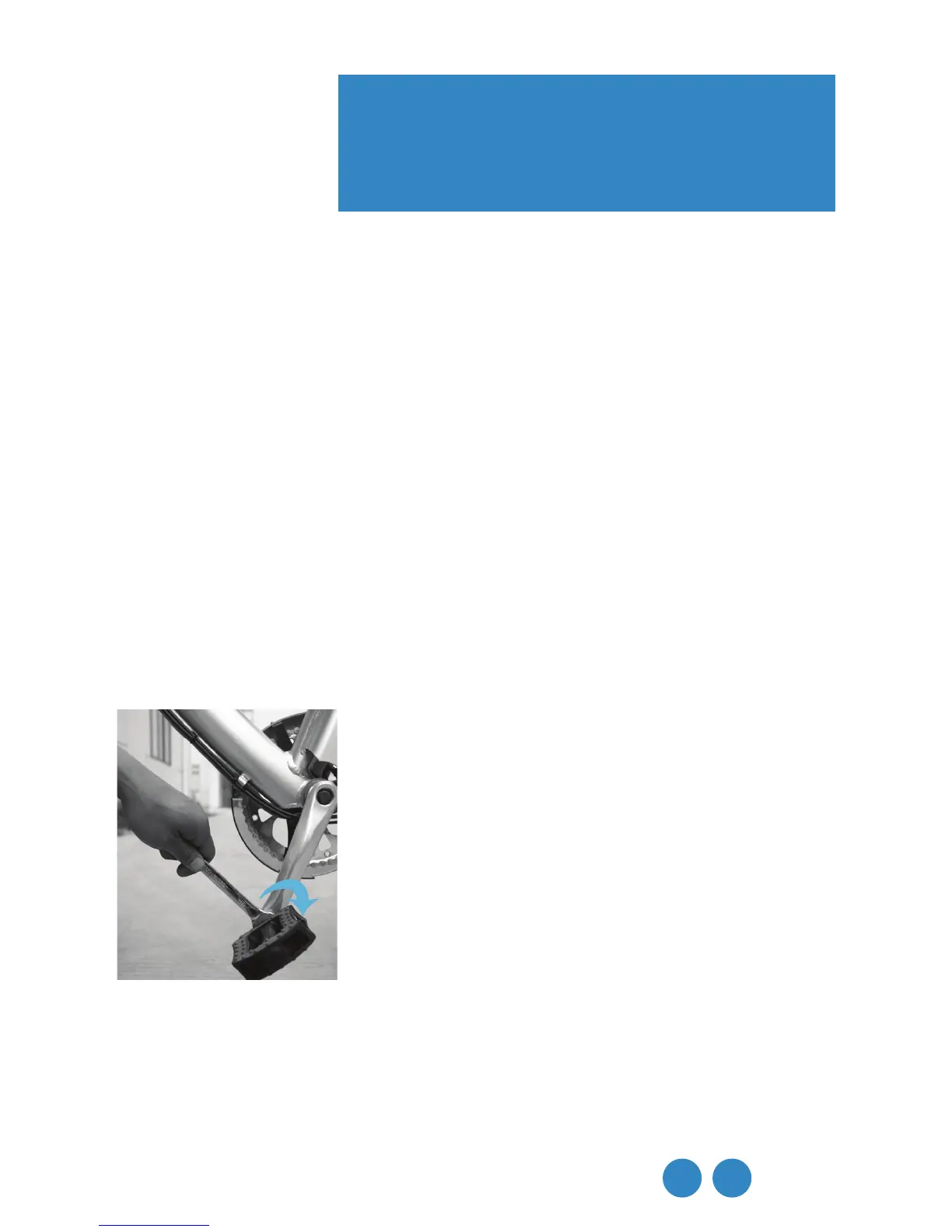

Pedals Pedals are marked “L” and “R”
for left and right respectively. Screw in clock-
wise for the “R” pedal and counter-clockwise
for “L”. Tighten both with a wrench rmly but
not excessively as the crank threads are made
of aluminum alloy.
Front Mudguard The supports are
attached to the sides and top of the front fork.
The mudguards are made of polycarbonate and should not rattle
when they’re securely fastened.
Brakes One of the most important safety features on
the bicycle. To minimise the risk of injury, its vital to ensure they are
corrected adjusted. Ensure that the V-brake blocks are parellel to
the rim, and that the distance between them do not exceed 2mm,
