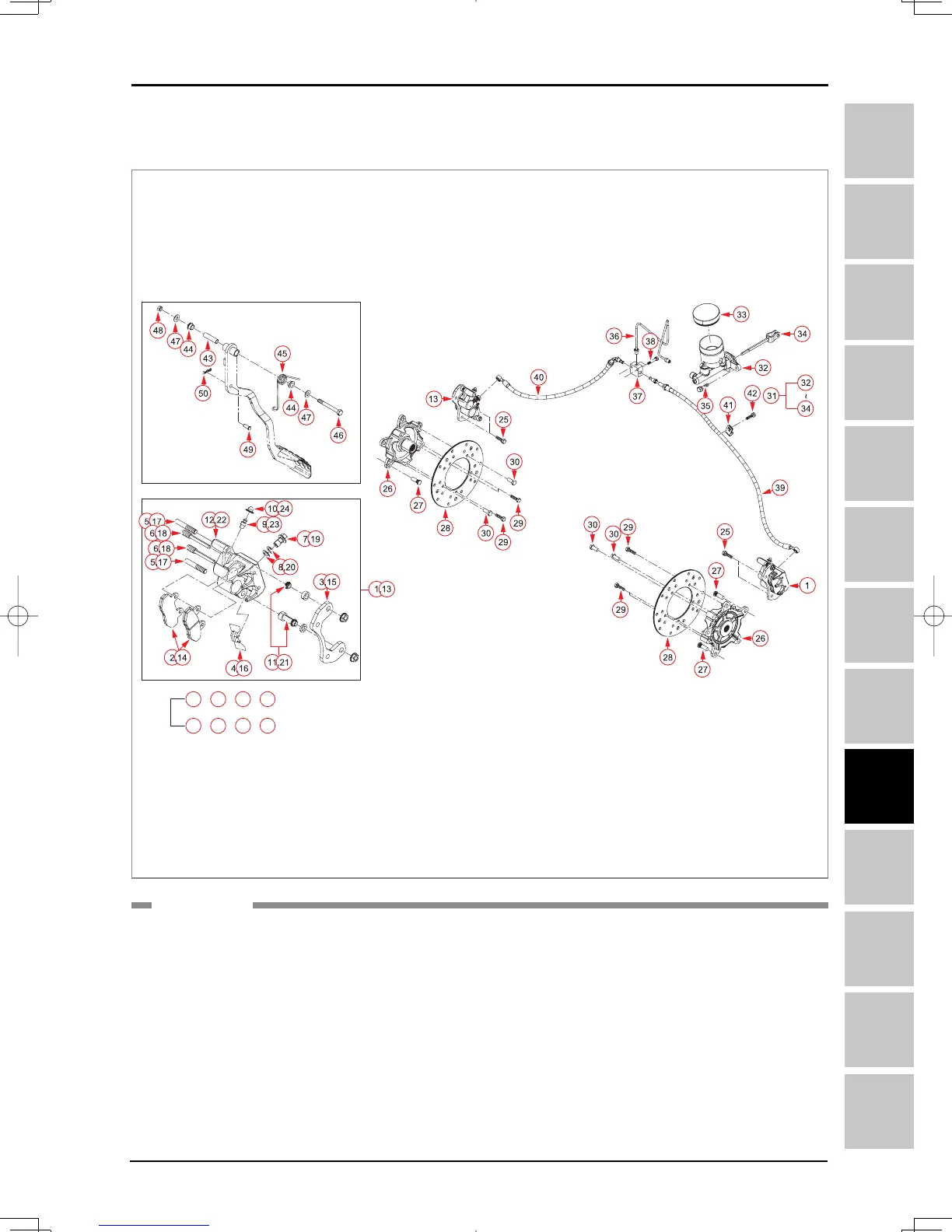

6. COMPONENTS
6.1 U300A FRONT BRAKE
COMPONENTS
(1) CALIPER ASSY, LH
(2) PAD, COMP
(3) CARRIER ASSY DIFF
(4) SPRING PAD
(5) BOLT
(6) NUT
(7) BOLT, UNION
(8) WASHER
(9) BREATHER
(10) CAP, BREATHER
(11) BOOT KIT
(12) CARRIER ASSY DIFF
(13) CALIPER ASSY, RH
(14) PAD, COMP
(15) CARRIER ASSY DIFF
(16) SPRING PAD
(17) BOLT
(18) NUT
(19) BOLT,UNION
(20) WASHER
(21) BOOT KIT
(22) CARRIER ASSY DIFF
(23) BREATHER
(24) CAP, BREATHER
(25) WASHER BOLT
(26) HUB ASSY, FR
(27) BOLT(M10x1.25), HUB
(28) DISC, BRAKE FRT
(29) BOLT
(30) REAMER BOLT, HUB
(31)
MASTER CYLINDER ASSY
(32) TANK BODY ASSY
(33) CAP ASSY
(34) ROD ASSY
(35) WASHER BOLT
(36) TUBE, FRT BRAKE ASSY
(37) FITTING TEE
(38) BOLT
(39) TUBE, FRT BRAKE LH
(40) TUBE, FRT BRAKE RH
(41) CLAMP
(42) BOLT, FLANGE
(43)
TUBE, BRAKE PEDAL BUSH
(44) BUSH, BRAKE PEDAL PIVOT
(45) SPRING, BRAKE PEDAL
(46) BOLT
(47) WASHER, PLAIN
(48) NUT
(49) PIN
(50) CIR CLIP
UUVW740A
3 = 5 + A + B
15 = 17 + A + B
BRAKE - COMPONENTS
