Ezgo EXPRESS L4 - Front Spring Replacement

Page E-2
Repair and Service Manual
B
FRONT SUSPENSION AND STEERING
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Tighten the shock absorber mounting hardware until the
rubber bushings expand to the diameter of the shock
absorber washer.
Replace front wheels per WHEELS AND
TIRES section. and lower vehicle.

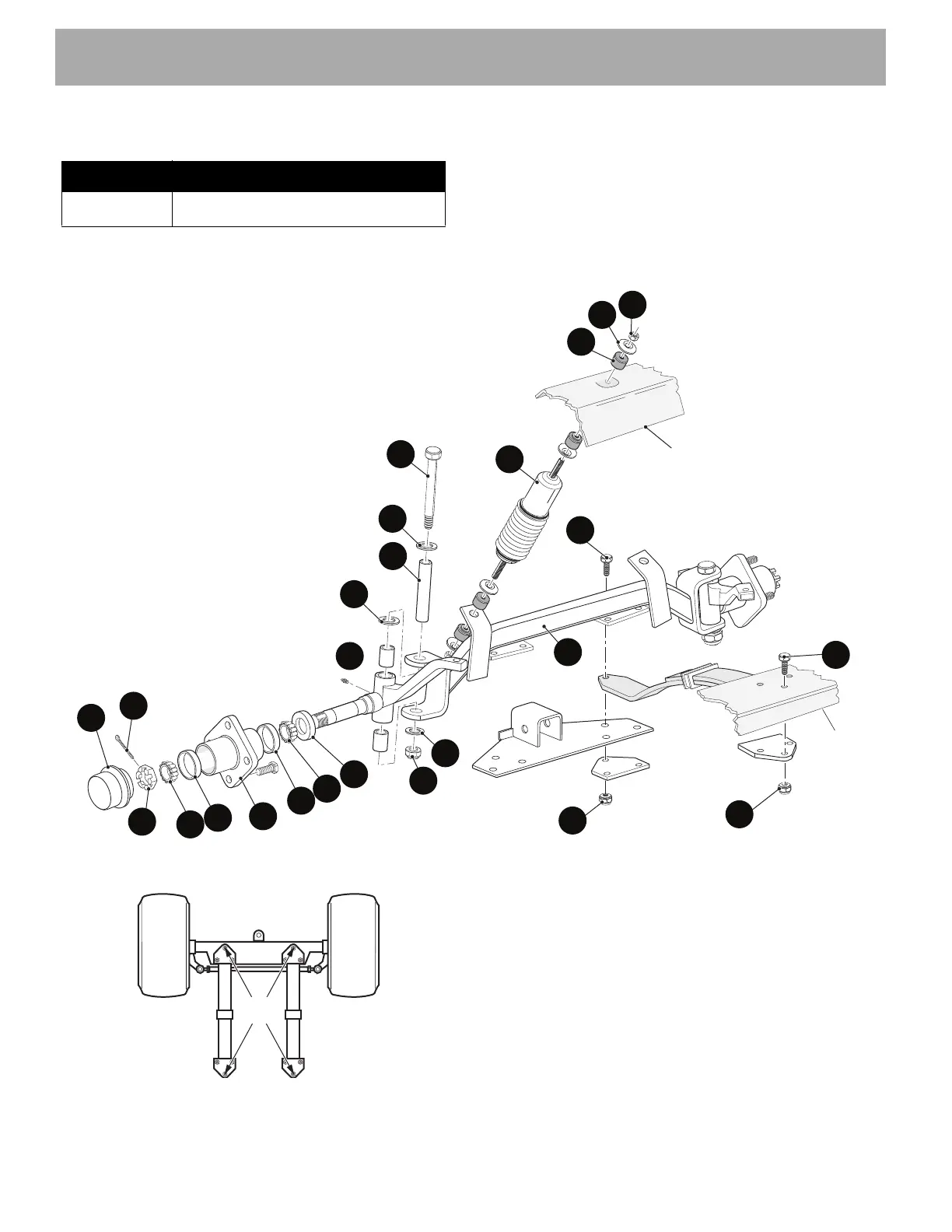

Fig. 1 Front Suspension Components
Fig. 2 Front Axle Alignment
Front Spring Replacement
Tool List Qty.
Wheel chocks ..............................................................4
Floor jack .....................................................................1
Jack stands..................................................................4
Impact wrench..............................................................1
Impact socket, 3/4" ......................................................1
Torque wrench, ft. lbs...................................................1
Pliers............................................................................1
Wrench, 3/4" ................................................................1
Socket, 9/16"................................................................1
Wrench, 9/16" ..............................................................1
ITEM TORQUE SPECIFICATION
12 35 - 50 ft. lbs (50 - 70 Nm)
Part of
Frame
Part of
Frame
4
6
5
1
2
8
12
21
22
10
11
15
14
16
18
19
17
19
18
20
23
9
12
13
13
View from Underside
of Vehicle
Equal
Distance
