Page G-1
Repair and Service Manual
B
B
ENGINE
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
For further engine information, see Engine Shop Rebuild
and Service Parts Manual.
POWERTRAIN MAINTENANCE
Access the powertrain by raising or removing seat.
Some service procedures may require the vehicle be
lifted. Refer to LIFTING THE VEHICLE in section ‘B’ for
proper lifting procedure and safety information.

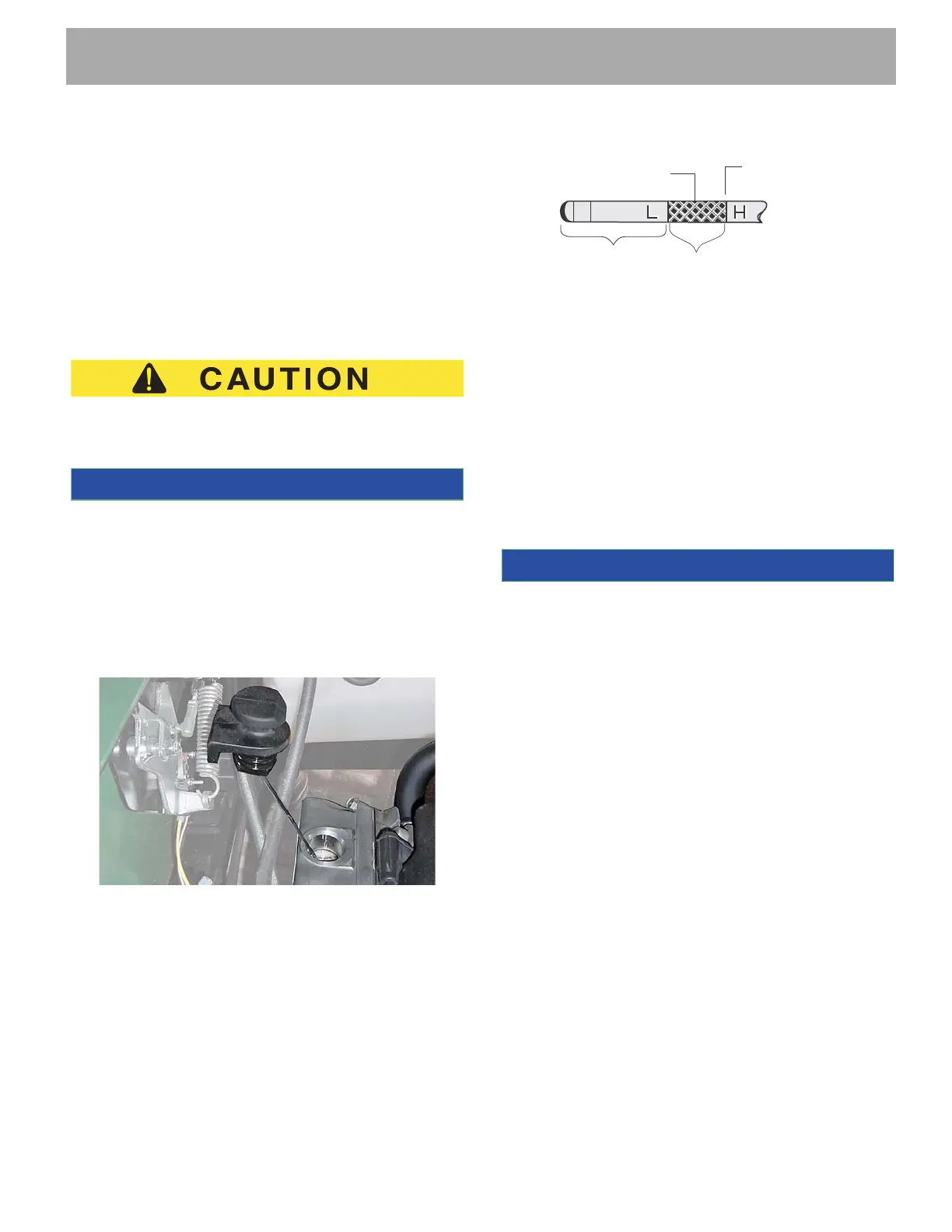

Checking the Oil Level
Do not overfill engine. Too much oil may cause smoking
or allow oil to enter the air filter enclosure.
Vehicles with the leaf springs mounted on top of the rear axle
will have an oil dipstick with an ’H’ stamped into the top.
The oil should be checked with the engine warm. The
vehicle should be on a level surface with the parking
(PARK) brake engaged. Allow adequate time for oil to
drain into the crankcase before checking.
Remove the oil dipstick and wipe off the entire area with
a lint free cloth (Ref. Fig. 1).
Fig. 1 Oil Dipstick
Insert the dipstick fully into the dipstick opening and
remove. Examine the level of the oil on the dipstick.
Fig. 2 Check Oil Level on Dipstick
The engine can be operated safely as long as oil is
within the safe operating range as indicated on the dip
stick. Do not operate vehicle if oil level is below the
safe area indicated on the dipstick.
Oil should be added to bring the level into the safe oper-
ating range. Remember that oil expands as it gets hot,
Do not overfill (Ref. Fig. 2). Check that the oil cap is
firmly in place.
When adding oil between oil changes, do not mix brands and
viscosity grades of oil.Both the oil dipstick and fill cap must be
in place before operating the engine. Failure to install the dip-
stick and fill cap will result in oil becoming contaminated and/or
oil being discharged into the engine compartment.
Changing the Oil
Tool List Qty.
Socket, 19 mm.............................................................1
Ratchet ........................................................................1
Extension, 8"................................................................1
Oil Drain Pan ...............................................................1
Oil Filter Wrench..........................................................1
For maximum performance and longevity, the engine oil
should be replaced after the first 8 hours of operation.
After the initial oil change, it should be changed every
125 hours of operation or semi-annually, whichever
comes first.
The selection of oil is dependent upon the service that
the vehicle will perform. Most vehicles require 10W-30
oil, whereas vehicles used at capacity or near capacity
load applications will utilize 10W-40 oil after a break-in
period of 8 hours (Ref. Fig. 3).
Maximum Oil Level
For Hot Engine
Do Not Overfill
Fill Cold Engine
To This Point
Safe
Operating Range
Hot Engine
Add Oil
