Ezgo SHUTTLE 6 Service Manual

Page H-1
Service Parts Manual

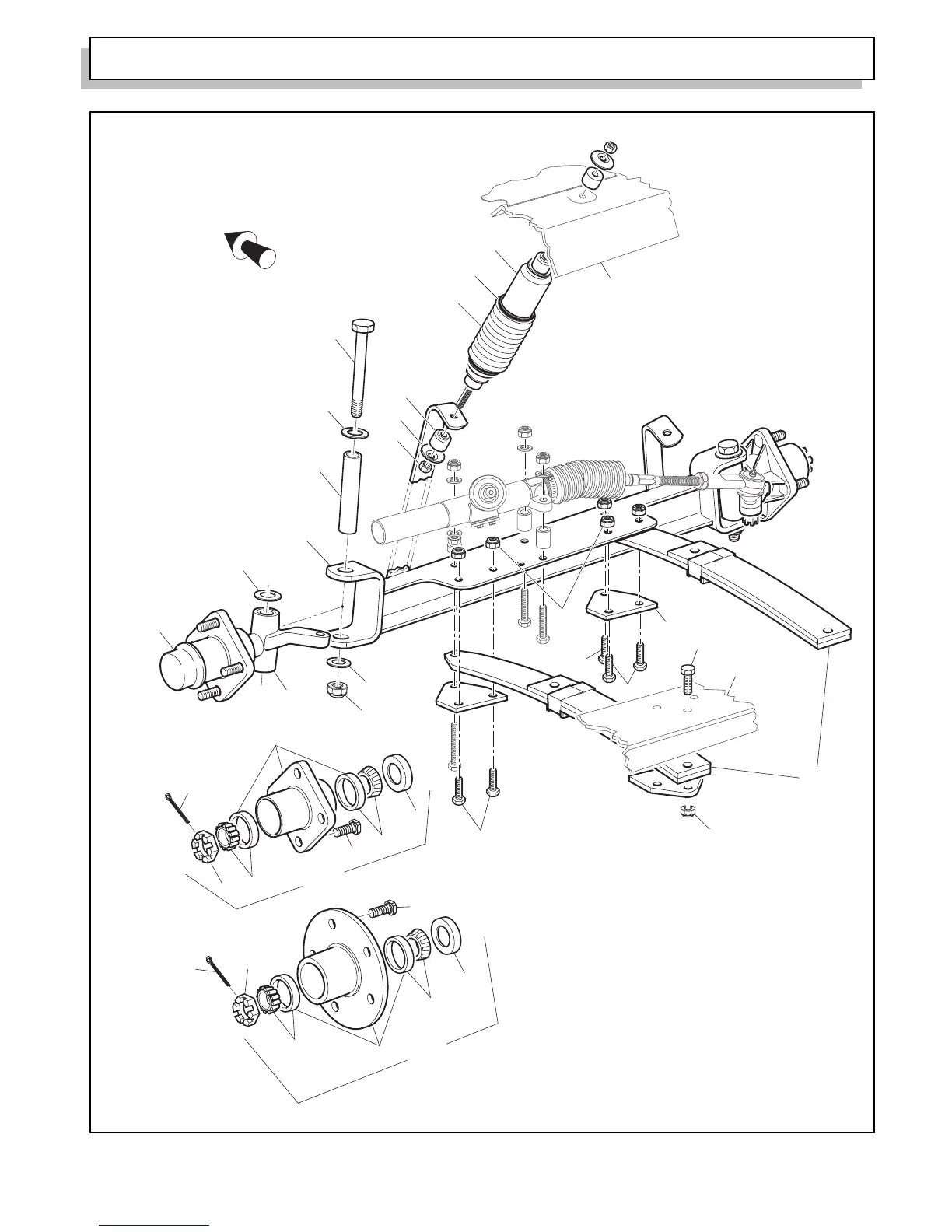

FRONT SUSPENSION/STEERING
R
ef Fss 1-1
52
34
37
11
33
51
48, 49
36
*NOTE: Tie Rod Not
Shown for
Clarity
1
53
Part of
Frame
45
43
44
34
4,15
19,30
53
51
40
41*
42*
Part of
Frame
Front of Vehicle
8
6
6
5
10
9
21
22
7
20
25
50
23
4 LUG
5 LUG
35
*Truck
Models
Only
3 - Includes Items 4 -10
7 - Includes Item 8
14 - Includes Items 5 - 10, 15
18 - Includes Items 19 - 25
22 - Includes Item 23
29 - Includes Items 20 - 25, 30
3,14
18, 29
52
24
21
