Ezviz C8W User Manual

6
Installation
1� Micro SD Card Installation (Optional)
1. Remove the cover on the camera.
2. Insert the micro SD card (sold separately) into the card slot.
3. Fix the cover to the camera.

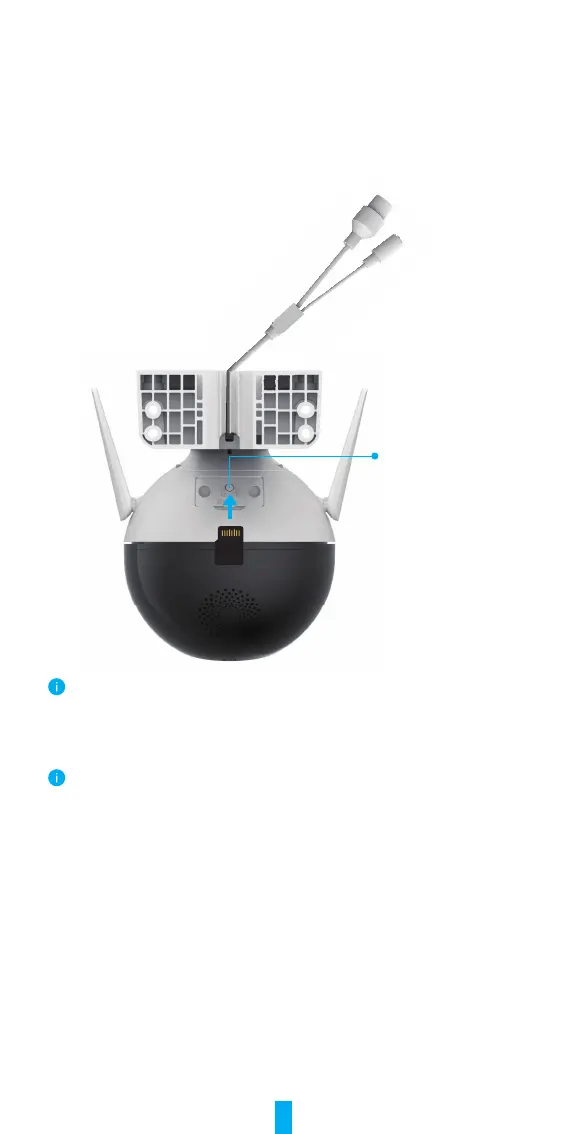

Micro SD Card Slot
(Remove the cover)
After installing the micro SD card, you should initialize the card in the EZVIZ app
before using it.
4. In the EZVIZ app, tap the Storage Status in the Device Settings interface to
check the SD card status.
5. If the memory card status displays as Uninitialized, tap to initialize it.
The status will then change to Normal and then videos can be stored.
2� Installation Location
• Choosealocationwithaclear,unblockedeldofviewandwithagoodwireless
signal.
• Make sure the wall is strong enough to withstand three times the weight of
the camera.
• Camera cannot be installed with the lens facing direct sunlight.
3� Installation Procedure
The camera can be wall mounted, ceiling mounted, and pole mounted.
Ceiling/Wall Mount
1.Removetheprotectivelmfromthelens.
2.Stickthedrillingtemplateontoacleanandatsurface.
3. (For cement wall only) Drill screw holes according to the template, and insert
anchors.
4.Usescrewstoxthecameraontheinstallationsurface.

Ezviz C8W Specifications

General

Number of lenses	1
Fixed focal length	4 mm
Maximum aperture number	1.6
LED type	IR
Certification	UL / FCC / CE / WEEE / REACH / RoHS / UKCA
DC output current	1 A
DC output voltage	12
Power source type	DC
Power consumption (max)	6 W
Mounting type	Wall
Product color	Black, White
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Intelligent Video Surveillance (IVS) system features	Human detection
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264, H.265
Noise reduction technology	3D noise reduction
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Cloud services supported	EZVIZ Cloud
Maximum memory card size	256 GB
Frequency band	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	20 MHz
Wi-Fi data rate (max)	72 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	EZVIZ Cloud Proprietary Protocol
Lens mount interface	M12
Pan range	0 - 352 °
Tilt angle range	0 - 95 °
Camera shutter type	Electronic
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \

Weight and Dimensions

Depth	158 mm
Width	149 mm
Height	157 mm
Weight	510 g
Package depth	197 mm
Package width	205 mm
Package height	185 mm
Package weight	885 g
