EN
7
7
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch
having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) be-
ing sure that the connector of the feeding cable is correctly
inserted in the socket placed on the side of the fan.

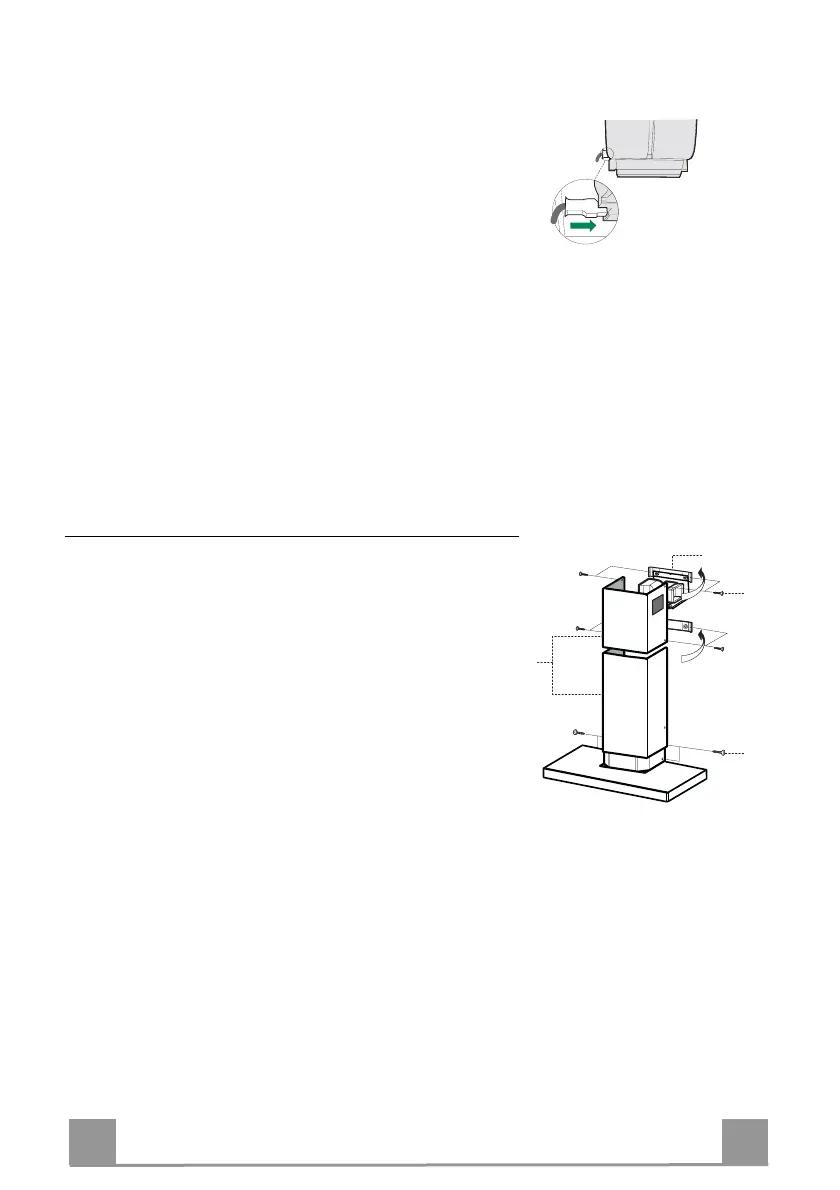

Flue assembly
Upper exhaust flue
• Slightly widen the two sides of the upper flue and hook
them behind the brackets 7.2.1, making sure that they are
well seated.
• Secure the sides to the brackets by using the 4 screws 12c
(2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned
with the chimney outlets.
Lower exhaust flue
• Slightly widen the two sides of the flue and hook them be-
tween the upper flue and the wall, making sure that they
are well seated.
• Fix the lower part laterally to the hood body by using the 2
screws 12c (2,9 x 9,5) supplied.
12c
2.1
2.2
2
7.2.1
12c
