Nova
Misty

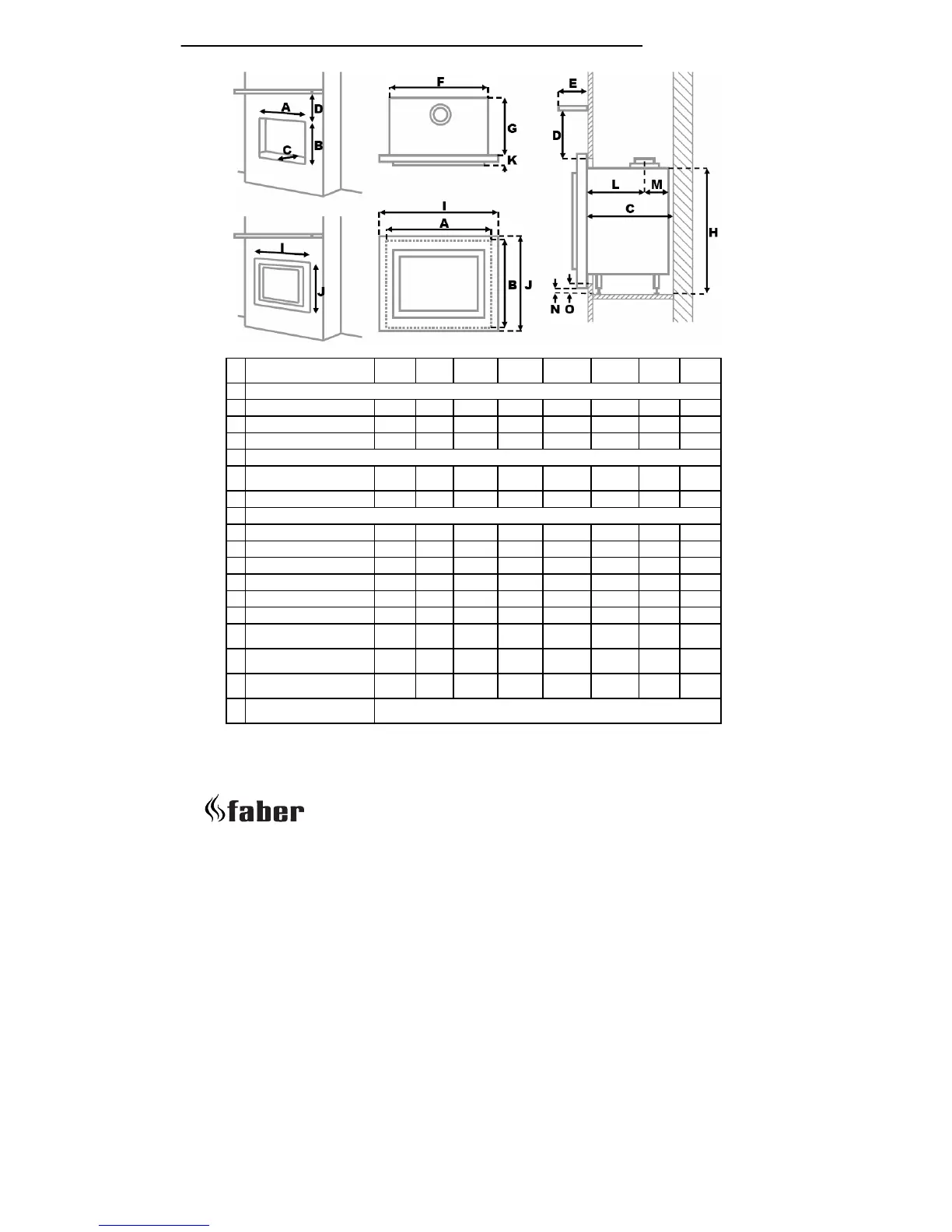

Builders opening (mm)
A Opening width
960 960 960 760 780 780 680 710
B Opening height
649 649 649 670 705 698 798 890
C Opening depth (min.)
385 385 385 397 430 430 430 370
Shelf dimensions
D Minimum height shelf
from top frame
350 350 350 350 350 350 350 350
E Depth shelf
150 150 150 150 150 150 150 150
Dimensions of the appliance (mm)
F Box width
880 880 880 750 750 750 650 698
G Box depth
369 366 369 397 397 375 375 338
H Box height
636 636 636 714 714 715 815 879
I Frame width
1064 1136 1064 795 815 794 694 740
J Frame height
678 750 678 795 720 703 803 905
K Frame thickness
47 57 20 35 16 30 30 144
L Position flue collar
measured from frame
255 255 255 255 257 235 235 196
M Position flue collar
measured from back
111 111 111 142 140 140 140 142
N Height underside foot to
underside frame
17 -20 17 -7 8 0 0 ?
O Height underside foot to
builders opening
≥ N (=dimensions in the row above)
tabel 1
*point A to C have a tolerance of -0 mm and +5 mm.
