Faber STILO Installation Instructions

Version 05/08 - Page 5

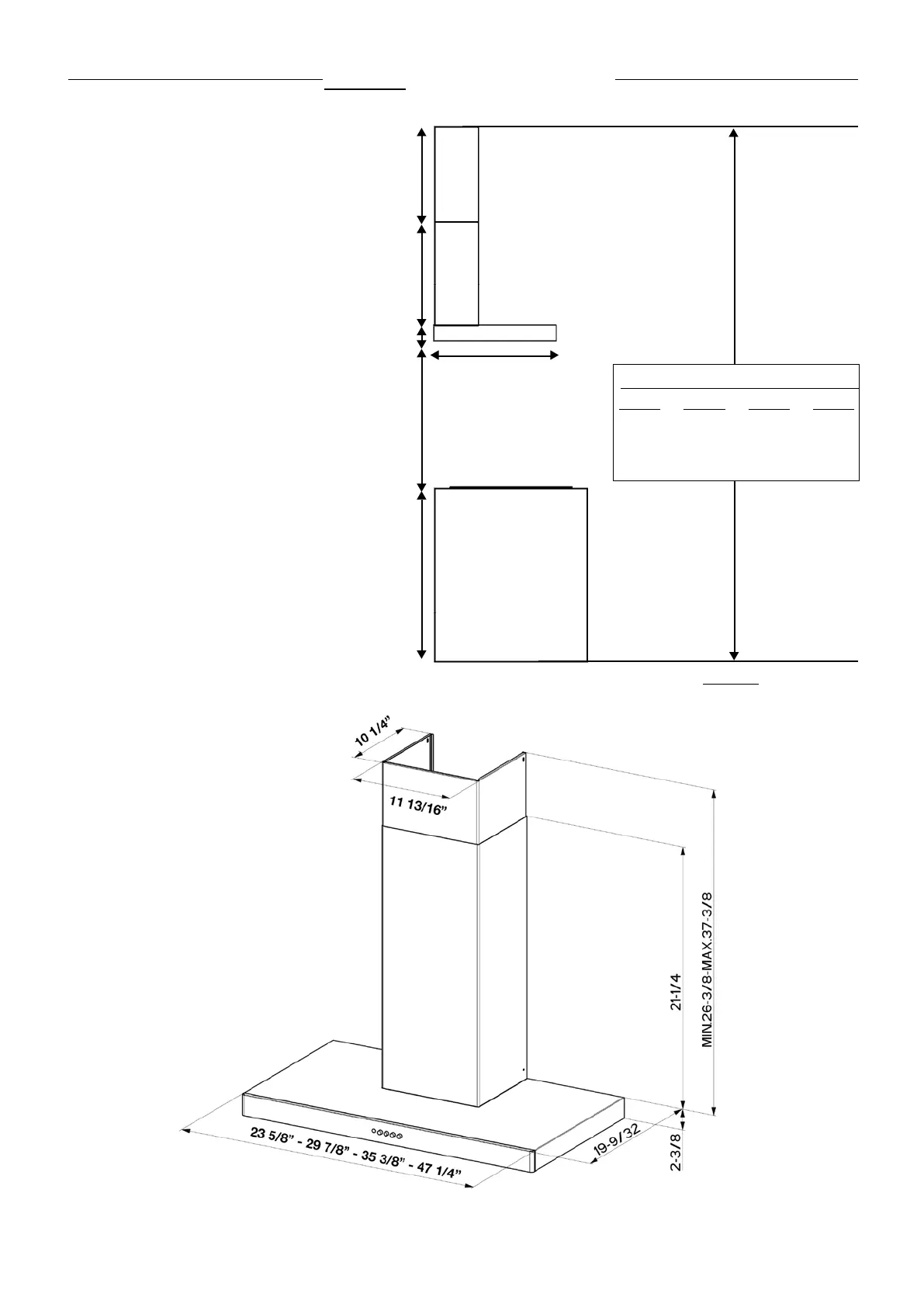

DUCTED INSTALLATION DIMENSIONS
     

FIGURE 4A


       
(distance x)


High Ceiling Chimney Kit










x = distance from hood to cooktop
  


5 






x


(vented to the outside)
min & max ceiling height examples
x = 30"
min


max


x = 28"
min


max


x = 26"
min


max


x = 24"
min


max


FIGURE 4A DUCTED INSTALLATIONS

Faber STILO Specifications

General

Width	60 cm
Control Type	Mechanical
Type	Wall-mounted
Body material	Stainless steel
Number of speeds	3
Number of lights	2
Number of Motors	1
Material	Stainless Steel
Filter Type	Grease
Grease filter type	Metallic
