Version 04/05 - Page 5
DUCTED INSTALLATION DIMENSIONS
The Tratto chimneys are adjustable and
designed to meet varying ceiling heights as
indicated in FIGURE 4A. The chimneys can
be adjusted for ceilings between 7' 4 3/8" and
8' 9 3/8" depending on the distance between
the bottom of the hood and the cooktop
(distance x).
For shorter ceilings, have the chimney cover(s)
cut at a sheet metal shop. For higher ceiling
installations, the High Ceiling Chimney Kit
includes a new 40” upper chimney which would
replace the 16 1/8” upper chimney that came
with the hood.
upper
chimney
cover
lower
chimney
cover
canopy
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
cabinet base
5 1/8” min
16 1/8” max
21 1/4”
2"
36”
19 3/8"
x
also consult cooktop
manufacturer's recommendation
(vented to the outside)

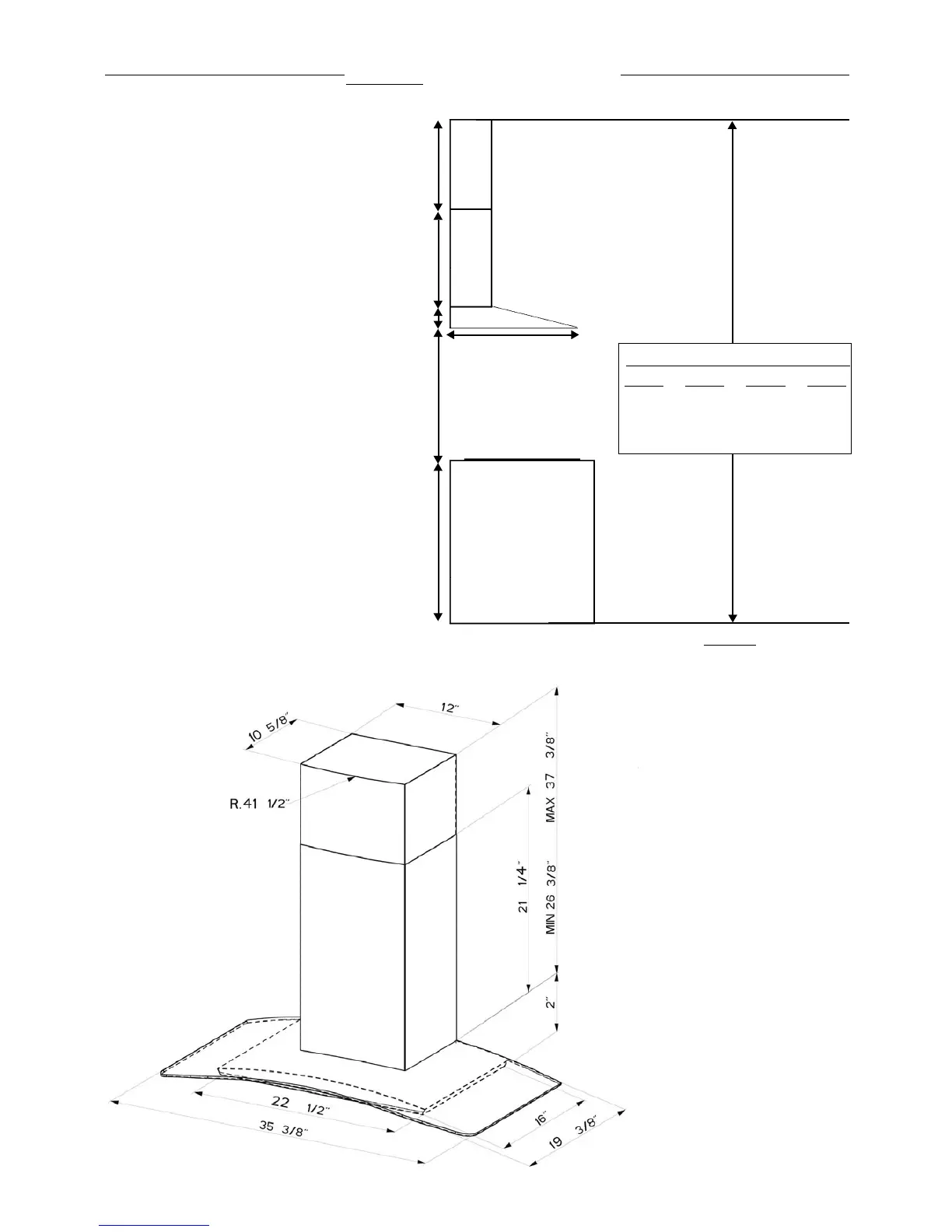

FIGURE 4A DUCTED INSTALLATIONS
min & max ceiling height examples
x = 30"
min
7' 10 3/8"
max
8' 9 3/8"
x = 28"
min
7' 8 3/8"
max
8' 7 3/8"
x = 26"
min
7' 6 3/8"
max
8' 5 3/8"
x = 24"
min
7' 4 3/8"
max
8' 3 3/8"
