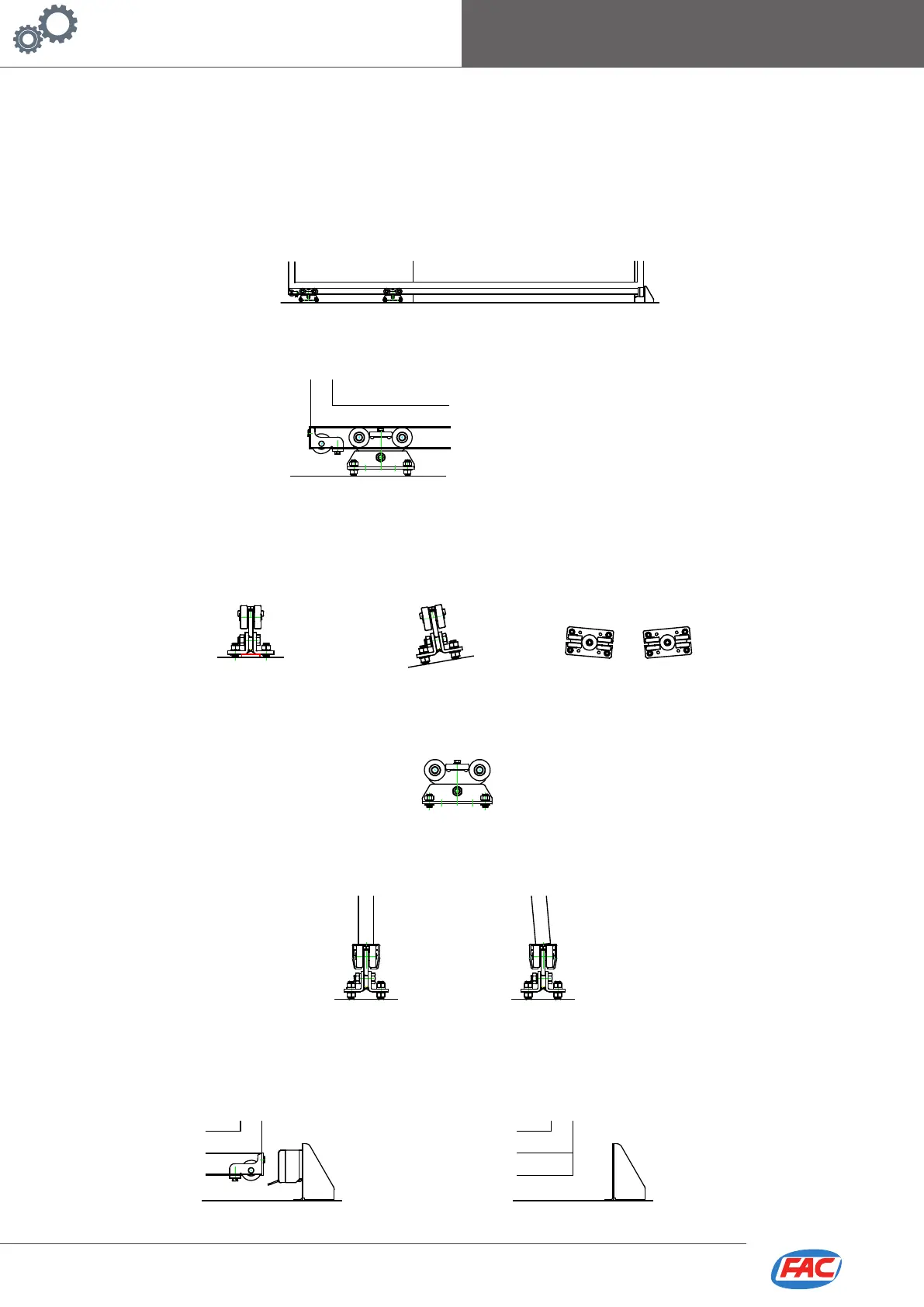

Recommended installation instructions for Cantilever Systems
1. Set the dimension C as the maximum possible with the available
spaces, not as the minimum for the
load in question, and try not to exceed the value 3 of the A/C. The ideal C = A/3. This will assure the
best gate working condition during gate movement.
2. Comply with the D value between the carriages, this value will optimize the spaces
and loads.
3. Fix the trolleys on the ground so that they are firmly supported in correspondence of the fixing rods,
the trolleys must be aligned along the sliding axis of the gate and make sure the bases are perfectly
horizontal, this will ensure that
all wheels will work simultaneously and turn without dragging on the rail.
4. Make sure the rocker arm is not locked and can move freely on its pivot point, this will allow t
he
wheels to adapt to any irregularities of th
e rail during gate movement.
5. The gate must be positioned vertically above the carriages and the rail must be firmly fixed and the
sliding surfaces of the wheels must be perfectly horizontal, this will ensure the maximum weight and radial
force distribution on all wheels.
6. Always use an end stop and a guide roller, if not possible make sure the gate comes to rest in some
way. This will prevent gate wobbling and will help relief some of its load when the gate
if f
ully
opened or fully closed;
NO
NO
NO
YES NO
NO
YES
YES
