Factory Cat 28 - LCD Screen Menu Displays

PAGE 17
FIGURES 22-25.
1. BATTERY LEVEL INDICATOR - INDICATES THE ENERGY LEVEL REMAINING IN THE BATTERIES.
(SHOWN ON ALL MENU DISPLAYS)
2. S
CRUBBING DECK DOWN PRESSURE GAUGE - SETS THE DOWN PRESSURE ON THE BRUSHES. (SEE FIGURE 22.)
3. VA
CCUM ON - TELLS YOU WHEN THE VACCUM IS ON. (SEE FIGURES 22. AND 23)
4. SCRUBBING MOTORS ON - TELLS YOU WHEN THE BRUSH MOTORS ARE RUNNING. (SEE FIGURES 22. AND23.)
5. KEY SWITCH HOUR METER - TELLS YOU THE TOTAL HOURS THE MACHINE HAS ON. (SEE FIGURES 23. AND 24.)
6. SCRUBBING BRUSH HOUR METER - TELLS YOU THE TOTAL HOURS THE BRUSH MOTORS HAVE BEEN USED.
(SEE FIGURE 24.)
7. TRANSPORT H
OUR METER - TELLS YOU THE TOTAL HOURS THE DRIVE SYSTEM HAS BEEN USED. (SEE FIGURE 24.)
8. ERRO
R WARNING SYMBOL - INDICATES WHEN THERE HAS BEEN A DIAGNOSTIC CODE ERROR. (SEE FIGURE 25.)
9. DIAGNOSTIC CODE - WHEN THE MACHINE HAS DETECTED AN ERROR IT WILL DISPLAY THE WARNING SYMBOL
AND A DIAGNOSTIC CODE WHICH TELL YOU WHATS WRONG. (SEE FIGURE 25.)
( FOR COMMAN ERROR CODES AND DISCRIPTIONS SEE PAGE 18. AND 19.)
LC

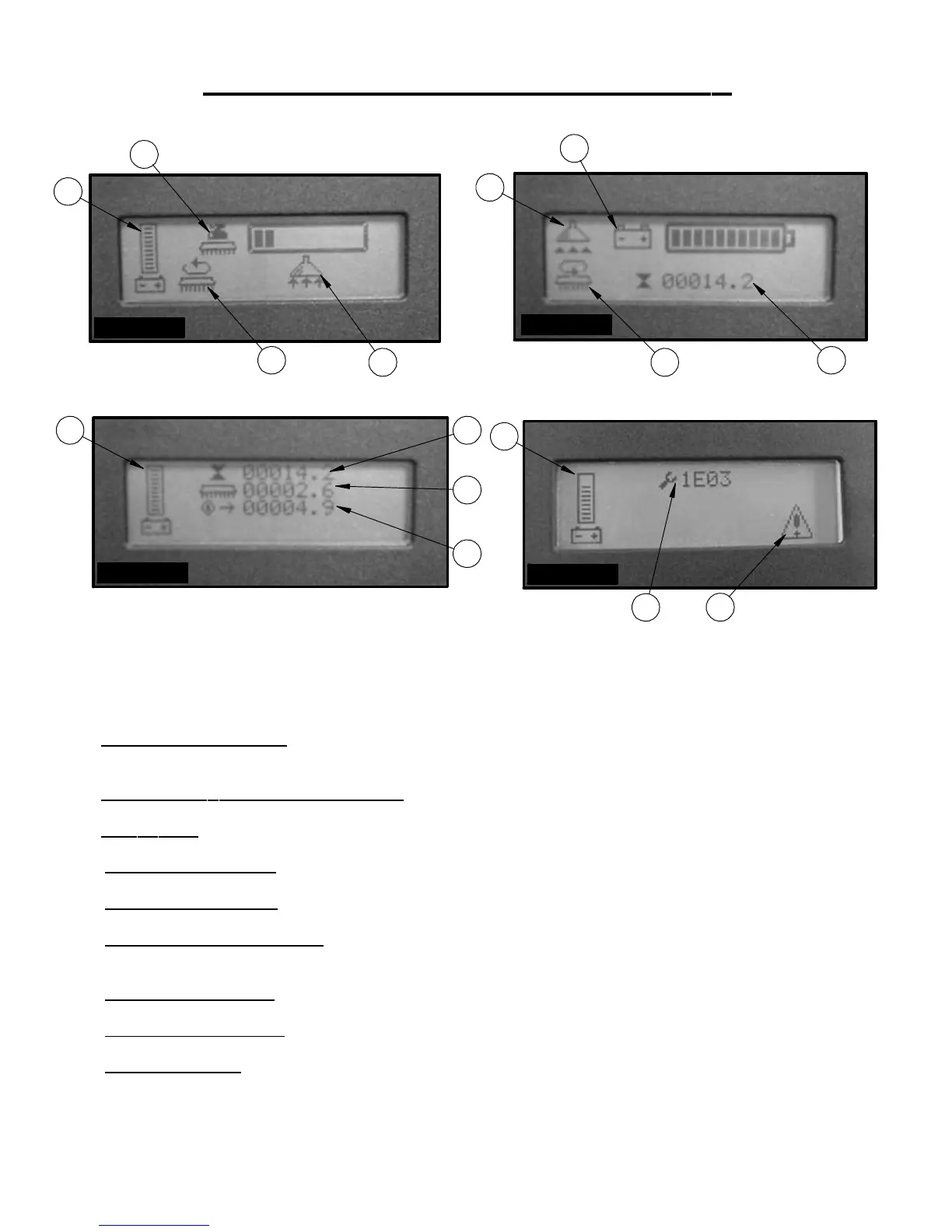

D SCREEN MENU DISPLAYSLCD SCREEN MENU DISPLAYS
SCREEN # 2
SCREEN # 1
SCREEN #3 SCREEN #1 W/ERROR CODE
*** USE GREEN MENU SELECTION BUTTON ON CONTROL PANEL TO CHANGE SCREENS***
1
1
1
1
2
3
4
3
4
5
5
6
7
9
8
(FIGURE 25.)
(FIGURE 22.)
(FIGURE 23.)
(FIGURE 24.)
