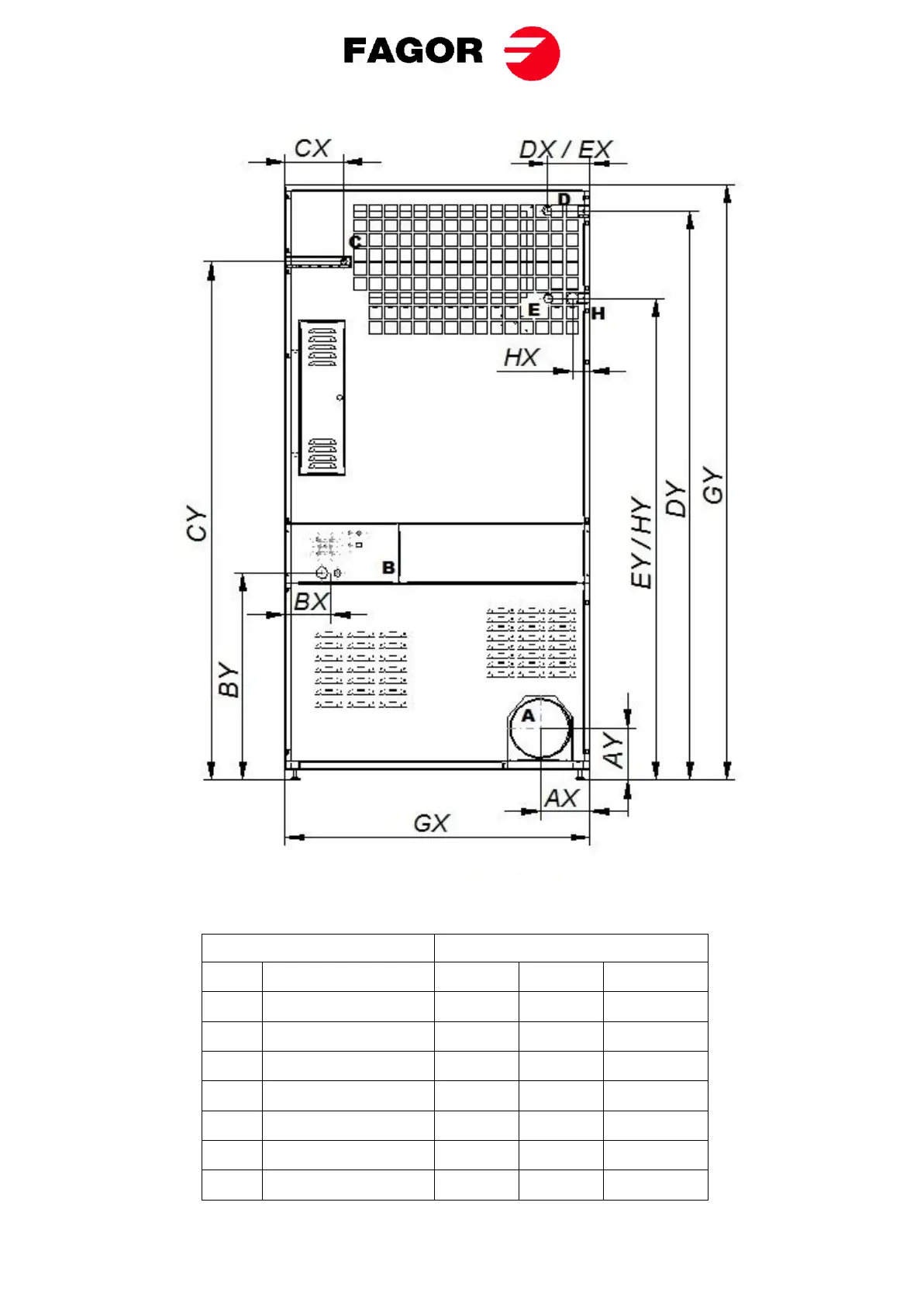

Fagor SR-23 - Page 96

95
SR/SC-28-35
Tip
Description
Height X
Height Y
Connection
A
Steam outlet
160
172
Ø200mm
B
Power supply
148
685
Ø20mm
C
Gas inlet
188
1715
BSP ½”
D
Steam inlet
134
1883
BSP 3/4”
E
Condensation outlet
134
1594
BSP 3/4”
G
General height
985
1970
-
H
Anti fire valve
55
1594
BSP ¾ “
