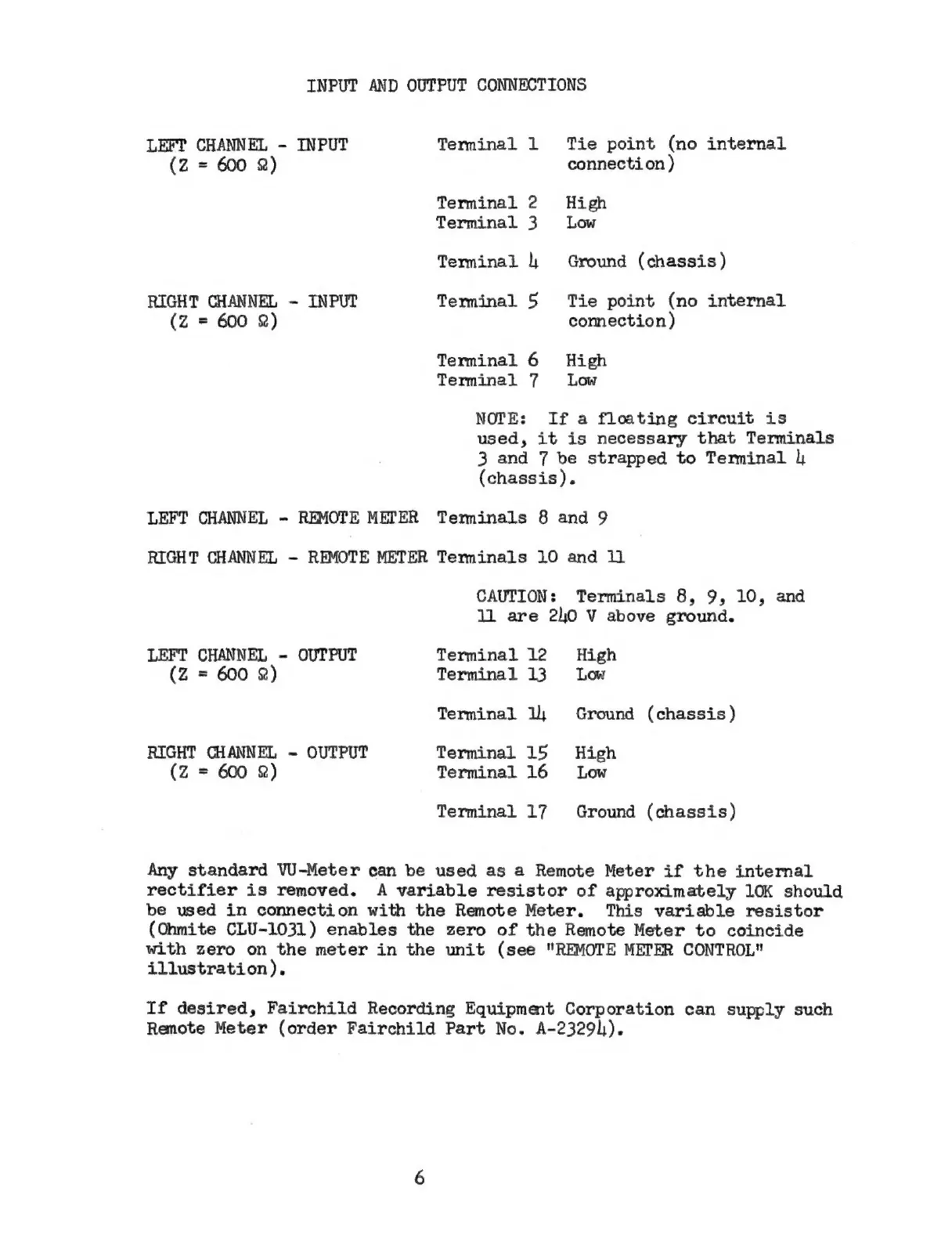

INPUT AND OUTPUT CONNECTIONS
LEFT CHANNEL - INPUT Terminal 1 Tie point (no internal
(Z = 600 2) connection )
Terminal 2 High
Terminal 3 Low
Terminal ) Ground (chassis)
RIGHT CHANNEL - INPUT Terminal 5 Tie point (no internal
(Z = 600 &) comnection)
Terminal 6 High
Terminal 7 Low
NOTE: If a floating circuit is
used, it is necessary that Terminals
3 and 7 be strapped to Terminal )
(chassis).
LEFT CHANNEL - REMOTE METER Terminals 8 and 9
RIGHT CHANNEL - REMOTE METER Terminals 10 and 11
CAUTION: Terminals 8, 9, 10, and
11 are 240 V above ground.
LEFT CHANNEL - OUTPUT Terminal 12 High
(Z = 600 &) Terminal 13 Low
Terminal Uy, Ground (chassis)
RIGHT CHANNEL - OUTPUT Terminal 15 High
(Z = 600 2) Terminal 16 Low
Terminal 17 Ground (chassis)
Any standard VU-Meter can be used as a Remote Meter if the internal
rectifier is removed. A variable resistor of approximately 10K should
be used in connection with the Remote Meter. This variable resistor
(Ohmite CLU-1031) enables the zero of the Remote Meter to coincide
with zero on the meter in the unit (see "REMOTE METER CONTROL"
illustration).
If desired, Fairchild Recording Equipment Corporation can supply such
Remote Meter (order Fairchild Part No. A-2329)).
