FRONT SUSPENSION AND STEERING
Read section A and B completely prior to operation or repair of golf car
C-3
Installation of shock absorber is reverse of disassembly. The only difference is that the mounting nuts
should be tightened until rubber bushings (5) expand to diameter of shock absorber washers (6).
Front Axle Replacement
Tool List Qty. Required
Wheel chocks....................................................... 4
Floor jack.............................................................. 1
Jack stands .......................................................... 2
Open end wrench 18# ........................................ 1
Socket 19# ........................................................... 1
Pliers .................................................................... 1
Socket 16# ........................................................... 1
Socket 17# .......................................................... 1
Plastic faced hammer........................................... 1
Open end wrench 16# .......................................... 1
Torque wrench, ................................................... 1
Lift and support front of vehicle per SAFETY section.
Remove the front wheels. Remove the hardware securing the shock absorber (Ref Fig. C2).

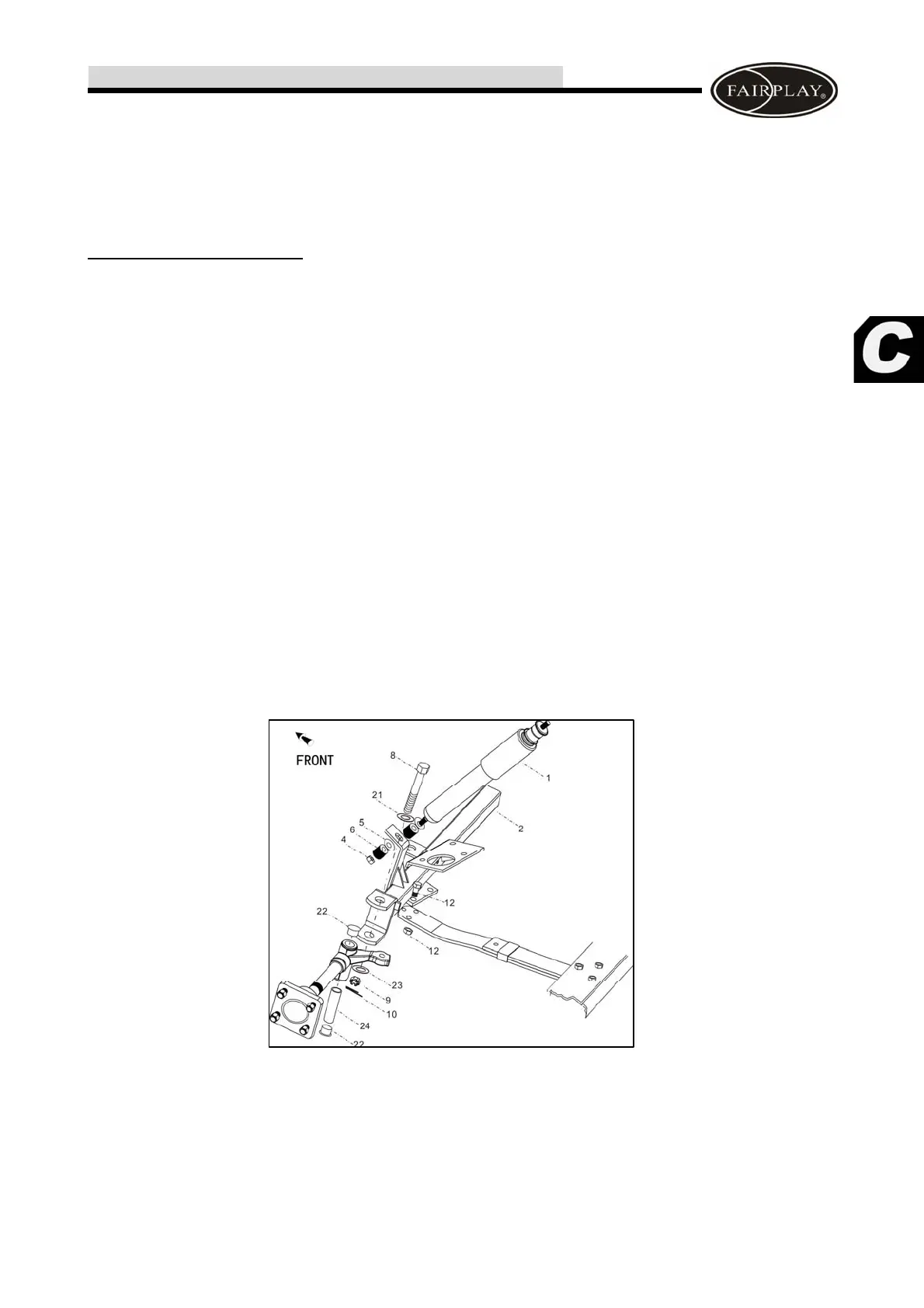

Fig. C2: Front Axle Replacement
Remove the cotter pin (10), and slacken the nut (9) till the threaded tube orifice of king pin (8) is under
protection. Tap the nut by plastic faced hammer to slacken the king pin.
Remove the nut (9) and gasket (23) from the king pin. Remove the king pin (8) and gasket (21) from the
