Introduction
TreeSonic microsecond timer is designed for tree stiffness prediction,
measures the stress wave time between start and stop transducer. The
structure of TreeSonic tool is designed by Weyerhaeuser Co. The
equipment is patent pending. Patent holder is Weyerhaeuser Co.
Preparation for the work
Connect the start sensor to the start connector of the timer. Please see
the male and female connector first and use proper orientation while
pushing the connector. Finally lock the connector by turning the
metal part of the connector clockwise. At this step never touch the
black plastic part of the connector. See figure 1.

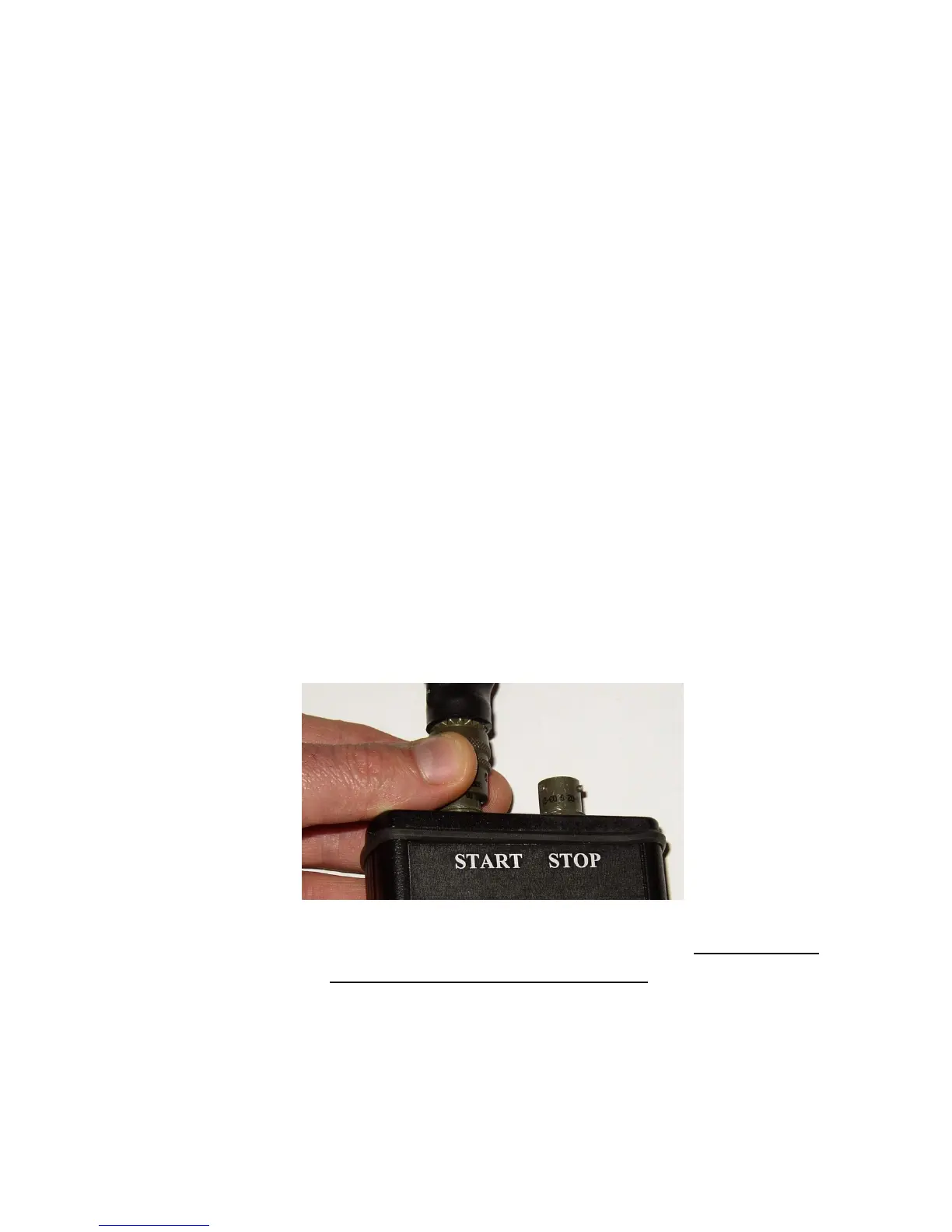

Figure 1. While connecting and disconnecting the transducers please
touch the metal part only. This is very IMPORTAN!. NEVER turn
the plastic part of the connector.
The longer and flat shape transducer is the start and the shorter and
cube shape is the stop transducer. Please do not change the
transducers.
