1. Locate point (front or rear)
2. Bird's-eye view
3. Locate Line (LL)
4. Height-Above-Ground (HAG) setting on
5. Ground level
6. Transmitter depth
7. Transmitter battery strength
When the HAG setting is disabled, the locator displays at
ground level and must be placed on the ground during depth
readings.

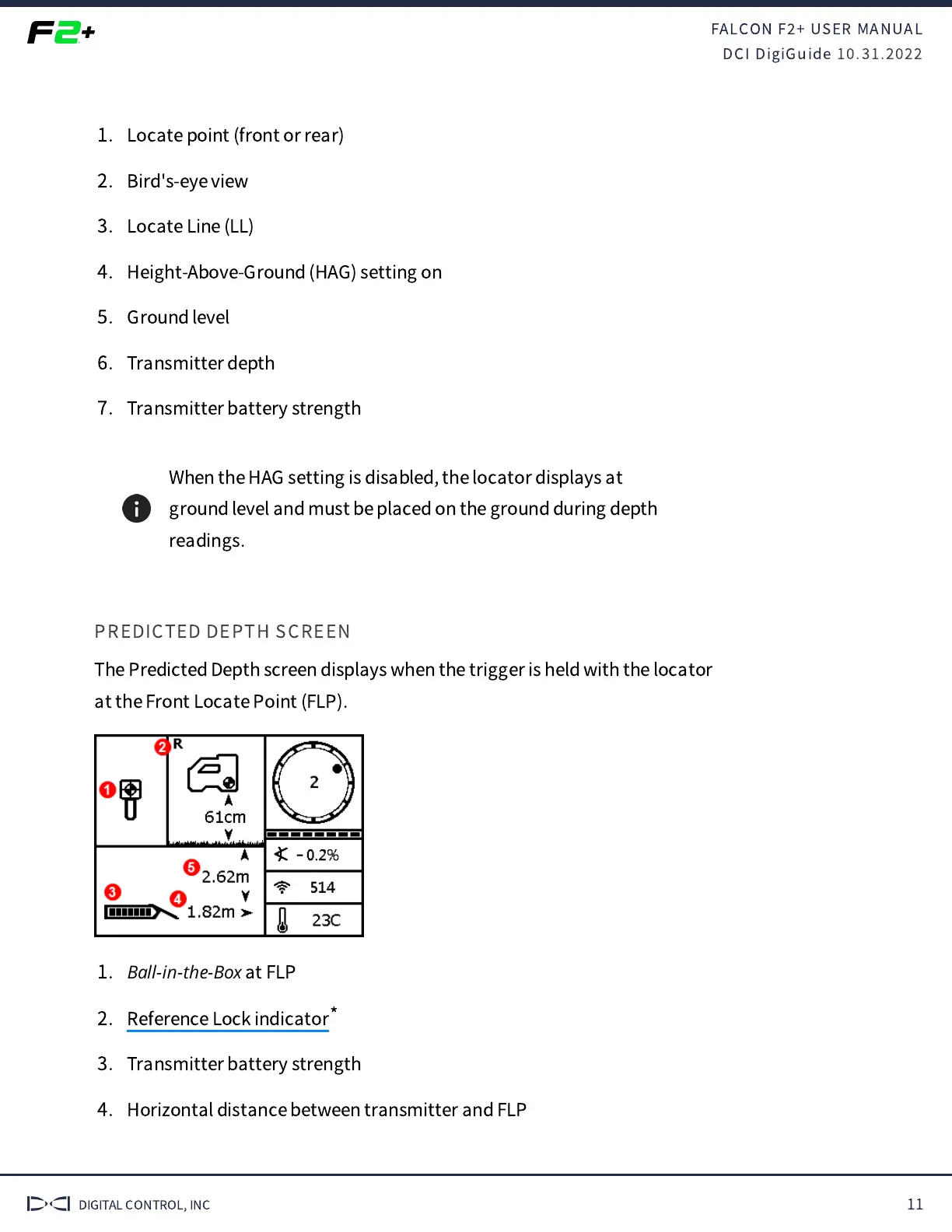

PREDICTED DEPTH SCREEN
The Predicted Depth screen displays when the trigger is held with the locator
at the Front Locate Point (FLP).
1.
Ball-in-the-Box
at FLP
2.
3. Transmitter battery strength
4. Horizontal distance between transmitter and FLP
Reference Lock indicator
*
