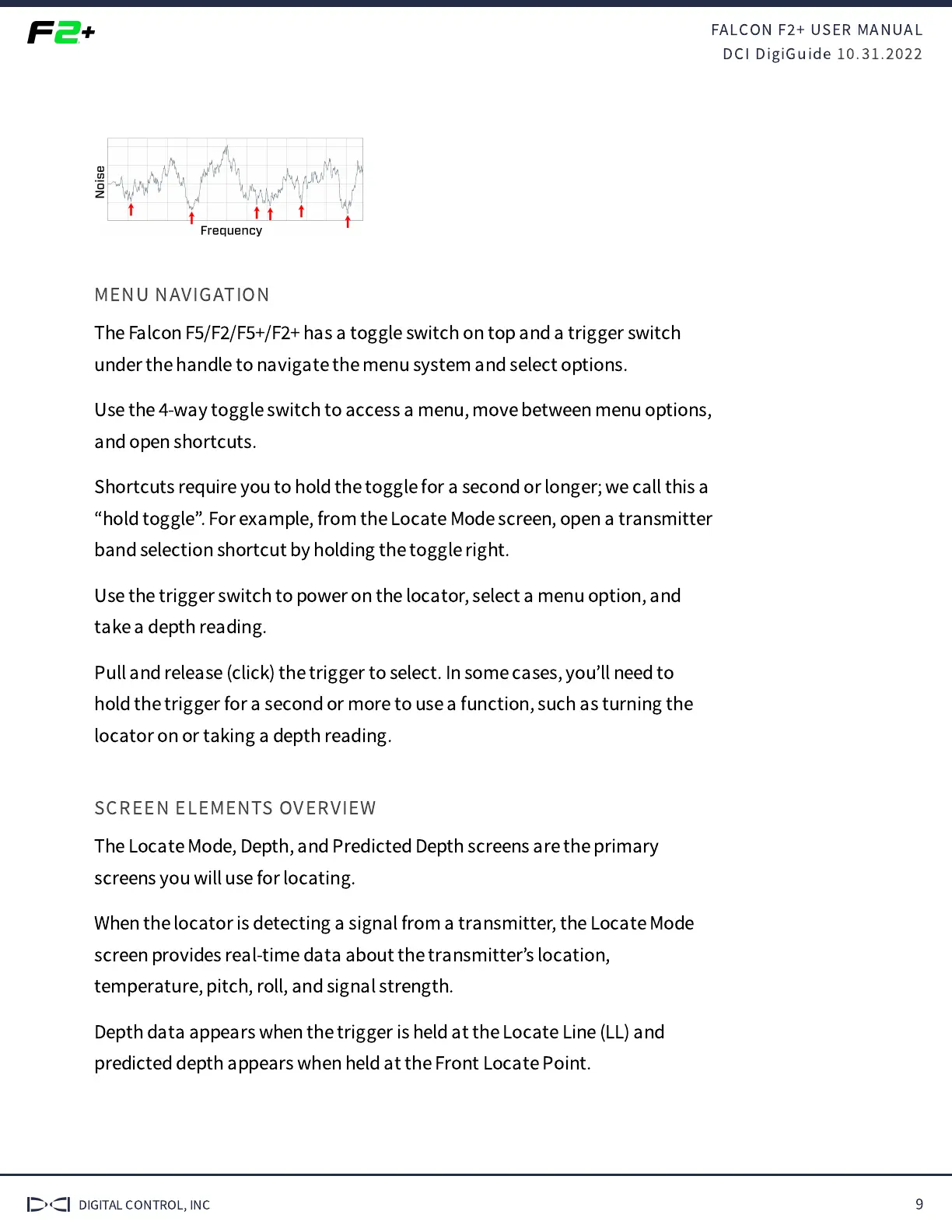

MENU NAVIGATION
The Falcon F
/F
/F
+/F
+ has a toggle switch on top and a trigger switch
under the handle to navigate the menu system and select options.
Use the
-way toggle switch to access a menu, move between menu options,
and open shortcuts.
Shortcuts require you to hold the toggle for a second or longer; we call this a
“
hold toggle
”
. For example, from the Locate Mode screen, open a transmitter
band selection shortcut by holding the toggle right.
Use the trigger switch to power on the locator, select a menu option, and
take a depth reading.
Pull and release (click) the trigger to select. In some cases, you
’
ll need to
hold the trigger for a second or more to use a function, such as turning the
locator on or taking a depth reading.
SCREEN ELEMENTS OVERVIEW
The Locate Mode, Depth, and Predicted Depth screens are the primary
screens you will use for locating.
When the locator is detecting a signal from a transmitter, the Locate Mode
screen provides real-time data about the transmitter
’
s location,
temperature, pitch, roll, and signal strength.
Depth data appears when the trigger is held at the Locate Line (LL) and
predicted depth appears when held at the Front Locate Point.
