4

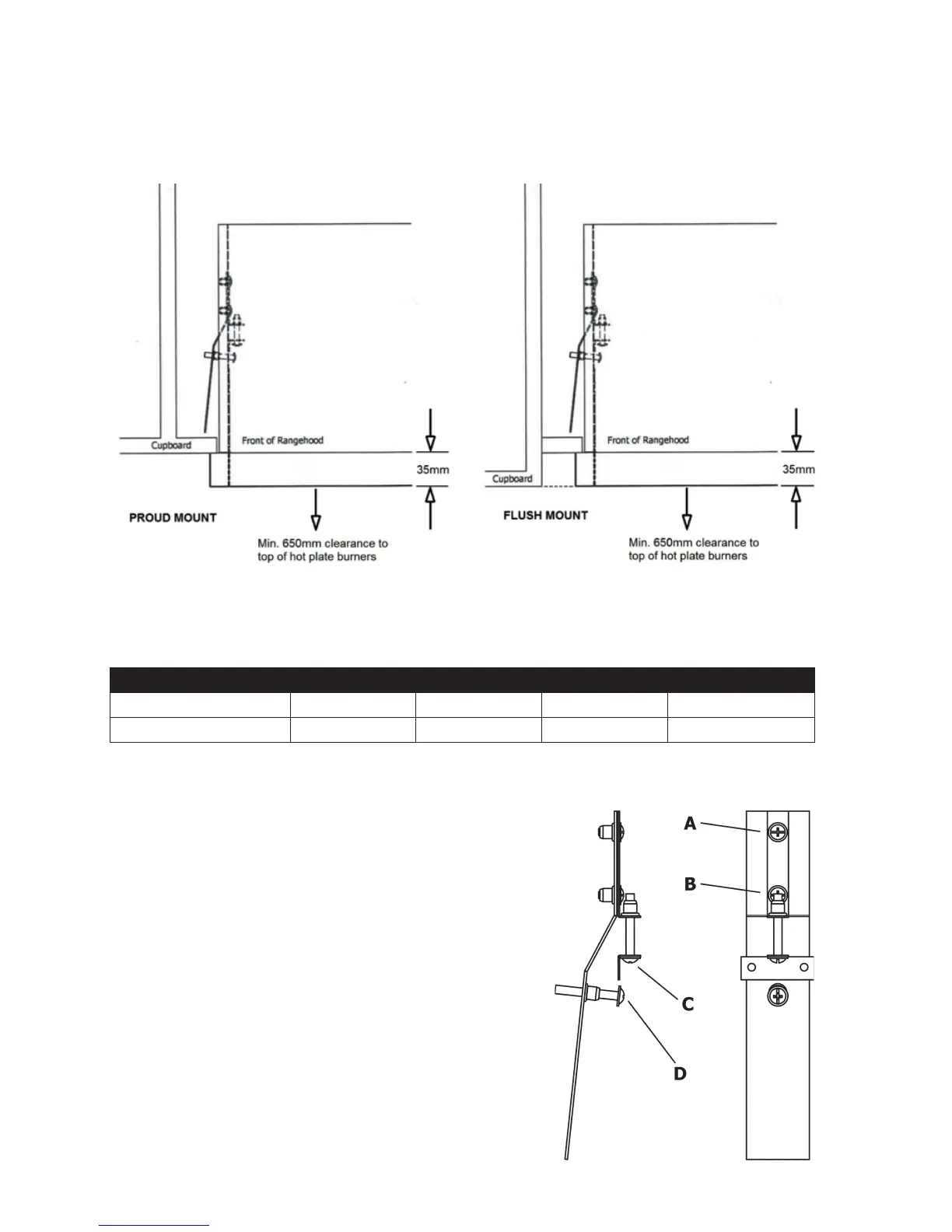

INSTALLATION INSTRUCTIONS
1. Loosen screws ‘A’ and ‘B’.
2. Turn screw ‘D’ anti-clockwise to extend
the outer spring bracket.
3. Insert the rangehood into the cut out.
Ensure spring brackets are positioned on top
of cupboard base.
4. Turn screw ‘C’ clockwise to align rangehood
with cupboard base. Do not over tighten.
5. Tighten screw ‘A’ by turning clockwise to lock
xing bracket.
6. Fit off ductwork as required.
7. To remove rangehood, turn screw ‘D’ clockwise.
8. An accessible 10A GPO is to provided near the
top RHS of the Rangehood for connection.
MODEL MOTOR BOX SIZE HOOD BASE SIZE
CUPBOARD BASE MIN.
CUT OUT SIZE
FALUC801 235 x 780mm 275 x 800mm 290 X 810mm 245 x 785mm
FALUC1002 235 x 980mm 275 x 1000mm 290 x 1010mm 245 x 985mm
CUPBOARD CUT OUT DIMENSIONS
FALUC801 & FALUC1002
MOUNTING OPTIONS
