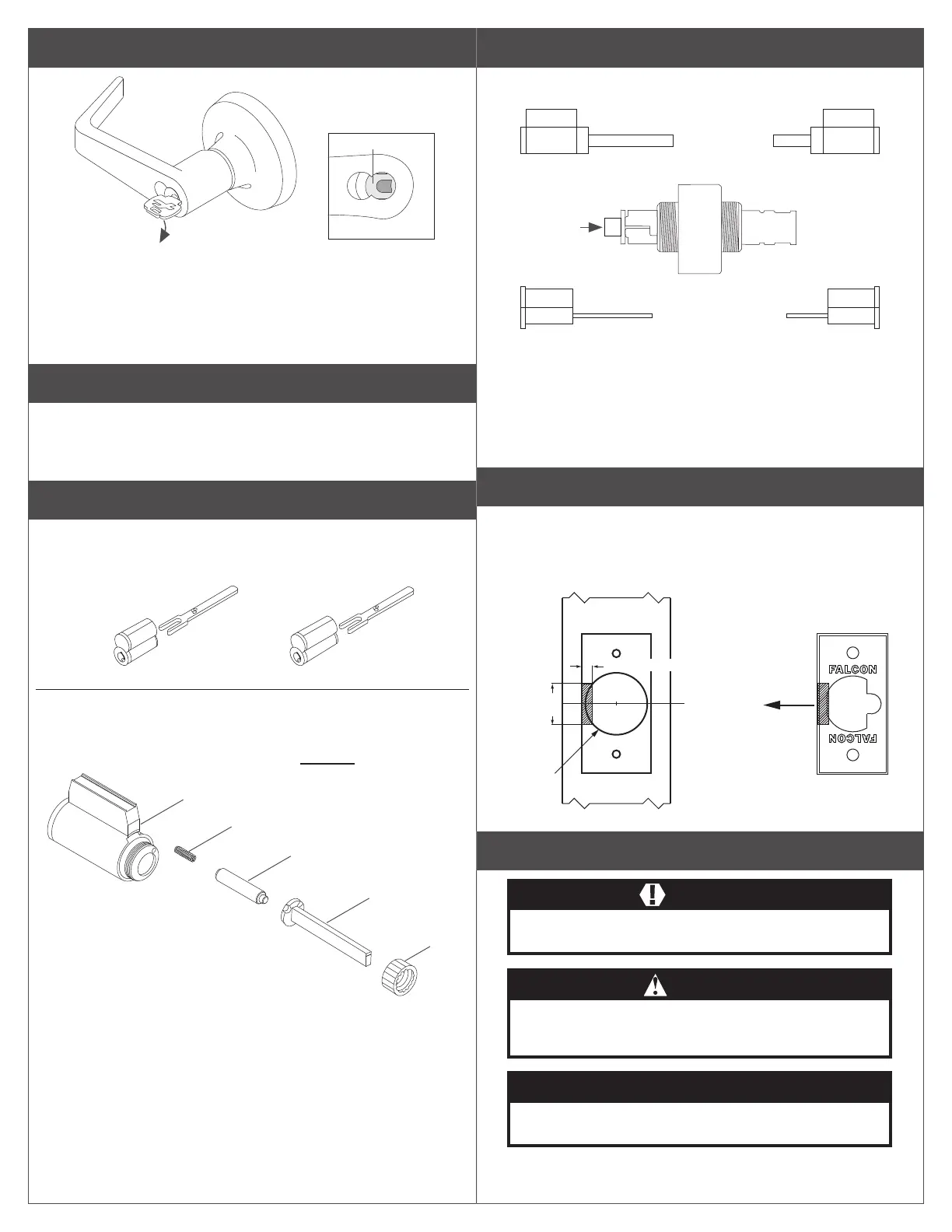

Falcon T Series Installation Instructions

5
Remove IC cylinder levers
Lever retainer
15°
• Insert the control key and rotate clockwise 15°. Pull the key to remove
the core.
• Insert at screwdriver into the gure 8 cylinder opening and into the
lever retainer.
• Depress lever retainer and slide lever o󰀨 spindle.
Reinstall IC cylinder levers
• Slide lever onto spindle and push on over the lever retainer.
• Pull on the lever to be sure the retainer is engaged.
• Reinstall the IC core with the tailpiece pushed into the core.
Interchangeable core tailpiece
Use the correct tailpiece with the IC core:
Six pin cores should use only the 6P tailpiece. Seven pin cores
should use only the 7P tailpiece.
FALCON
FALCON
6 pin core 7 pin core
Tailpiece installation
The tailpiece must be installed correctly for proper lock function.
All T-Series tailpieces should be installed vertically in the cylinder.
Cylinder
Spring
Pin
Cap
Tailpiece
T381 tailpiece only
Standard and IC Core
Long tailpiece Short tailpiece
Long tailpiece Short tailpiece
Outside standard
cylinder assy
Outside IC core assy
Inside standard
cylinder assy
Inside IC core assy
Clutch on
outside
See "Tailpiece installation" for standard cylinder tailpiece
installation.
See "Interchangeable core tailpiece" for IC core tailpiece
installation.
3/4 inch projection latch preparation
• On side of latch closest to door stop remove shaded area as shown.
Use a standard rotary le C\," maximum.
• Test the latch for t and function.
• Secure the latch with two #8-32 screws (provided).
Door stop
this side
⁷⁄₄₀" (0.175"), ¹⁵⁄₆₄" (0.234") deep
²⁄₃"
(0.660")
1" (25)
Dia. Hole
Latch faceplate
