INSTALLATION IN STEEL BEAM
Select a suitable location and orientation in the beam. The anchor may be installed in
any of three acceptable installation configurations; a vertical tensile load from the lower
flange, horizontal shear load from a flange, and horizontal shear load from the web of
the beam. In any flange installation, ensure the center of the drilled hole is at least 1½
in. from the edge of the beam. See Figure 4 for acceptable mounting orientations. Do
not exceed 90 degree bends. Figure 5 depicts an unacceptable orientation which
exceeds the maximum 90 degree bend.

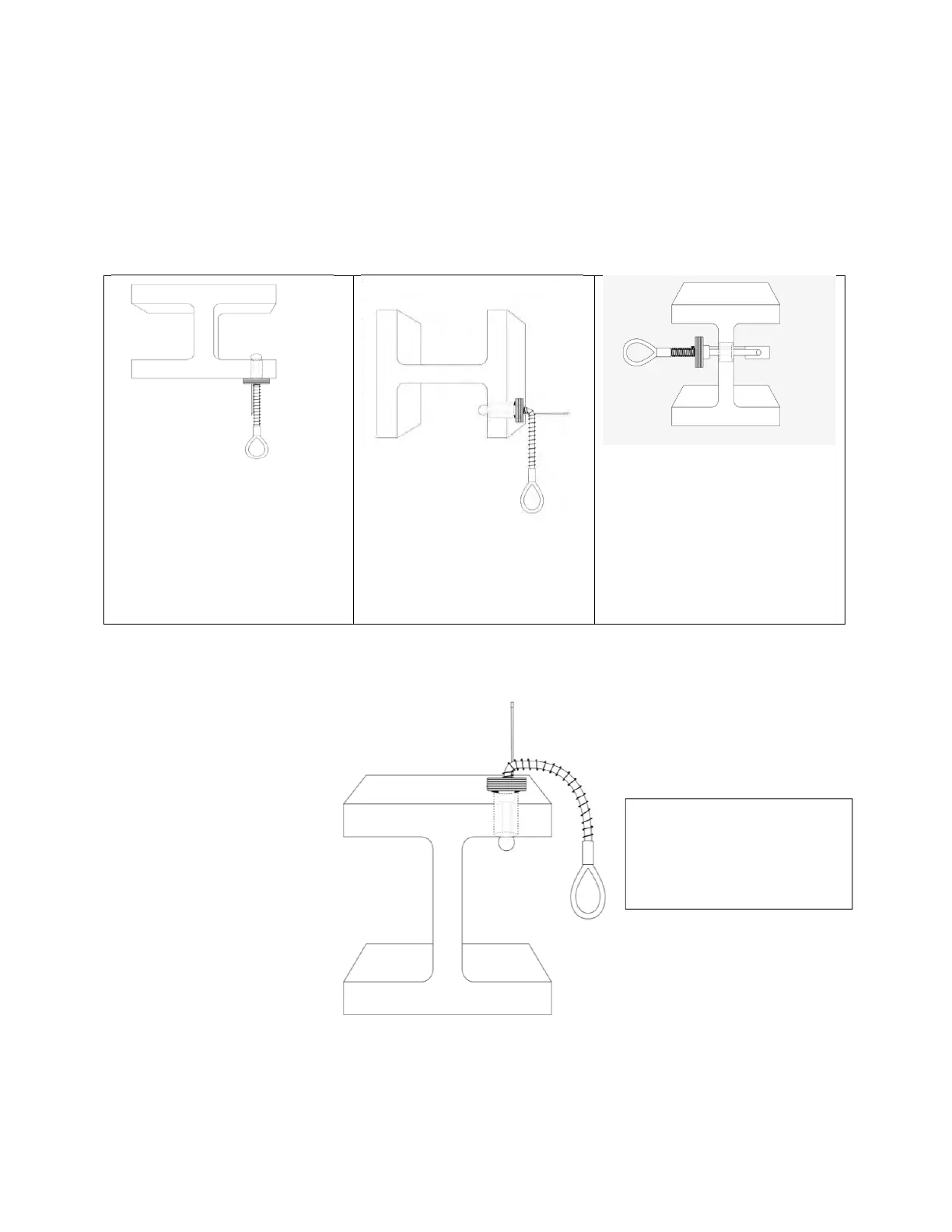

Figure 4. ToggleLok Orientation
Figure 5 – Unacceptable Mounting Orientation
In Flange With Vertical
Tensile Load
In Flange With
Horizontal Shear Load
In Beam Web With
Horizontal Shear Load
This mounting orientation
places a 180 degree load
on the ToggleLok and is
unacceptable
