FALMEC flipper User Manual

6
H
1
11 1/4"
287 mm
20 1/2"
520 mm
S
11 1/4"
287 mm
A
2
B
Ø 5/16
8 mm
3
4
x4
V1 (x4)
6

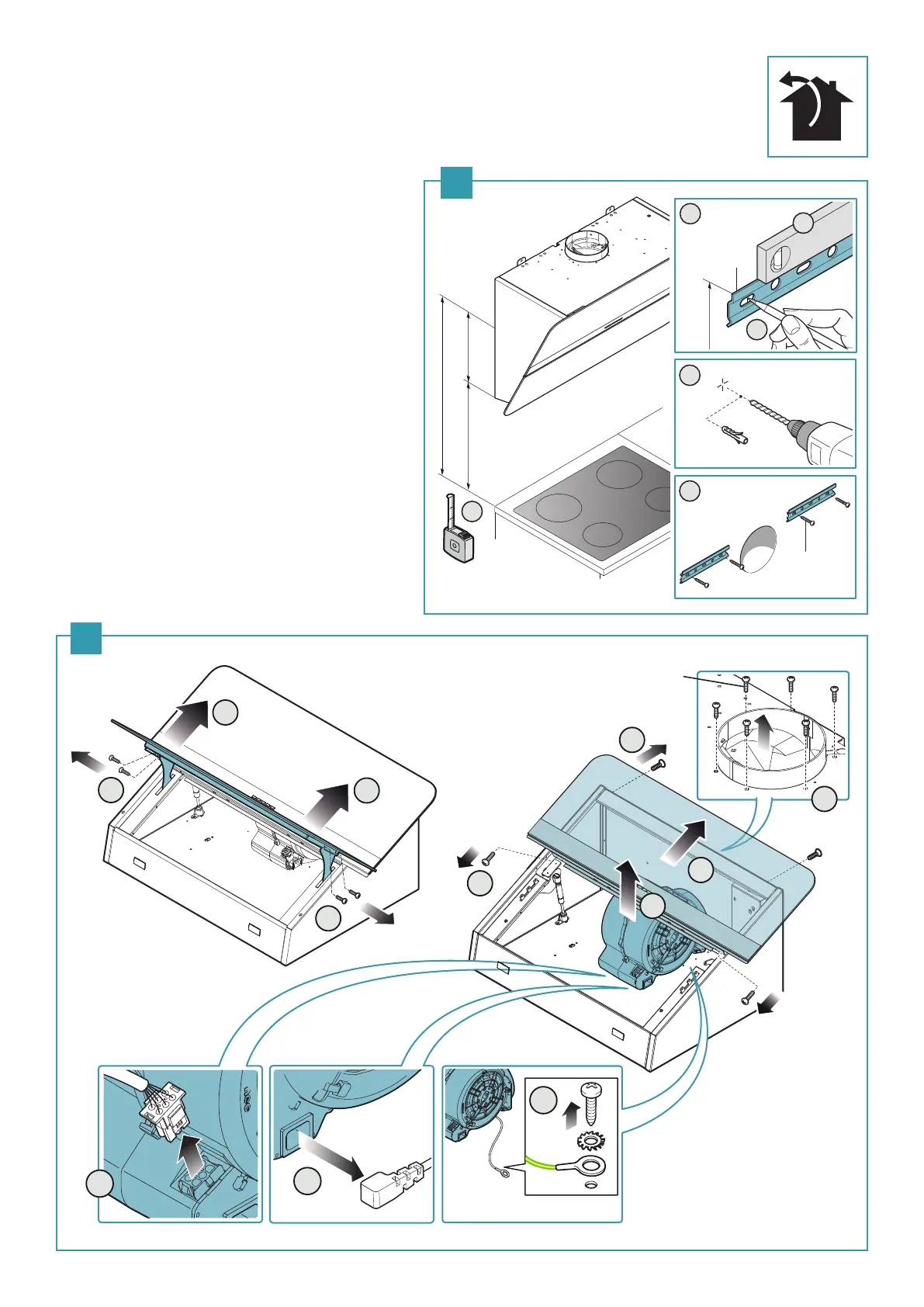

EN - Installation with rear outlet:
Measurements for installation (5). Motor repositioning (6).
FR - Installation avec une sortie arrière:
Mesures pour l'installation (5). Repositionnement du moteur (6).
ES - Instalación con salida posterior:
Medidas para la instalación (5). Reubicación del motor (6).
IT - Installazione con uscita posteriore:
Misure per l’installazione (5). Riposizionamento motore (6).
B
A
V7
(x6)
8
Panel control connector
5
Power cable
6
3
4
9
3
1
2
2
1
7
5
6

FALMEC flipper Specifications

General

Pressure (Pa)	500
Number of speeds	4
Type of extraction	-
Noise level (low speed)	35 dB
Maximum extraction power	800 m³/h
Noise level (high speed)	62 dB
Noise level (medium speed)	45 dB
Minimum distance from electric hob	520 mm
Type	Wall-mounted
Control type	Buttons
Product color	Turquoise
Motor included	Yes
Built-in display	No
Exhaust location	Top
Housing material	Glass
Exhaust connection diameter	150 mm
Bulb type	LED
Bulb power	1.2 W
Number of bulbs	2 bulb(s)
Grease filter type	Charcoal
Motor power	260 W

Weight and Dimensions

Depth	454 mm
Width	850 mm
Height	510 mm
