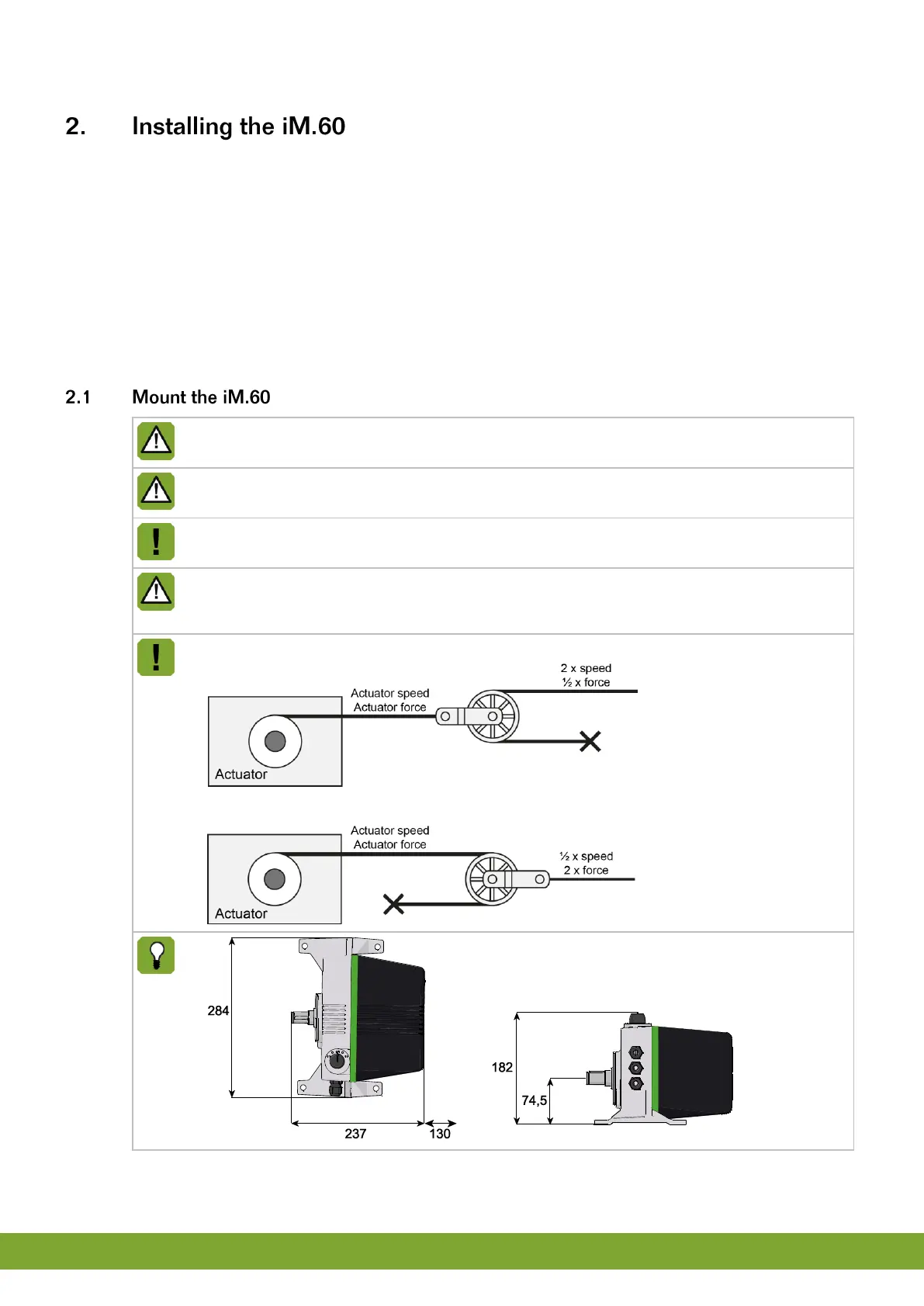

Install the iM.60 and associated components as follows:
1. Place the iM.60 (see page 3)
2. Mount the coercion roller (see page 4)
3. Mount the steel cable on the cable winch drum(see page 4)
4. Mount the belt drum and belt (see page 5)
5. Mount the pipe chain drive (optional) (see page 5)
6. Mount the CE cover (see page 6)
7. Connect the iM.60 (see page 7)
8. Test the iM.60 (see page 10)
Never place the iM.60 in a place where the weather has direct influence (not in the sun, not in places
where the temperature can rise sharply etc.).
Place the iM.60 only inside the house.
Place the iM.60 at such a height that the manual control can be used.
Do not place the iM.60 with the driveshaft pointing upwards. This keeps water from entering the motor
via the drive shaft. If you do place the iM.60 with the driveshaft pointing upwards, then mount the CE
cover on the shaft.
Cable / pulley combination
