A.4.4.1.
Slope Adjusting Jacks
It is the part connecting the coulter frame part to the
main frame. They are coupled to the top point of the
coulter frame and both jacks can be adjusted
simultaneously with a single movement thanks to the
tubular shaft placed between them.
Jack has a scale showing the extension distance.
Hence, the working lengths of the jacks can be
equalized after maintenance.
Stroke limiters are positioned on the sides of the jacks to
ensure that the jack operates in appropriate intervals.
Ensure that the limiters are on the jack during operation.

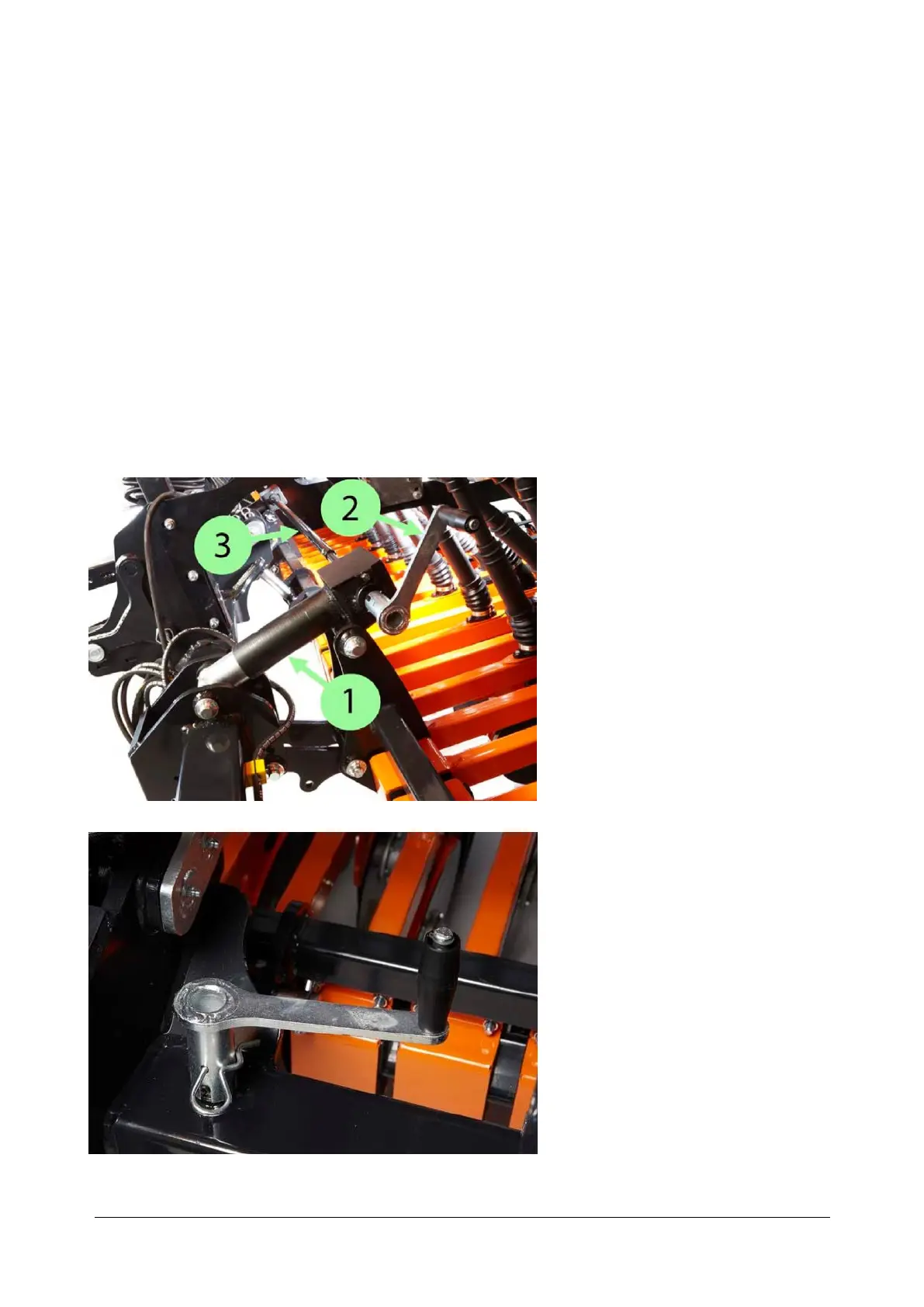

Slope Adjusting Jack and Sections:
1.
Slope Adjusting Jack
2.
Crank Handle
3.
Jack Shaft
Mounting Position of the Crank Handle on the Frame
