A.4.4.
Coulter Frame Part
Coulter frame is the part connecting the coulters to the
main frame. The coulter frame functioning with off-center
parallelogram system is coupled to the main frame with
two bottom swings and two slope adjustment jacks. The
coulter frame can change the front and rear slope by the
extension and contraction of the slope adjusting jacks that
are connected to the upper section. All the pressure
wheels on the coulter can be lifted and lowered
simultaneously with this movement.

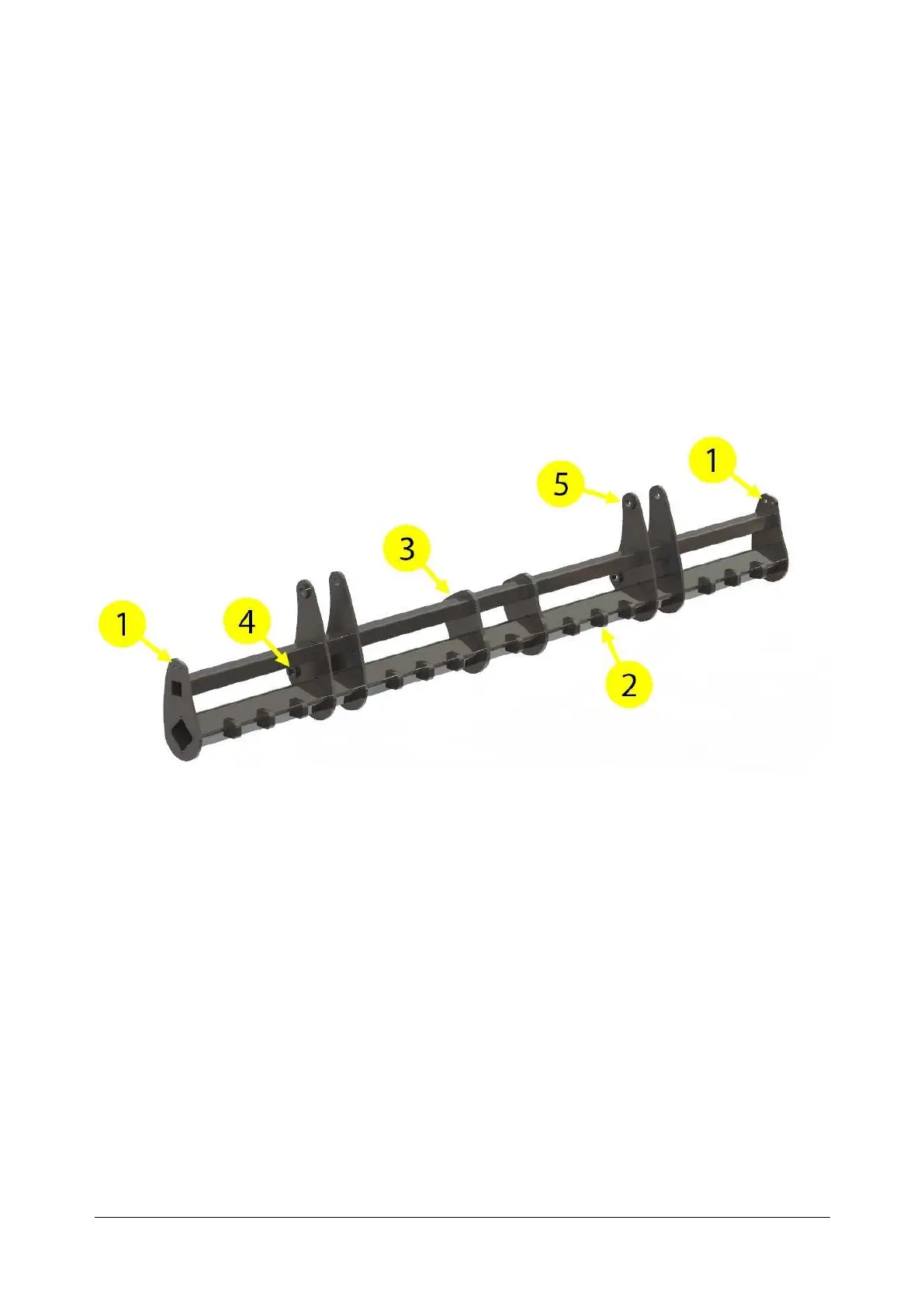

1.
Clutch Actuator Connection
2.
Coulter Limiter Tabs
3.
Piston Connection
4.
Bottom Swing Connection
5.
Slope Adjusting Jack Connection
