A.4.6.2.
Tire Scraper Steps
Tire Scraper Step
Your grain drill is equipped with 2 steps that allow
climbing on the loading platform on both sides and
serving as mud scraper for the right and left tire.
The position of the steps is designed in adjustable
structure in order to prevent performance loss of the
scrapers in case tire wear.
For detailed information refer to: (C.8. Tire Scraper
Distance Adjustment)
A.4.7.
Coulters

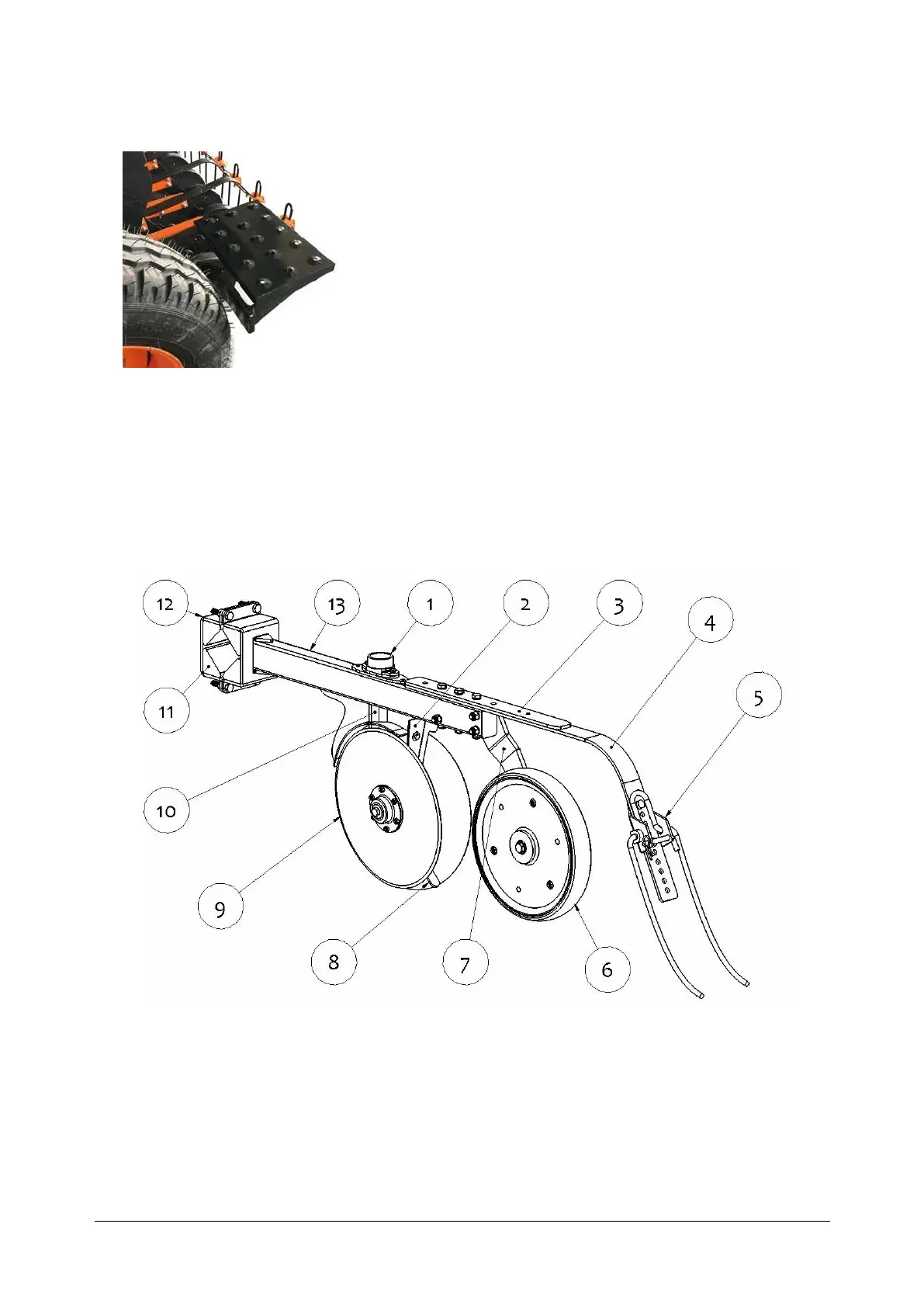

Front Coulter and Main Sections
1.
Top Seed Pipe 8. Rubber Latch
2.
Inner Scraper 9. Disc
3.
Harrow Spring Support Plate 10. Bottom Seed Pipe
4.
Harrow Spring 11. Triangle Chock
5.
Harrow Mechanism 12. Coulter Bracket
6.
Pressure Wheel 13. Frame
7.
Pressure Wheel Chassis
