A.4.7.1.
Harrow Mechanism
The harrow mechanism used in your grain drill has a
breaking protection and adjustable pressure, height
and slope setting. Also, it can be disabled when not
required.
For the adjustments of harrow mechanism
refer to: (C.10. Harrow Adjustments)

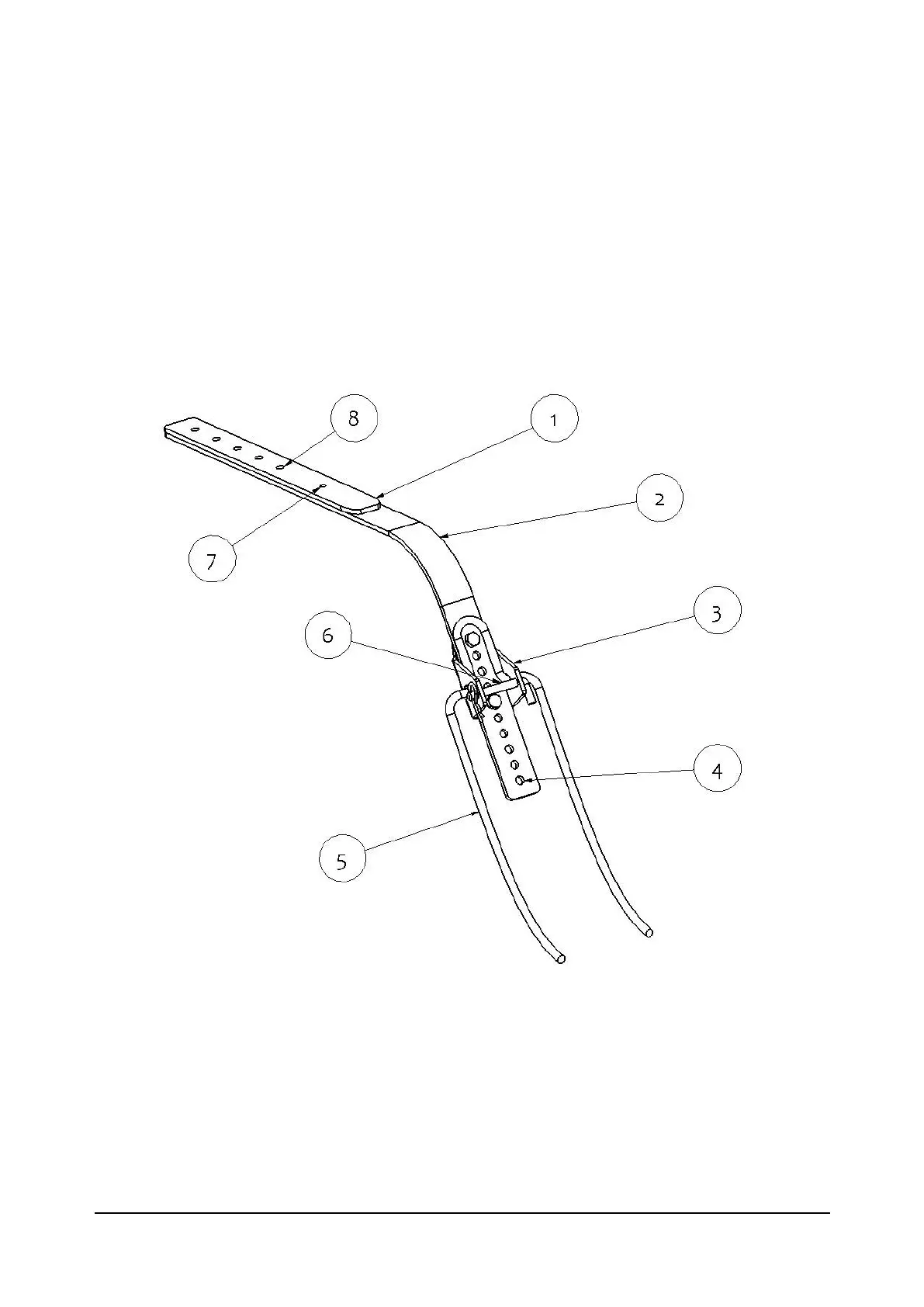

1.
Hardness adjustment plate
2.
Harrow Spring
3.
Harrow Block
4.
Harrow Height Adjustment Slot
5.
Harrow Pin
6.
Limiting Pin
7.
Counter Slot
8.
Frame Connection Slot
