Tracking System and work computer
not available in Australia
Distributor

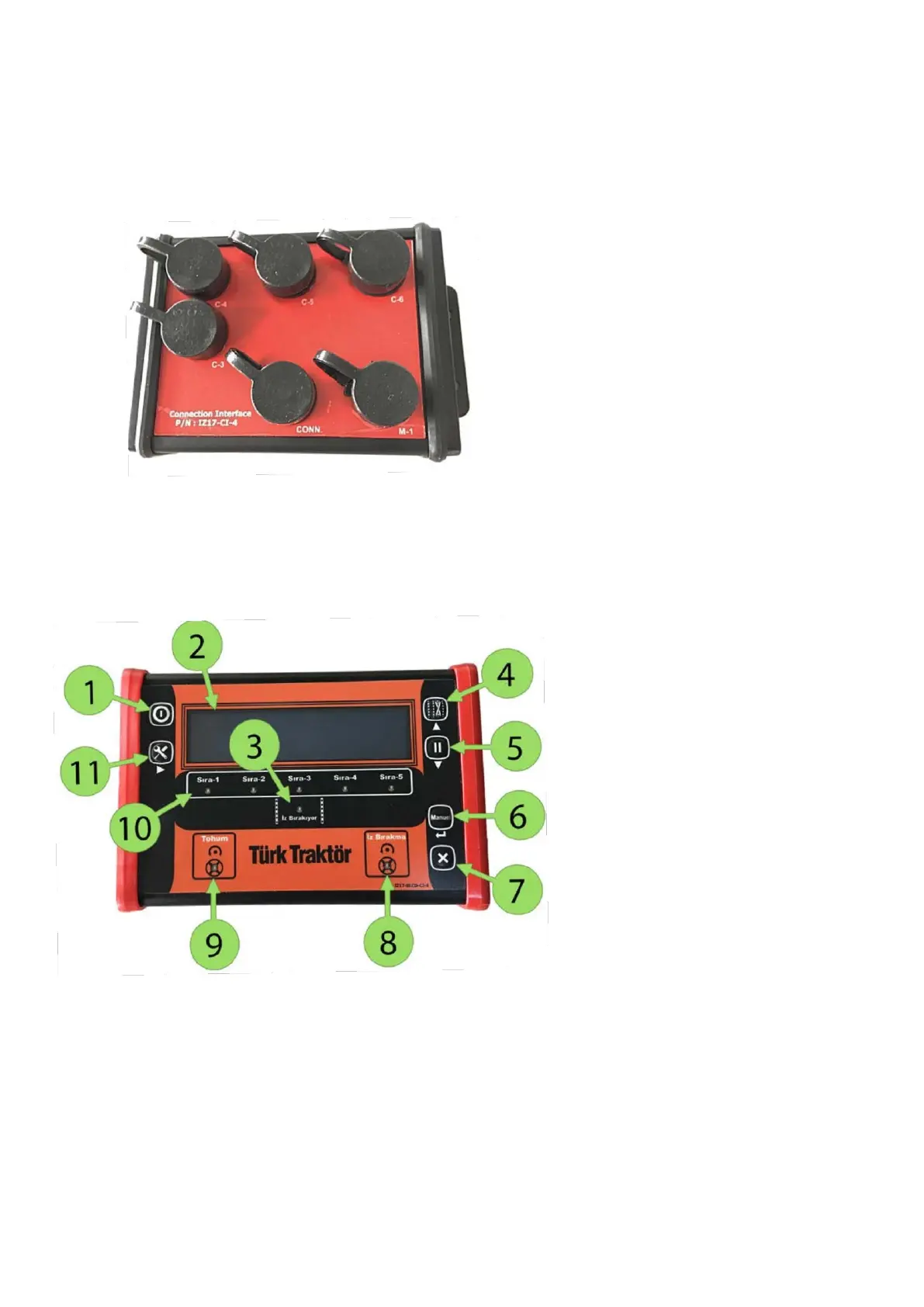

Distributor Connector Sockets
C-3: Wheel sensor connection
C-4: Marker sensor connection
C-5: Seed shaft sensor connection
C-6: Tracking shaft sensor connection
Conn: Control Display and power
connection
M-1: Magnetic clutch connections
Control Display
1.
On/Off Button
2.
Info Display (2 rows)
3.
Tracking is on Warning Light
4.
Up Arrow - Increase
(Shortcut Tracking
Adjustment Button +)
5.
Down Arrow -
Decrease (Shortcut
Tracking Adjustment
Button -)
6.
Manual Control/Confirm Button
7.
Delete/Cancel Button
8.
Tracking Shaft Control Light
9.
Seed Shaft Warning Light
10.
Row Tracking Lights
11.
Settings Button
Control Display
