Maintenance and Repair
E.1.
Main Maintenance Points and Variable-Speed Transmission
D.1.1 Main Maintenance Points:
The points to be regularly maintained and lubricated on your
grain drill are listed below.
D.1.1.1. Slope Adjustment Jacks:
Each jack has 4 greasers and there are 8 greasers in total (on
the left).
D.1.1.2. Transmission Chains:

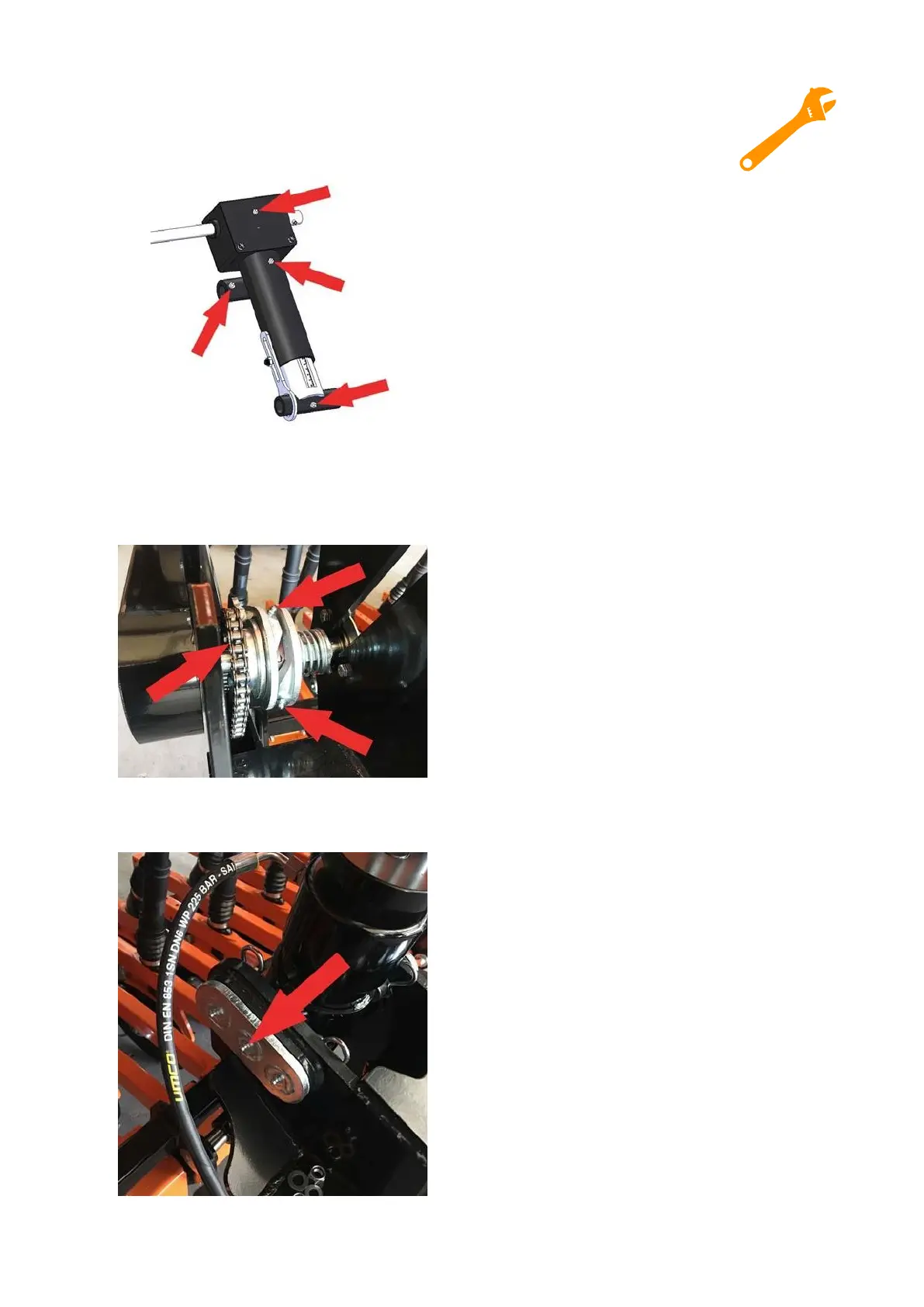

Slope Adjustment Jack
Greaser Positions
There are 6 sets of chains/gears in models with fertilizer and
3 in models without fertilizer at the right and left edges and
inside the chassis (bottom left) and chain housings (bottom).
Clutch Greasers and
Transmission Chain
Depth Adjustment Lift
Connection Shaft Greaser
