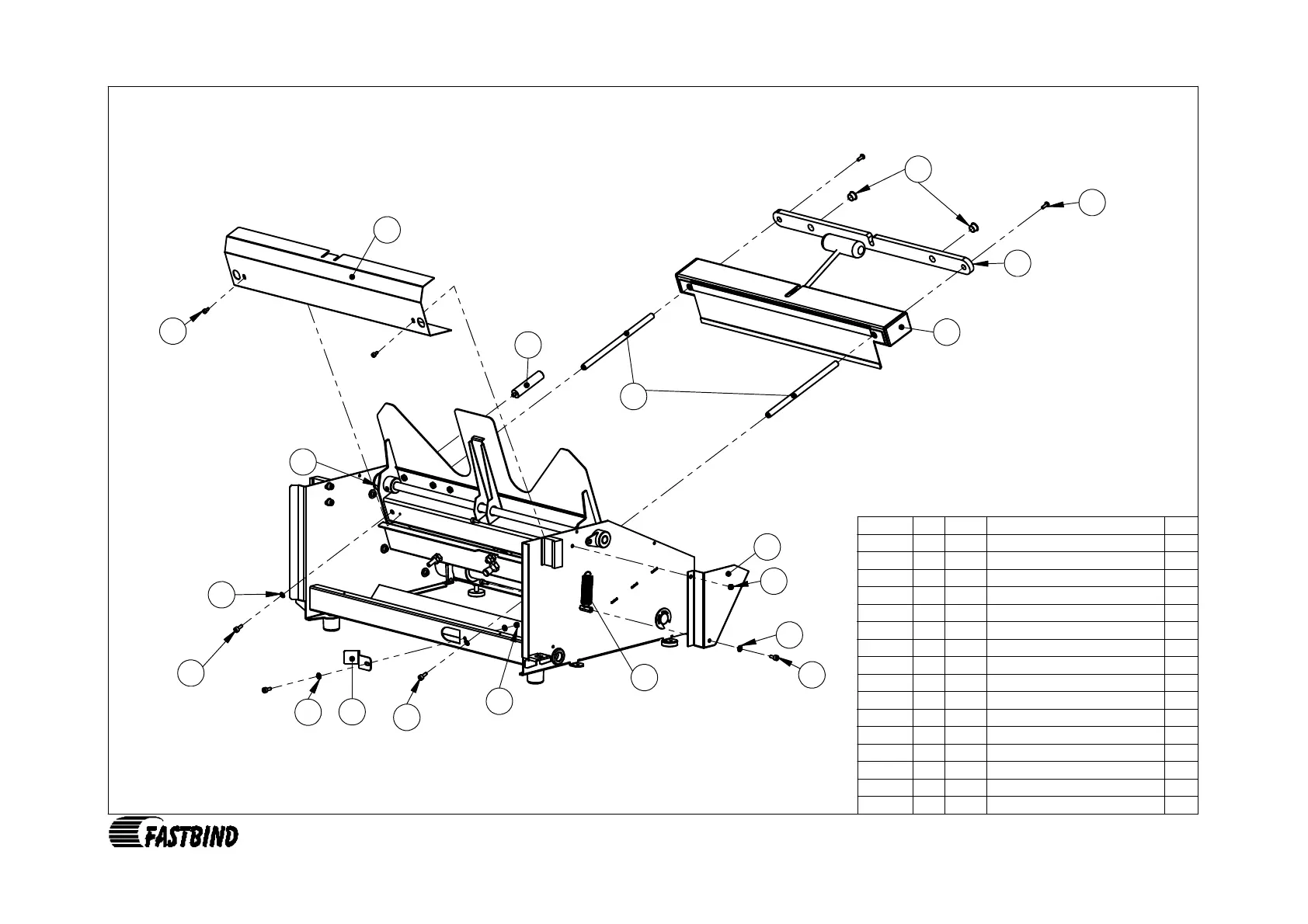

ITEM NO. ID Versio Name QTY.
4 3377 a3 Clamp A3 1
10 3373 a1 Clamp guide rod XT 2
11 3351 a1 Guide support 1
12 3645 a1 Softcover paperguide 1
13 3500 c2 Table back cover 1
21 3562 a4 Cable bracket 1
27 2317 STD Washer -A M5 4
28 1813 STD Panel screw 5x12 2
29 1808 STD Hex socket screw M5x12 20
30 3663 STD Retaining screw M8x10 5
40 4050 STD Plug 2
50 2236 STD Hex socket screwM4x8 2
52 3720 a2 Spring guard 1
54 2335 STD Nyloc nut M5 1
55 1822 STD Serrated washer 5 mm 3
56 1829 STD Hexagon nut M5 1
3334 c1
Page:
Name:
17-06
Frame
Part no+ version:
www.maping.com
