7.5 chanching the glue catridge
7. Glue carTrIdGe HandlInG
• Table needs to be in down position
• Remove thermal casing and heat shield
o
WARNING!
▪
When glue cartridge is heating up , all related parts
and surfaces become hot. This includes glue cartridge,
heating dock, glue tank cap and possible glue drops from
glue cartridge. They can be hot for a long time even if
the machine is switched off - or glue cartridge has been
removed
▪
DO NOT TOUCH ANY HOT SURFACE AT ANY TIME OR
YOU RISK INJURY
▪
Do not touch
▪
Use the gripper when handling the hot glue cartridge and
cap hook only for glue tank cap.

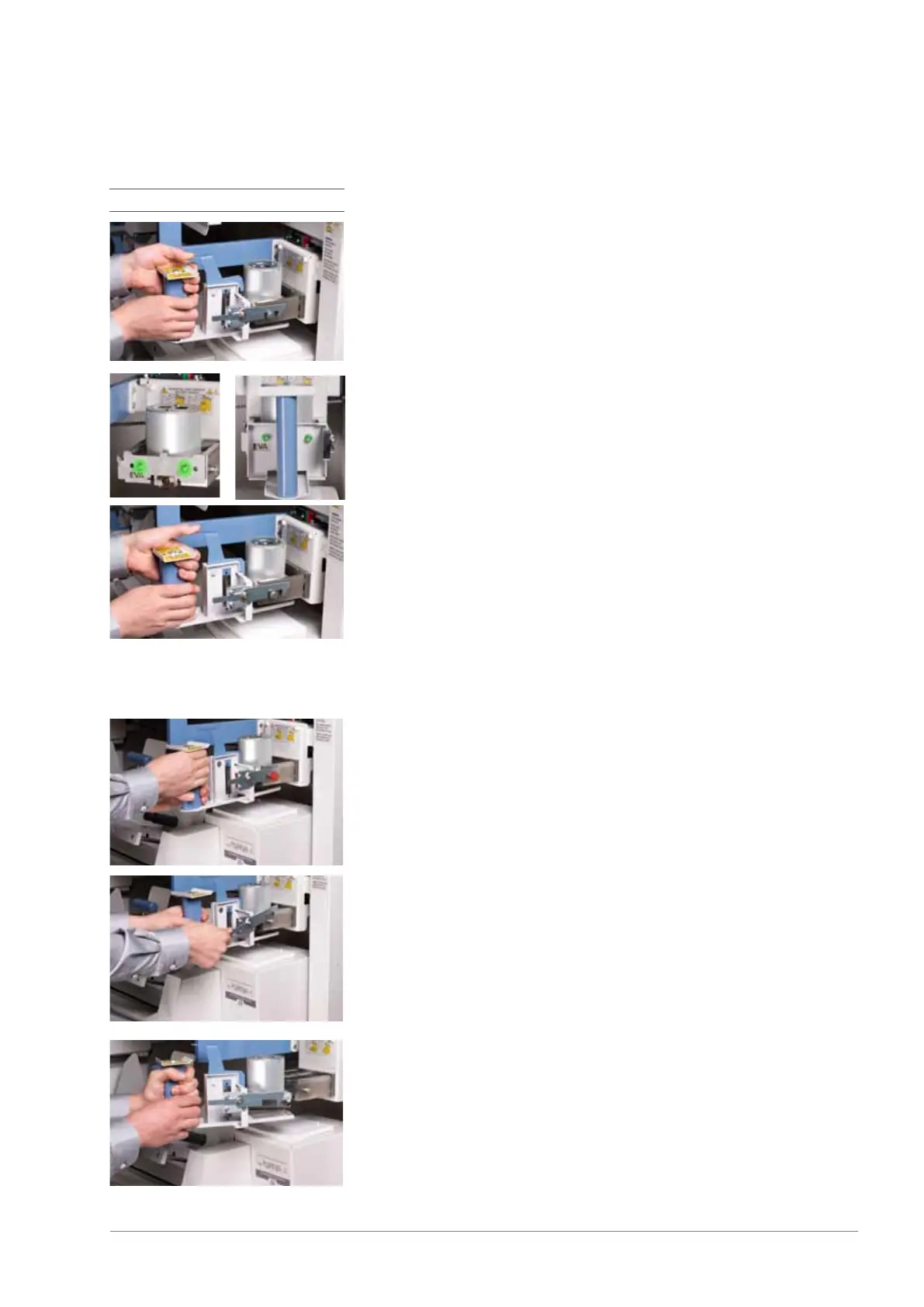

• Place the gripper on glue cartridge by pressing blue locking lid
and push the gripper to its place using the guiding screws marked
in green highlight in the image.
• Release the blue locking lid trigger once the cartridge is placed
correctly
• Securely hold the gripper with both hands with the blue handle.
• Pull the gripper towards you gently until safety latch (highlighted in
red) touches the safety stop
• Press the safety latch down, pull the gripper out and store it in the
storage are on the left side of the machine
o
WARNING!
▪
If glue cartridge is tilted, the cap can come off and hot
glue can spill out
▪
DO NOT TOUCH ANY HOT SURFACE AT ANY TIME OR
YOU RISK INJURY
▪
Keep the gripper always in upright position.
▪
Store the gripper in the locker, making sure it is properly
installed (see locker installation instructions).
7. GLUE CARTRIDGE HANDLING
lIsÄÄ KuVaT:
1. KaKsI KorKKIa
2. KorKIn aVausTyöKalu
• Install new cartridge as in section 7.3
