adding glue
8. addInG Glue and usInG THe byPass ValVe
• !! IMPORTANT!! Ensure that the fume extraction device is
connected and switched on
• Lift the thermal case cover and place it in the designated area.
o
WARNING!
▪
DO NOT TOUCH ANY HOT SURFACE AT ANY TIME OR
YOU RISK INJURY
▪
Use only the glue cap handle to move the glue cap.
• Move the heating dock sideways under the fume extractor bypass
vent using the applicator handle , and open the vent
• Remove the cap from the cartridge with the cartridge cap hook
and place the cap on storage tray.
o
WARNING!
▪
The glue cartridge cap is hot! DO NOT TOUCH ANY
HOT SURFACE AT ANY TIME OR YOU RISK INJURY
o
WARNING!
▪
Hot PUR glue emits fumes which can be harmful if
inhaled. Before removing the cap, ensure that
-
the externally connected fume extractor is on and
operating
-
and the glue cartridge is securely connected in the
heating dock, positioned under the bypass vent, which
must be in the open position.
• Installthellingfunnelontopofthegluecartridge.
o
WARNING!
▪
The glue cartridge is hot! DO NOT TOUCH ANY HOT
SURFACE AT ANY TIME OR YOU RISK INJURY

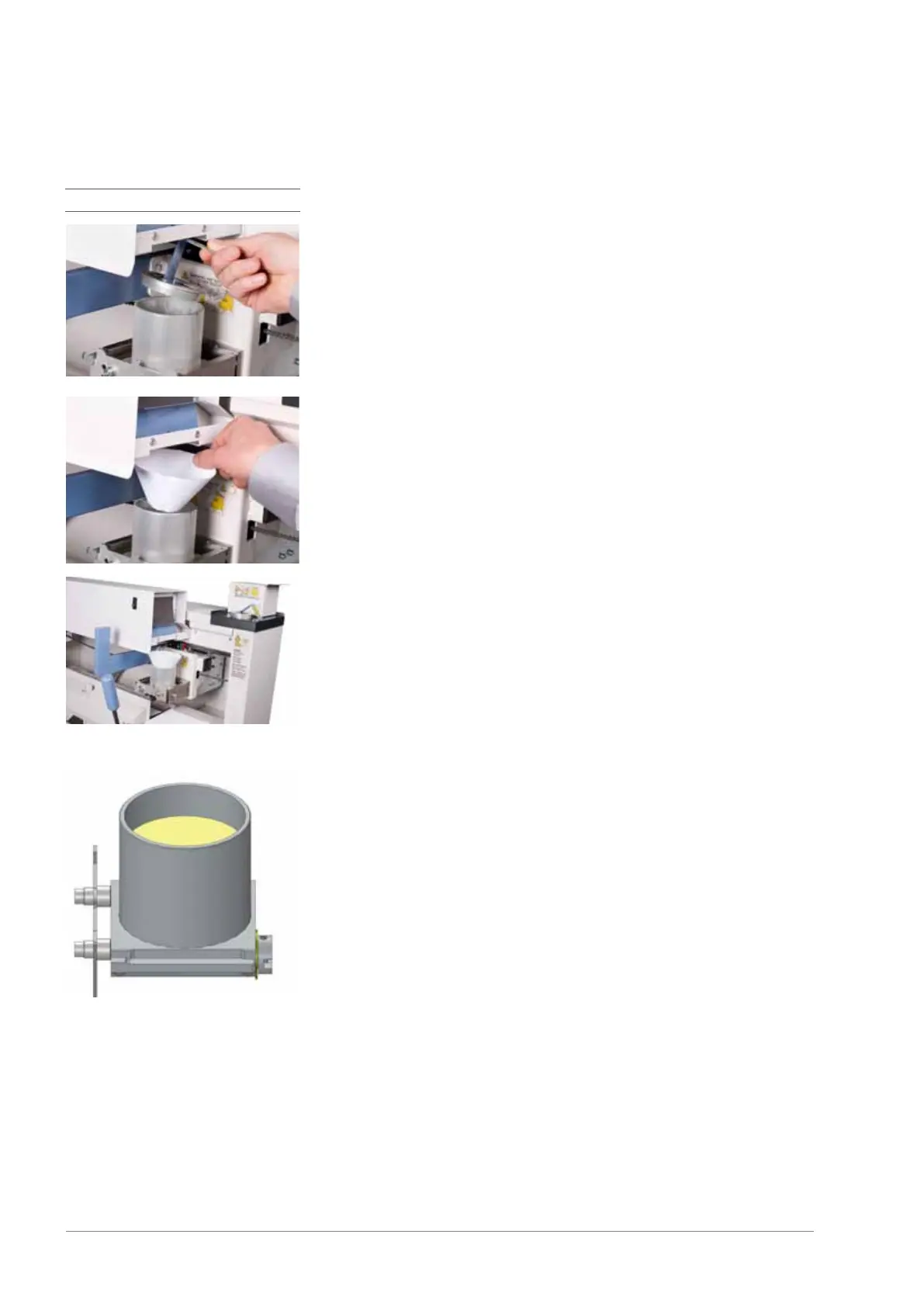

• Addmoreglue,maximumllinglevel2/3ofthecartridgeheight,
see the picture.
o
WARNING! DO NOT OVERFILL
▪
Risk of injury !
▪
Risk of machine failure!
• Removethellingtunnel
• Replace the cap on the glue cartridge, using the cap tool.
• Move the heating dock back to home position
• Replace thermal casing covers
• Close the vent
• Wait a minimum 10 minutes before resuming normal operations
