2. PacKaGe conTenTs
2. PACKAGE CONTENTS
1. PUREVA XT perfect binder
2. storage locker
3. 2 storage locker ring magnets
4. 2 glue cartridge grippers
5. 2 glue cartridge caps
6. cap hook (tool for glue cartridge cap)
7. EVA glue cartridge
8. PUR glue cartridge
9. soft cover nipping tool front
10. soft cover nipping tool back
11. hard cover nipping tool front
12. hard cover nipping tool back
13. thermal casing
14. front heat shield
15. storage tray
16. drop cards
17. llingfunnels
18. fume extraction adapter 50 mm
19. fume extraction adapter 100 mm
20. 4 fastenin screws for fume extraction adapter
+ 4 washers
21. Hex key 4 mm
22. Hex key 2,5 mm (for nipping bar adjustment)
23. Power cord

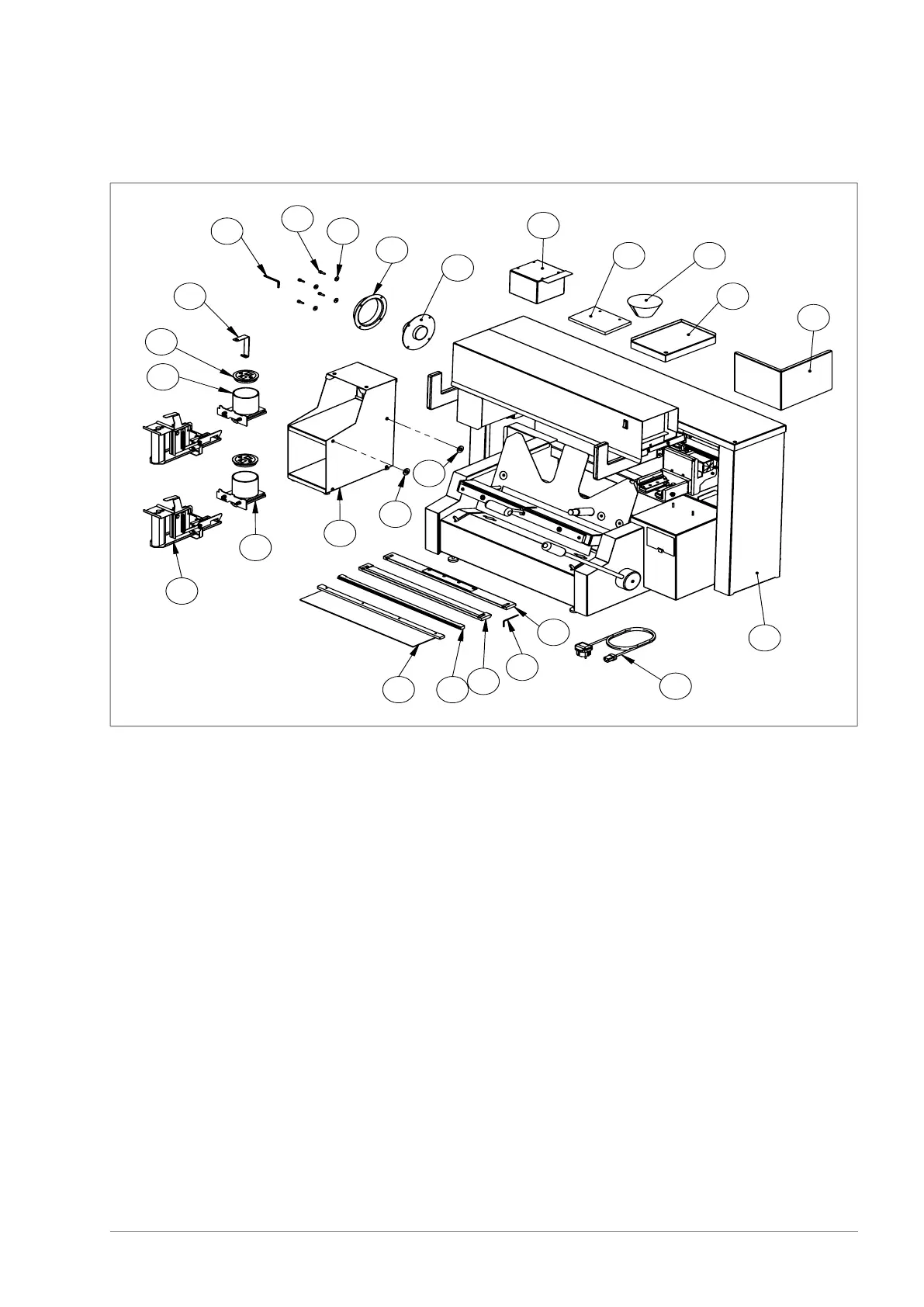

Figure 2-1 Package Contents
