4 SETTING INTO OPERATION

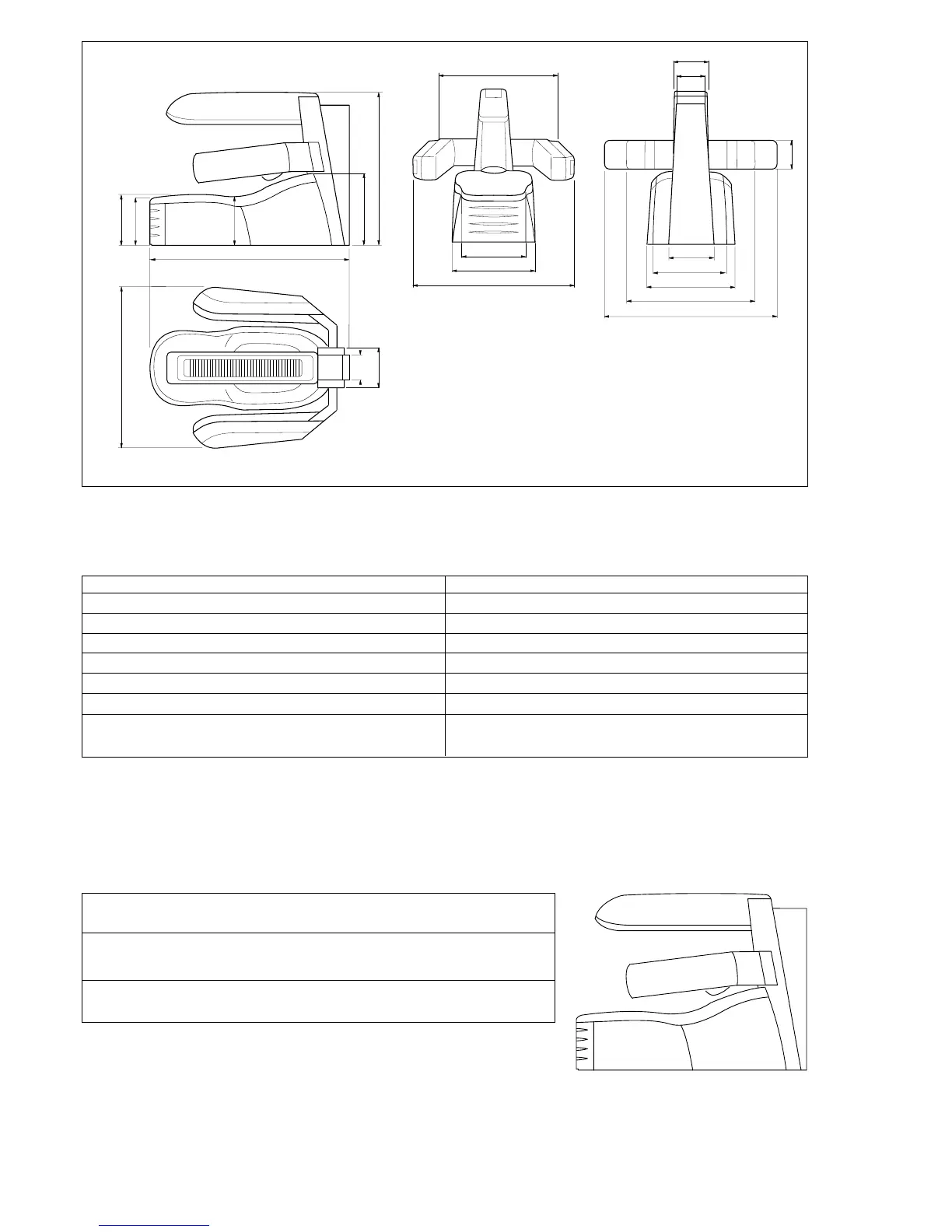

4.1 Technical data and dimensions
Designation SunBoard XTT
Type of unit 7823
Power (W) 13.500
Operating voltage (V) 3PE~60 Hz 220 V 50 A
Fusing (A) 3 x 50 A (K 50)
Weight (kg) 480
Dimensions Length (mm) 2.330
Width (mm) 1.950
Height (mm) 1.920
Noise level <70dB (A).
Room temperature for operation max. 95°F (35°C).
The place of installation has to show a load-bearing capacity of at least 500 kg/m² and has to be even.
*We reserve the right to make technical changes
LAMP CONFIGURATION
If the lamps are not placed in the correct position, this may result in a loss of performance and lifetime. Please
ensure to use the lamps as described below and place them as shown in the picture:
The designation of the lamps is printed on the ceramic socket of the lamp.
Please note: High pressure bulbs loose performance after a certain time that is not remarkable visually. You have
to adapt to this loss in performance by using longer tanning sessions. uwe recommends to exchange the lamps
after 500 hours.
Center arm: 5 x 1 kW lamp BQ 1176 Z4, Art. No. 45006404 (Pos. 1 - 5)
Lateral arms: 4 x 1 kW lamp BQ 1176 Z4, Art. No. 45006404 (Pos. 1 - 4)
Base 10 x 400 W lamp BQ 477 E, Art. No. 8000 7738
