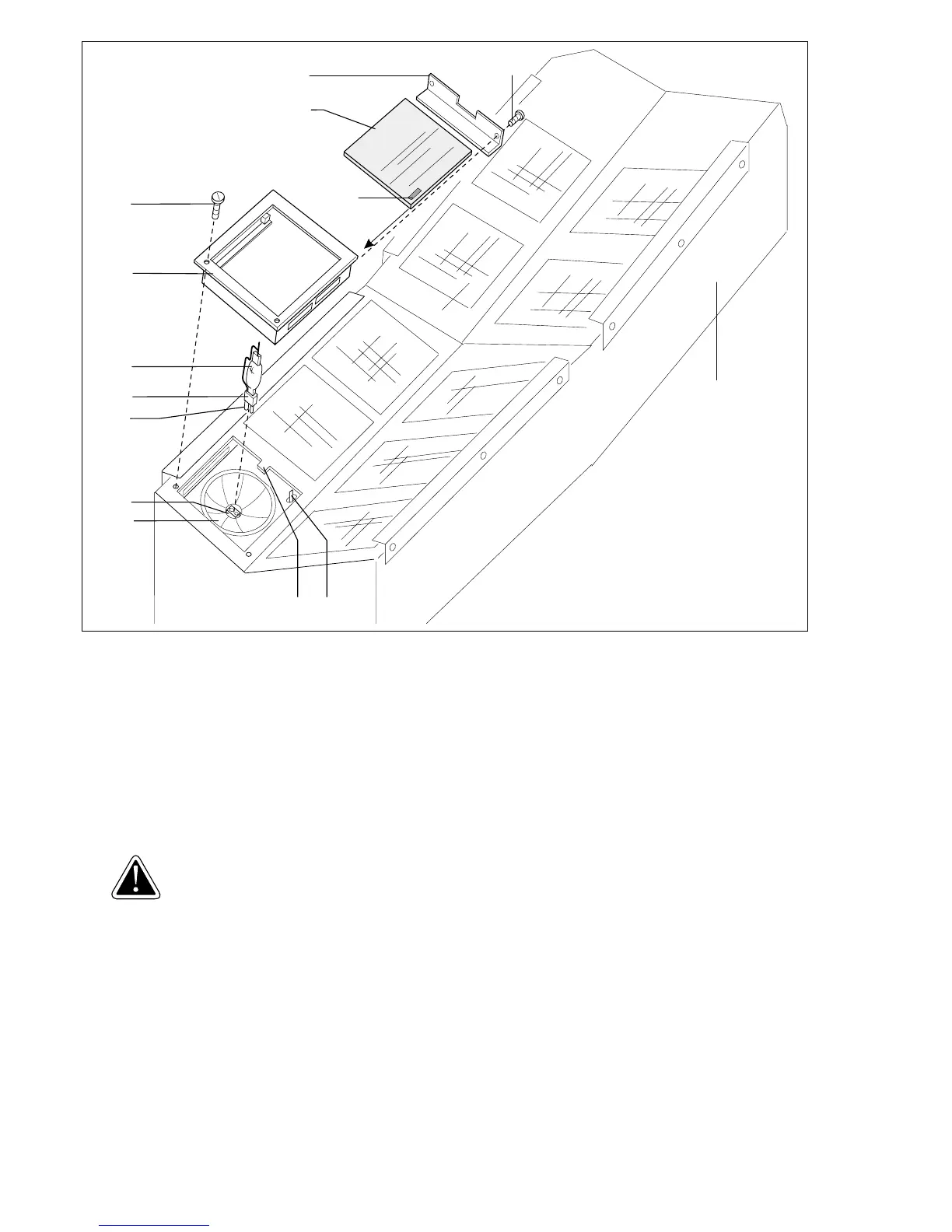

Exchanging of the high pressure burner in the lounger (picture 7)
Take down the acrylic sheet (1) according to the above detailed description. Unscrew the two oval-head and self-
tapping screws (74) out of the disk support (75). Disassemble the disk support by lifting the disk support on the side
showing to the foot, and then pull it out into that direction. The high pressure burner (76) is now opening accessible.
Hold the high pressure lamp by the rectangular base (102) and press it out of the socket (77).
• Cleaning the Reflector
Clean the reflector (87) with a clean cloth soaked in alcohol.
• Fitting the High Pressure lamp
Hold the new high pressure lamp by the base (102).
Insert the lamp into the holder (77).
Attention: The contact pins (79) of the socket have different diameters.
Please insert accordingly.
Cleaning the filter disk
Turn the two oval-head and self tapping screw (74) out of the disk support (75).
Take away the covering plate (98).
Pull out the XTT filter disk (72).
Clean the filter disk with warm water. The water may contain a little detergent.
Dry the filter disk with a clean cloth.
Installing the filter disk
The lounger must not be used without the XTT filter disk.
The coated side of the XTT filter disk must face the lamp.
It must be possible to read the little number (35, picture 7) of the filter disk if you stand in front of the light casing (6).
87
77
76
75
74
98
72
96 97
35
100
6
102
79
