Fatal1ty Z270 - Page 30

26
27
English

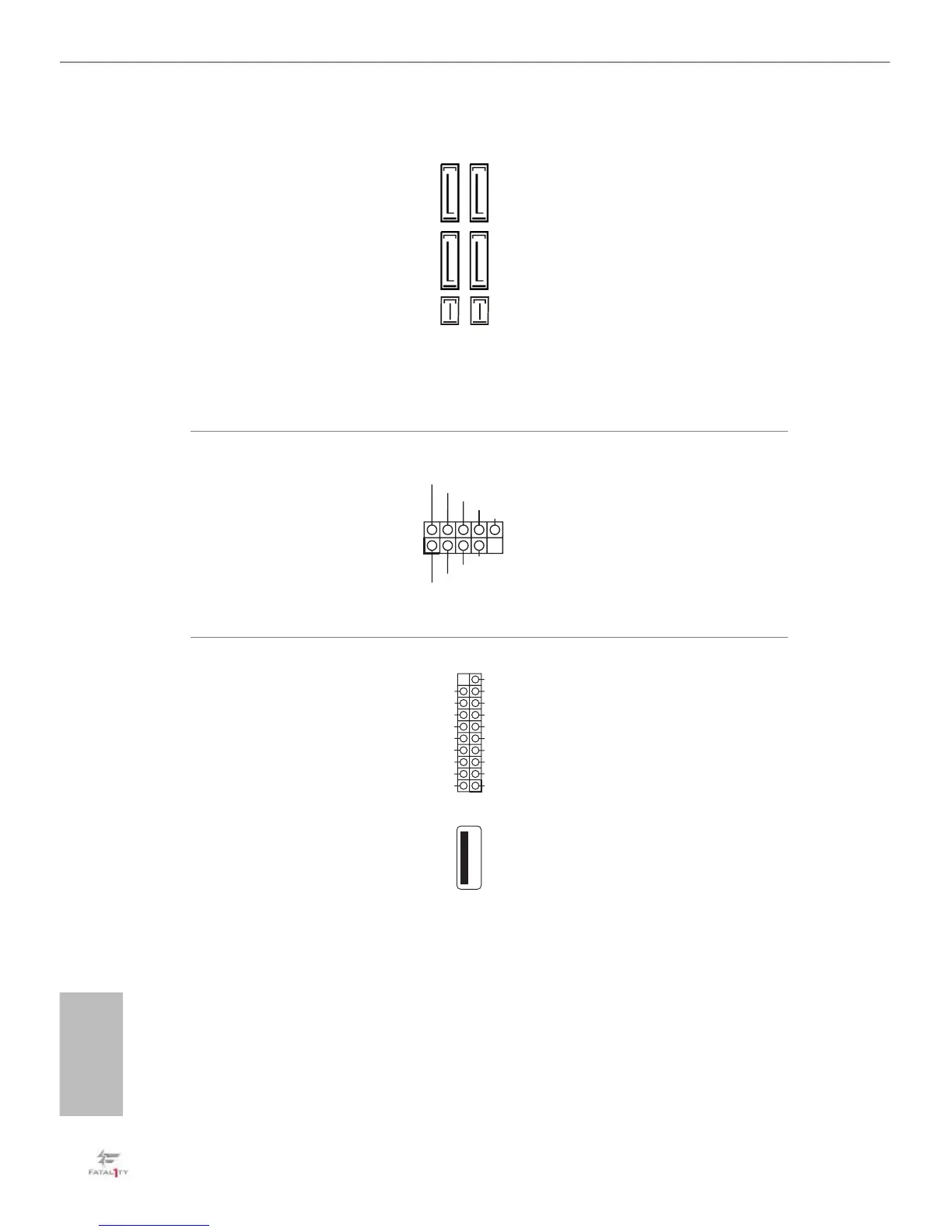

Serial ATA Express
Connectors
(SATA_EXP_0_1:
see p.1, No. 13)
Please connect either
SATA or PCIe storage
devices to these
connectors.
USB 2.0 Headers
(9-pin USB_11_12)
(see p.1, No. 25)
(9-pin USB_13_14)
(see p.1, No. 24)
(9-pin USB_15_16)
(see p.1, No. 23)
ere are three USB
2.0 headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Headers
(19-pin USB3_6_7)
(see p.1, No. 10)
(19-pin USB3_8_9)
(see p.1, No. 11)
(USB_9)
(see p.1, No. 9)
Besides four USB 3.0 ports
on the I/O panel, there
are two headers and one
port on this motherboard.
Each USB 3.0 header can
support two ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA_EXP_0 SATA_EXP_1
SATA3_0SATA3_1 SATA3_2SATA3_3
