FATEK M Series User Manual

Chapter 8 Positioning control and interpolation
1-17
M-Series PLC Motion User Manual
8-4 Description of Multi-axis Interpolation
M-PLC positioning control is composed by Linear Interpolation, Arc Interpolation and Spiral
Interpolation modes.
The Linear Interpolation provides maximum 4-axis linear interpolation control.
The Arc Interpolation provides maximum 2-axis arc interpolation control.
The Spiral Interpolation provides maximum 3-axis spiral interpolation control.
Listed below is the classification of action mode:
Interpolation Mode
Linear Interpolation
Arc Interpolation
Spiral Interpolation
Control System
Position control
Position control
Position control
Coordinates System
Absolute / relative
Absolute / relative
Absolute / relative
Action Mode
Absolute linear position
Relative linear position
Absolute arc position
Relative arc position
Absolute spiral position
Relative spiral position
The master axis is the control axis, and the slave axis will move with the position of the main axis. In
the spiral mode, the slave axis 1 is fixed for arc, and the slave axis 2 is fixed for vertical movement.

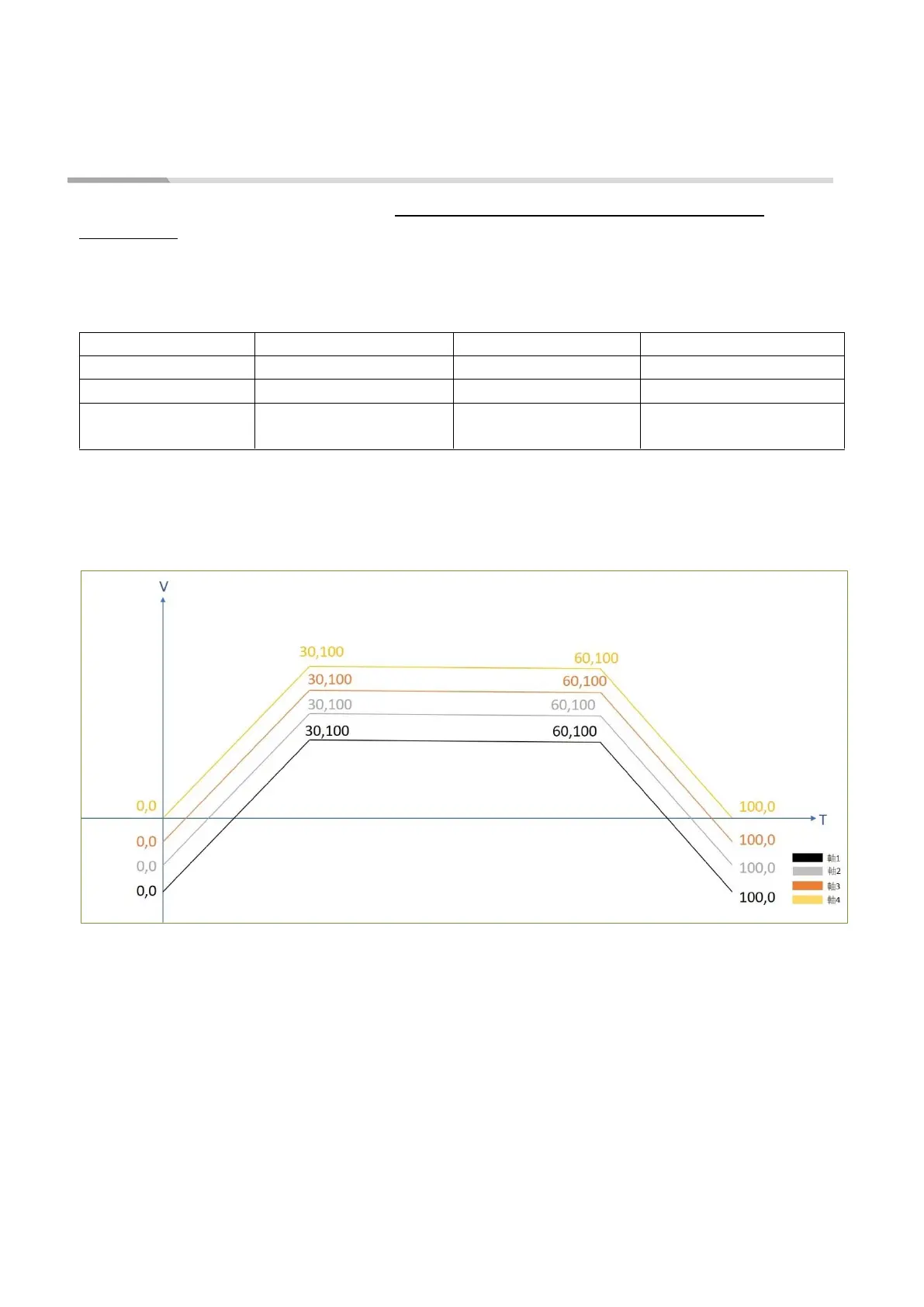

Under Linear Interpolation Mode, it allows the system to execute single linear action on 4 axes.
