FATEK M Series User Manual

Chapter 15 Synchronous Control, Flying Cut
1-17
M-Series PLC Motion User Manual
15-4 Synchronous Cam Setting

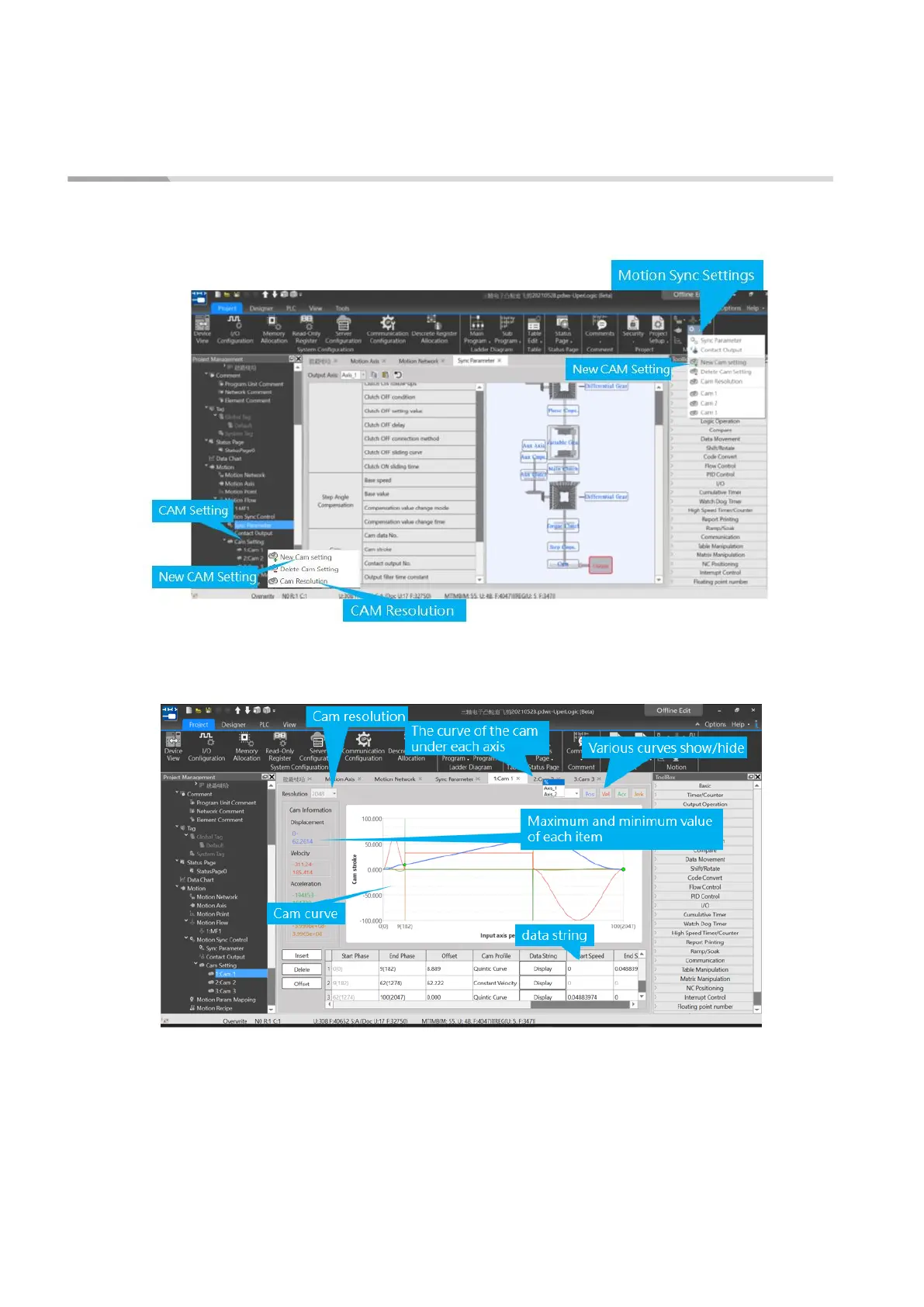

Please use UperLogic to set the Synchronous Cam. Indicated below is the software homepage after
opening the project and it also introduces the Synchronous Cam related functions and setting.
To set the Cam in the homepage, press the mouse right key and click Add New Cam and then the
resulting Cam curve will be indicated as in the figure below.
Cam resolution: The resolution of Cam curve. The higher the resolution, the smoother the curve.
Based on the point and the Cam profile set by the user, the software will calculate the position of
each resolution. Listed below is the relationship of Cam resolution and maximum Cam number. The
lower the Cam maximum number, the better the Cam resolution; on the contrary, the higher the Cam
maximum number, the lower the Cam resolution.
