Declaration of Conformity
Fazer 777 is classified in PKWiU (Polish Classification of Products and Services) under the number 33.20.43-
59.00.
Fazer 777 has been designed in accordance with the standard PN-EN 6101-1 and complies with the
provisions of the Directive 73/23/EEC dated 19 February 1972 as amended by 93/68/EEC. This Directive
applies to safety of devices up to 1,000V.
Basic modes of operations
Fazer 777 operates in one of the four basic modes: PHASE, CONT, VOLT and DETECTION. In the PHASE
mode, Fazer 777 uses the operator's body as electric earth, and in the CONT and VOLT modes Fazer 777
uses the skin's conduction. Thus, good contact between a hand and the contact is advisable. In order to
improve this contact you can slightly moisten your fingers before performing a measurement in the CONT and
VOLT modes. When performing a measurement in the DETECTION mode, you should keep pressing the
DETECTION button for the whole duration of the measurement.

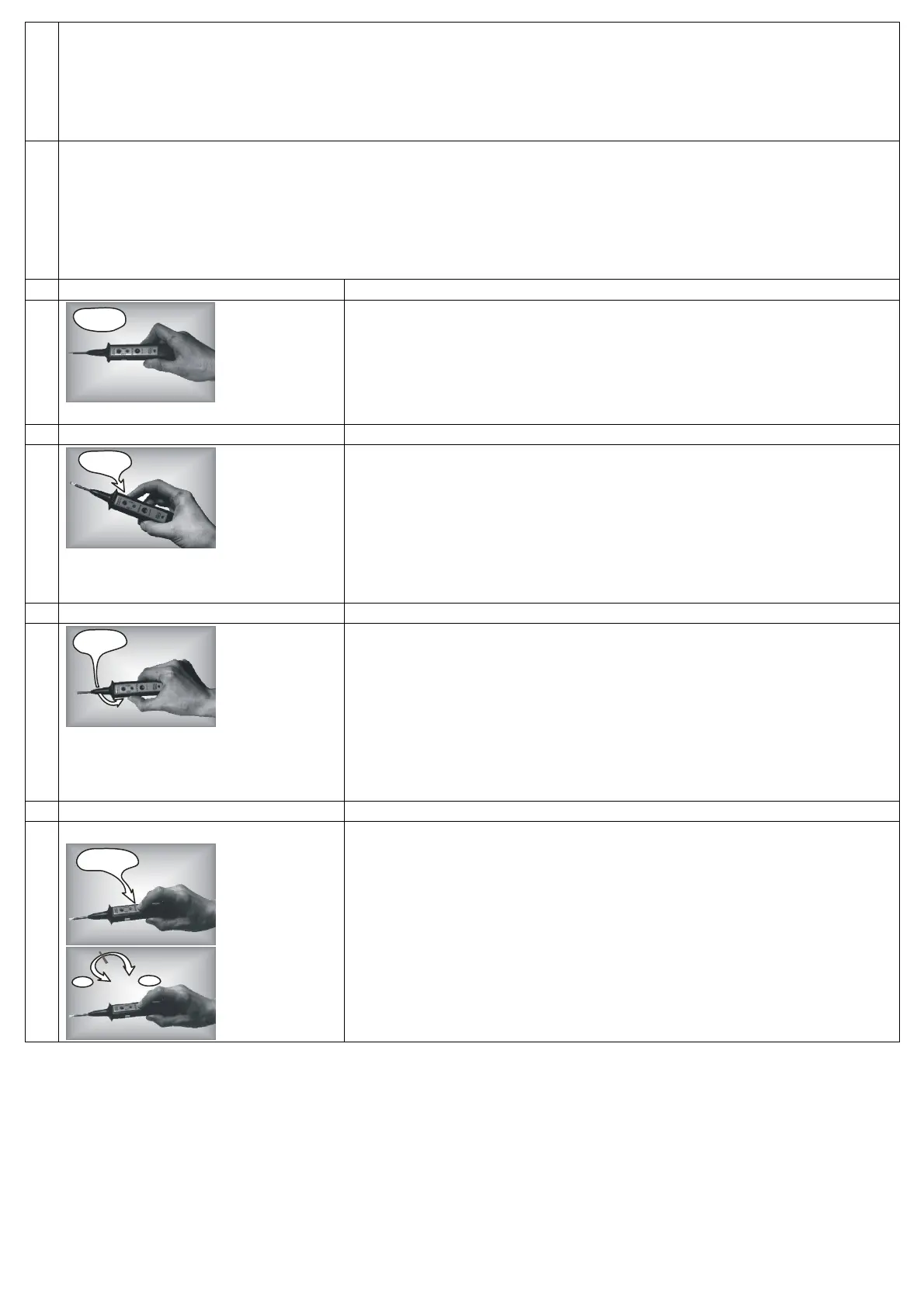

do not touch the contacts, do not touch any contacts
ALTERNATING VOLTAGE PHASE INDICATOR Grab the Fazer's
body. Do not touch the metal contacts. Do not press the DETECTION
switch. Voltage "PHASE" will be indicated by a red LED (visual signal)
and by a buzzer sound modulated with the frequency of detected
voltage (e.g. 50Hz). Note: Sometimes Fazer may indicate voltage in
case of a non-live wire but one that is located near another live wire.
CONDUCTION CONTINUITY INDICATOR. FAZER 777 differentiates
between non-conduction and conduction at approx 1 MΩ. Press the
CONT contact. The measurement pin and the operator's second hand
should touch measurement points of a tested object. Conduction is
signalled by the red LED going ON and a continuous buzzer sound.
Note: In the CONT mode the measurement should be performed with
the power supply switched OFF, since induced voltage makes correct
indication impossible.
"-" DIRECT VOLTAGE INDICATOR. Fazer detects voltage and
polarization of direct voltage with the value bigger than 2.5 V. Press the
VOLT contact. The measurement pin indicates positive voltage in
relation to the VOLT contact. Therefore, the operator's second hand
should be connected to the voltage negative pole. For instance, the
battery's or power supply plug's "-" contact, or the body of a device,
where one can find negative ground. If there is "+" voltage on the pin,
Fazer will react by lighting up the visual indicator and emitting
continuous buzzer sound.
press the "DETECTION" button
przycis nąć
DETE CTION
min
ma x
NON-CONTACT "~" VOLTAGE DETECTION. Fazer 777 enables non-
contact detection of 220V powered wires. Keep pressing the
DETECTION button during the detection process. The green LED
signals Fazer's readiness to detect voltage. If voltage is detected, the
red LED goes ON and the buzzer starts emitting sound. Signals are
proportional to the level of detected voltage. If the detection sensitivity
knob (at the bottom side of Fazer) is set to its "max" position, Fazer will
react without voltage. By turning the knob down you increase the
indication precision. Note: In the DETECTION mode Fazer will not
detect voltage behind screened surfaces; e.g. behind metals grids,
some kinds of wall panels or under wet plaster work.
